NH300 Portable Colorimeter

Perfect Partner for Color Measurement NH300

NH300 series portable computer colorimeter adopts the core multi-channel color sensor of international imported brand, more stable lC platform and efficient and accurate algorithm to provide users with accurate and fast color management and application.

Key Highlights

8°/ d optical geometry
Automatic black and white calibration function when power on;
LAB XYZ Color Space
Φ8mm aperture;
2.8-inch TFT screen for easy operation
Reliable repeatability (ΔEab ≤0.07) and Inter-instrument agreement (ΔEab ≤0.4)
Large storage capacity, Apprx. 20,000 data;
PC-side software realizes more function expansion

NH300 Portable Colorimeter Instructions Operating Manual NH300 Portable Colorimeter PDF

This NH300 Instrument are Certified with

1 Years Warranty (Additional support period of 3 years)

Product Comparison

High-End Brand of Domestic Colorimeter

NH300 is a mainstream brand colorimeter introduced by 3nh which has synthesized the advantages of ten more traditional imported colorimeters and has experienced ten thousands tests and applied many innovative technologies. Accurate, Stable, Exquisite and Affordable!

The Preferred Solution for Color Quality Control Management

NH300 high-quality portable colorimeter has adopted multi-channel color sensors of international brands, more stable IC platform as well as efficient and accurate algorithms to provide users with accurate and fast color management and application. NH300 is also designed with ergonomics and humanized operation and it has applied for a number of patents. NH300 is a multifunctional colorimeter with high quality and competitive price. 3nh insists on independent research whose technology innovation is unique in color management field. NH300 is the most convenient colorimeter for users.

1. Leading Humanity Design and Convenient Operation

Auto White and Black Calibration at Startup
Structure Design in line with Ergonomics

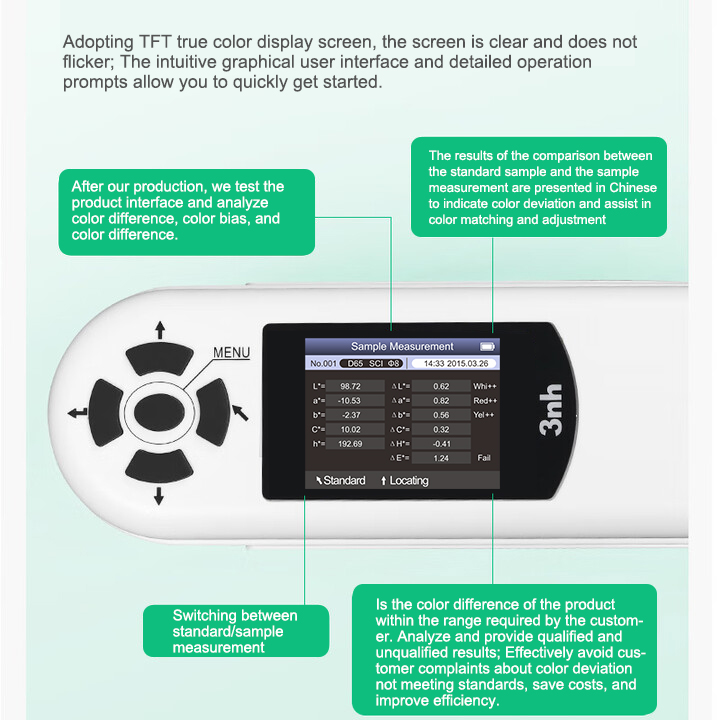

Easy-to-use Operation Interface

Leading Humanity Design and Convenient Operation

2. Stable Measurement Performance

The average fluctuation of △E is less than 0.07, actually more in 0.03~0.06.
Portable structure design which is more conductive to keeping the instrument stable when using.

Stable Measurement Performance

3. Convenient and Fast Locating

Illumination locating is a fast, simple and convenient locating function which is the original function by 3nh.

Convenient and Fast Locating

4. PC Software—Realize More Function Expansion

3nh has the intellectual property of PC software. The corresponding software serial number and
password protection are configured in 3nh colorimeter.
Be able to perform color difference analysis, color difference cumulative analysis, chromaticity index, color sample database management, simulating object color, etc.

PC Software—Realize More Function Expansion

5. Advanced Power Management Design

3nh is the first enterprise using high capacity Li-ion battery in colorimeter.
3nh Li-ion battery can be repeatedly charged which will save cost. Meanwhile, it can measure more than

3000 times on one charge to ensure the stability of long time measurement.

Functional Features

	NH300	NH310
Illuminating/Viewing Geometry	8/d	8/d
Measuring Aperture	Φ8mm	Φ8mm/Φ4mm
Detector	Silicon photoelectric diode	Silicon photoelectric diode
Color Space	CIELabCh* CIELab*	CIELabCh* CIELab* CIEXYZ CIERGB CIELuv* CIELCh Yellowness & Whiteness Color Fastness
Color Difference Formula	△Eab △Lab △EC*h	△Eab △Lab △ECh* △ECIE94 △Ehunter
Light Source	D65	D65 D50 A
Light Source Device	LED blue light excitation	LED blue light excitation
Errors Between Each Equipment	≤0.40ΔE*ab	≤0.40ΔE*ab
Storage	100pcs standards 20000pcs samples	100pcs standards 20000pcs samples
Repeatability	Standard deviation within ΔE*ab 0.07 Average of 30 measurements of standard white plate	Standard deviation within ΔE*ab 0.06 Average of 30 measurements of standard white plate
Weight	500g	500g
Dimension	205×70×100 mm	205×70×100 mm
Power source	Rechargeable lithium-ion battery 3.7V@3200mAh	Rechargeable lithium-ion battery 3.7V@3200mAh
Lamp Life	5 years, more than 1.6 million measurements	5 years, more than 1.6 million measurements
Charging Time	2 hours (first time 8 hours--100% electricity)	2 hours (first time 8 hours--100% electricity)
Measurement Times Before Recharging	More than 3000 times	More than 3000 times
Operating Temperature/Humidity Range	-10~40℃, relative humidity 0~85% with no condensation	-10~40℃, relative humidity 0~85% with no condensation
Data Interface	USB	USB
Extended Aperture (optional)	-	Φ8mm extended aperture, available for measuring concave surface
Printer (optional)	Miniature thermal printer	Miniature thermal printer

12 Quality Inspection Processes

With 12 rigorous quality inspection processes in place, we ensure a high yield rate of up to 98% for batch processed precision parts.

DFM Analysis

Dimensional Tolerance

Material Testing

CNC Machining

FQC Detection

SPC / CPK

Problem Found

Problem Solving

OQC Detection

Surface Treatment

Full Inspection

Package

Our Valued Clients

FAQs About Colorimeter

The repeatability is an important parameter for the accuracy of the colorimeter. Threenh Technology portable colorimeter for color measurements tandard deviation ΔE*ab is within 0.03 (Measurement condition: the average value of 30 measurements on the white board at an interval of 3s after calibration). Each colorimeter can pass the qualified inspection before leaving the factory to ensure it conforms to the standard of China Metrology Institute.

Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.

Always a pre-production sample before mass production; Always final Inspection before shipment;

Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification.

At most of time, we have stock in the factory. Generally it is 1-3 working days after the payment confirmed. After shipped, we will email you the tracking number. You can check the shipping status of your order on the website. If you are in urgent need, we can consider making special arrangement for you.
