Precision Color Analysis with ST10 Spectrocolorimeter

The ST10 Spectrocolorimeter is a high-precision color measurement tool designed for professional applications. Equipped with advanced spectroscopy technology, it accurately analyzes and captures color data across various materials, ensuring consistency in industries like printing, textiles, and design.

Key Highlights

D/8 optical geometry (diffused illumination with an 8 - degree viewing angle)
Φ8MM/φ10mm platform measuring aperture
Repeatability ΔE*ab≤0.05
Inter-instrument Error ΔE*ab≤0.4
Silicon photodiode array sensor
CIE LAB, XYZ, Yxy, LCh, CIE LUV, s - RGB, βxy, and DIN Lab99.
Widely used in industries such as plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics, etc., for color difference quality control
3.5-inch TFT color LCD, Capacitive Touch Screen

ST10 spectrocolorimeter Instructions Operating Manual ST10 spectrocolorimeter PDF

This ST10 Instrument are Certified with

1 Years Warranty (Additional support period of 3 years)

ST10 Spectrocolorimeter: Where Advanced Technology Meets Effortless Color Calibration

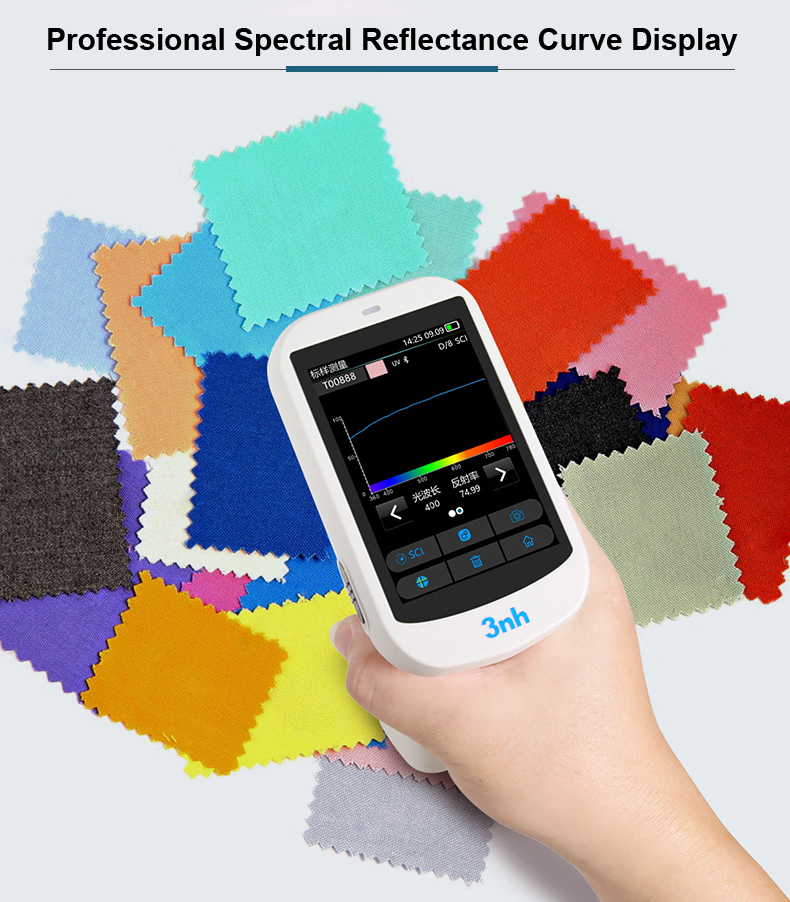

ST10 is a new portable spectrocolorimeter with 3nh own core research and development technology. The Ultimate Tool for Ultra-Accurate Color Measurement & Quality Control.

It is easy to use and can be measured with one click. It uses a built-in large area silicon photodiode array sensor. It has excellent repeatability and inter-station difference, the measured data are steady, accurate and reliable.

ST10 spectrocolorimeter with Φ8MM/φ10mm platform measuring aperture, in plastic electronics, paint coating, textile printing and dyeing, printing paper products, automotive, medical, cosmetics and food industries, scientific research institutions, laboratories are widely used.

Characteristics of the array spectrocolorimeter ST10

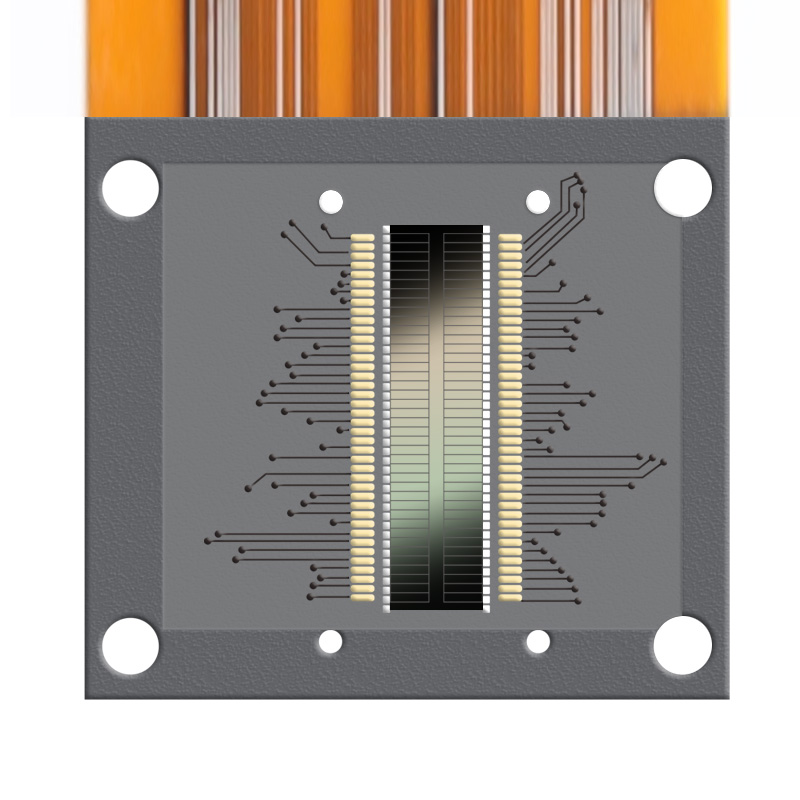

Silicon photodiode array sensor

The larger array sensor, the stronger light will not be saturated, the lower light sensitivity is higher and the wider spectrum response range, has guaranteed the instrument measurement speed, the accuracy, the stability and the consistency, grasps the core technology, with the same platform of international standards, achieve perfect compatibility.

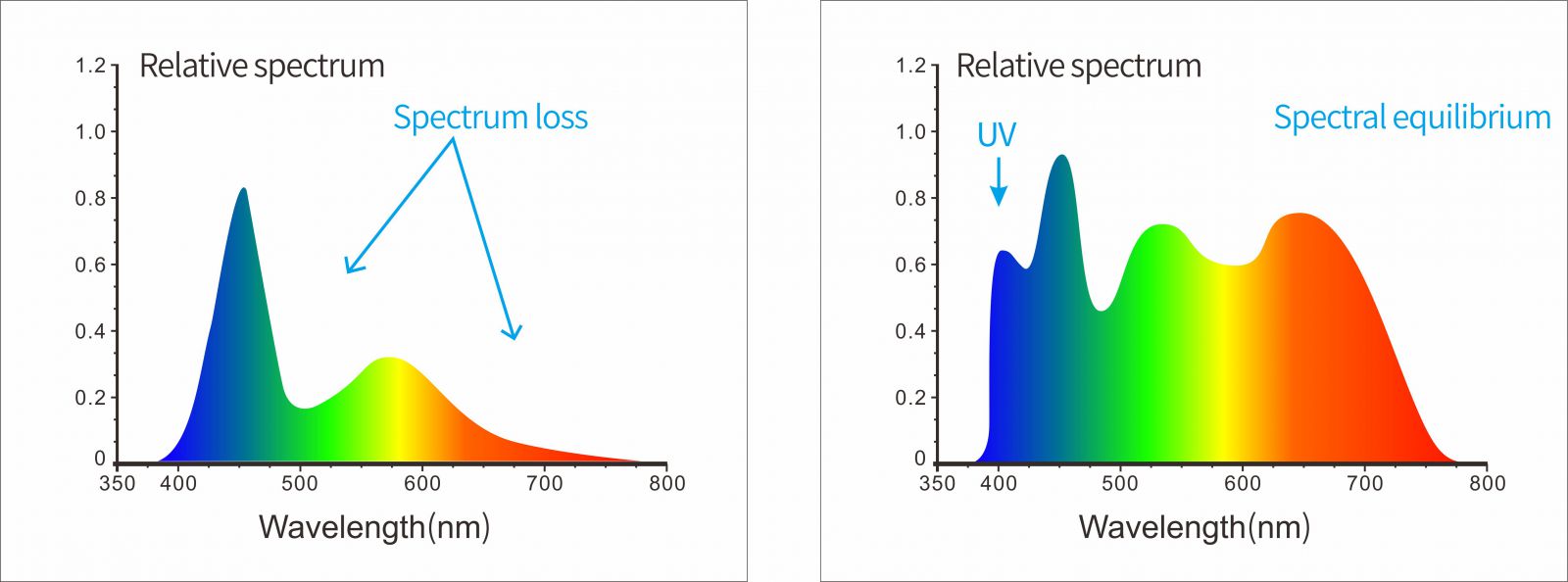

Adopt full waveband balanced LED light source

ST10 spectrocolorimeter adopts 400 ~ 700nm full waveband balanced LED light source as the illumination light source, which has enough spectrum distribution in the visible light range and avoids the loss of the spectrum of white LED in the specific wave band.

Grating splitting technology

The use of plane grating spectroscopy technology, with a higher resolution, so that more accurate color measurement.

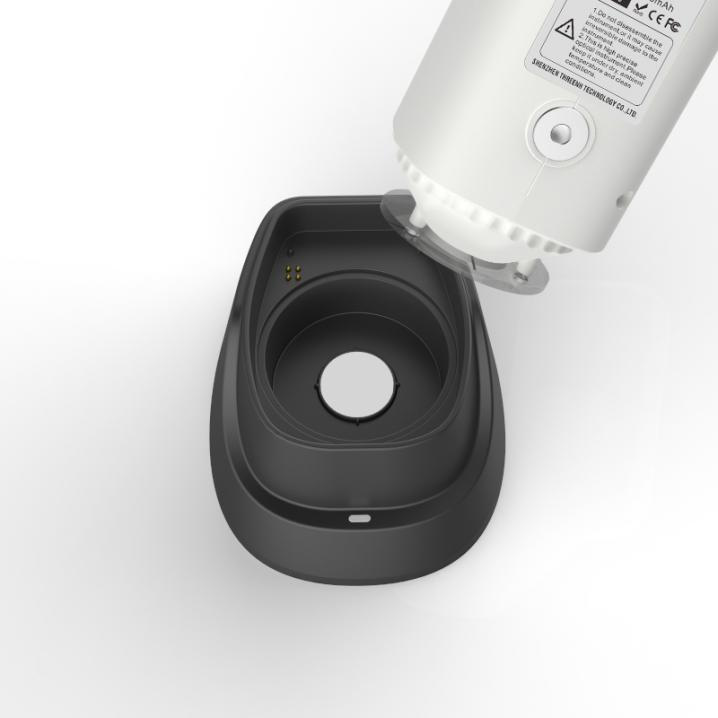

Intelligent base, automatic calibration

It is equipped with intelligent calibration base, can carry out automatic white board calibration, professional grade standard white board reflectivity R% ≥95% , good surface uniformity, high stability, can obtain repeated accurate data.

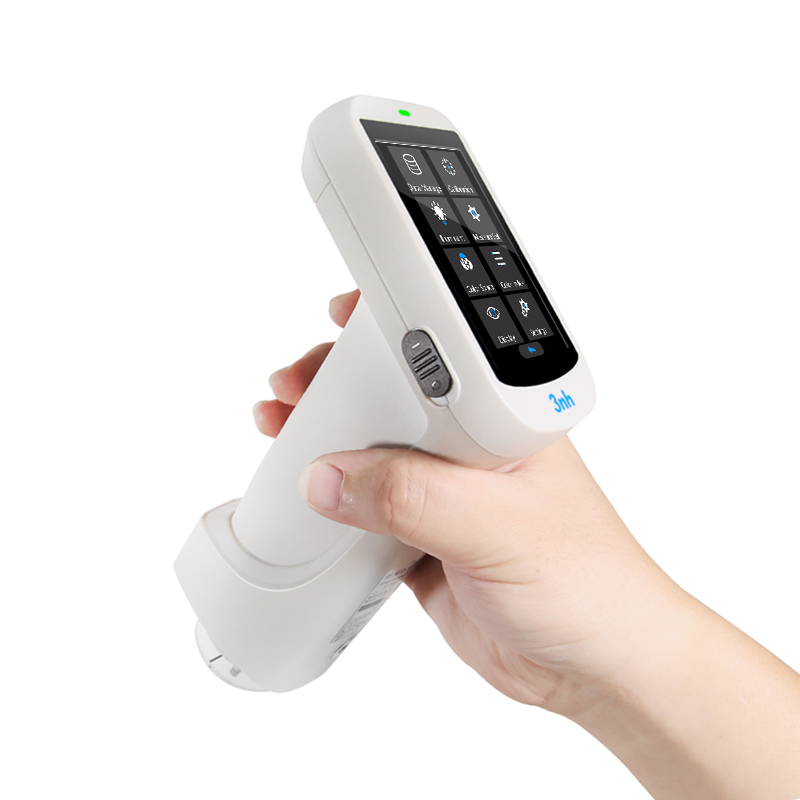

New fashion appearance design based on ergonomics

The hand-held position and the position of the measuring button are carefully designed to meet different holding habits, smooth and fine surface, derived from the professional appearance treatment technology.

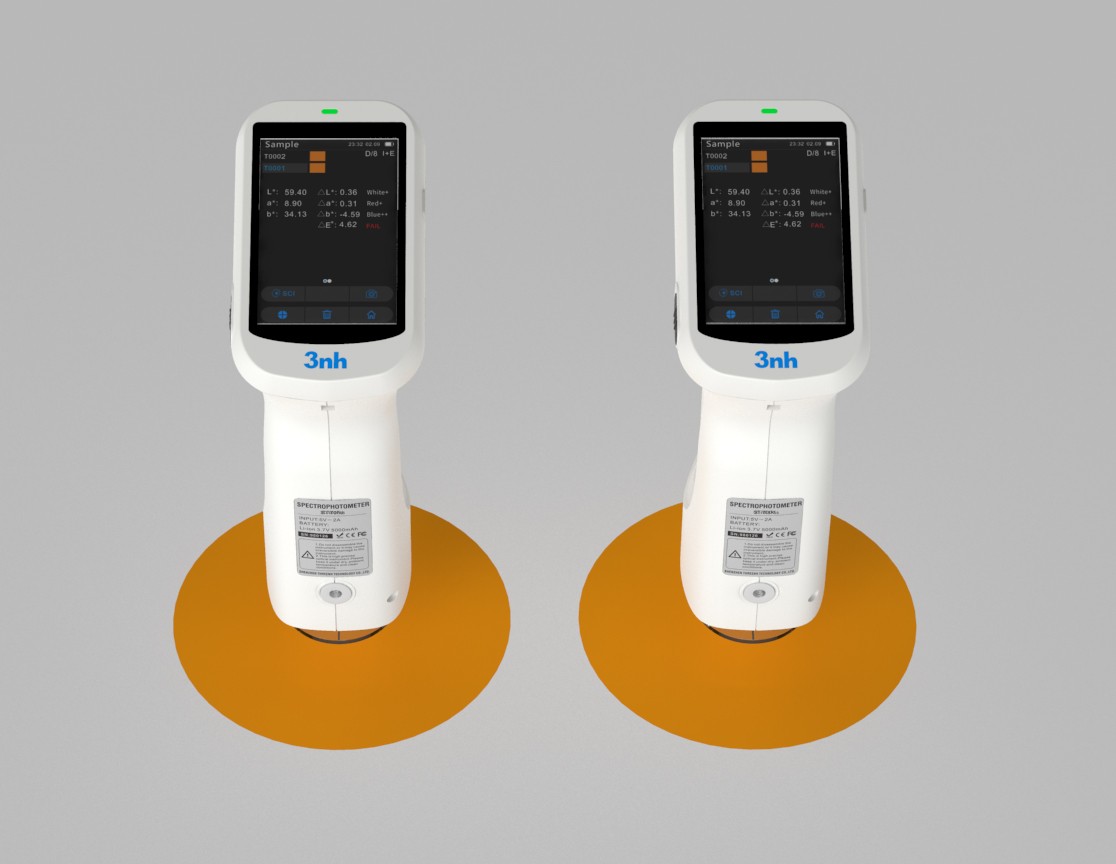

Excellent interstation and repeatability

The repeatability ΔE * ab ≤0.05, the Inter-instrument Error ΔE * AB ≤0.4 data is stable and reliable, which ensures the consistency of the data measured by multiple devices, and can be used for color matching and accurate color transfer.

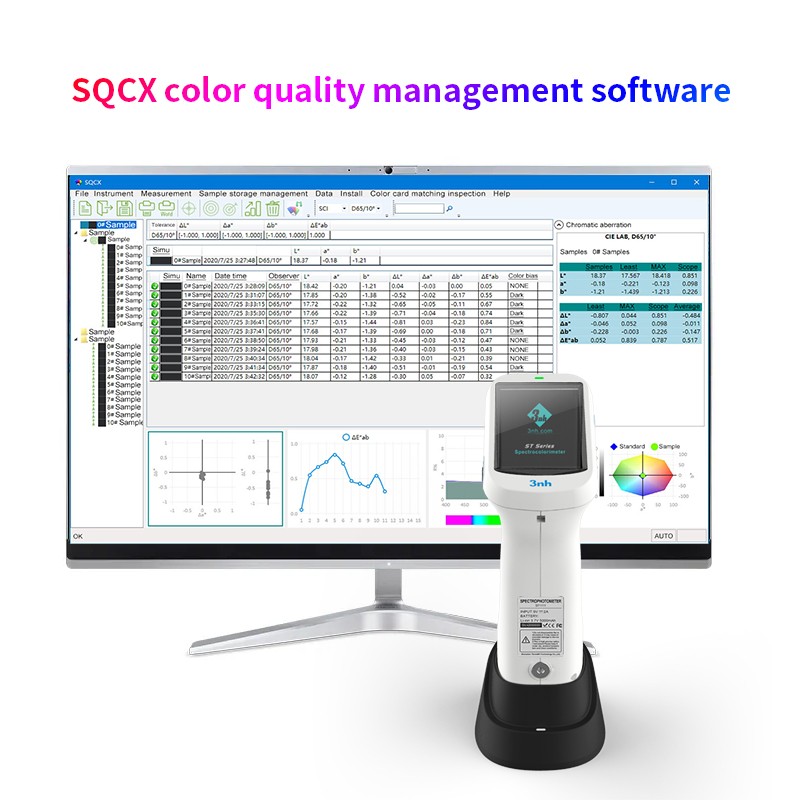

Color management software

The array spectrocolorimeter ST10 is equipped with SQCX software, which is suitable for quality monitoring and color data management in various industries. The user's color management data, compare color differences, generate test reports, provide a variety of color space measurement data, customized customer color management.

Need additional support?

Visit our FAQ section for more info or contact us to get help from our support team.

ST10 technical parameters of the spectrocolorimeter

Product name

ST10 spectrocolorimeter

Optical Geometry

D/8(diffused illumination, 8-degree viewing angle)

Specular Component

SCI Including the specular reflection of light

Meet The Criteria

CIE NO.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7

Repeatability*

ΔE*ab≤0.05

Inter-instrument Error**

ΔE*ab≤0.4

Displayed Accuracy

0.01

Measuring/Illuminating Aperture***

Dual Apertures：Φ8MM/φ10mm platform + Φ8MM/φ10mm tip

Measurement Indicators

Spectral reflectivity, CIE-Lab, CIE-LCh, HunteLab, CIE-Luv, XYZ, Yxy, RGB, chromatic aberration (ΔE * ab, ΔE * CMC, ΔE * 94, ΔE * 00) , whiteness (ASTM E313-00, ASTM E313-73, CIE/ISO, AATCC, Hunter, Taube Berger Stensby) , yellows (ASTM D1925, ASTM E313-00, ASTM E313-73) ,staining fastness, color-changing fastness, etc. (some of the indicators were achieved by PC)

Illuminant

D65,A,C,D50,F2,F7,F11

Displayed Data

Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset

Light Source

Combined full spectrum LED light source

Locating Method

Stability film, visual

Calibration

Intelligent automatic calibration (Contact Type)

Observer Angle

2°，10°

Integrating Sphere Size

40mm

Spectrophotometric Mode

Flat Grating

Sensors

Large-area silicon photodiode array ( double-row 20 group)

Wavelength Interval

10nm

Wavelength Range

400-700nm

Measured Reflectance Range

0-200%

Reflectivity resolution

0.01%

Measurement Mode

Single Measurement, Average Measurement(2-99times)

Measuring Time

About 1s

Size

L * W * H=114 X 70 X 208mm

Weight

About 435g（Calibration block not included）

Battery

Li-ion battery, 8500 measurements within 8 hours

Illuminant Life Span

10 years, more than 1.5 million times measurements

Display

3.5-inch TFT color LCD, Capacitive Touch Screen

Data Port

USB

Data Shorage

Standard 500 Pcs, Sample 10000 Pcs, Mass storage on PC side

Software Support

Windows

Language

Simplified Chinese, English, Traditional Chinese

Operating Environment

0~40℃, 0~85%RH (no condensing), Altitude < 2000m

Storage Environment

-20~50℃, 0~85%RH (no condensing)

Standard Accessory

Power Adapter, USB Cable, User Guide, PC Software(Download from office website), White and Black Calibration Cavity, Protective Cover, Wrist strap, 8mm flat aperture, 4mm tip aperture

Optional Accessory

USB Micro Printer, Powder Test Box

Notes：
* 30 standard deviations of the whiteboard were measured at a 5-second interval after whiteboard calibration;
** BCRA Series II 12-panel measurement average;
*** The illumination aperture is the actual aperture size of the instrument;
If there are any changes to the above parameters, without prior notice.
