YG60S 60°Economic Gloss Meter

60 Degree Measuring Angle Affordable Gloss Meter

3NH offers portable YS60S glossmeters with highest precision for any gloss level and industry application. With independent intellectual property, manufactured according to international standard ISO2813 and China standard GB/T 9754. it can meet the second grade requirements of JJG696.


Key Highlights

  • Suitable for surface measurement with Medium Gloss

  • 60 degree micro hole precision glossiness measurement

  • Display 5 sets of measurement data

  • Ergonomic Design

  • Basic glossiness testing requirements

  • Connect to PC, more extend functions

This YG60S Instrument are Certified with
certify
1 Years Warranty (Additional support period of 3 years)

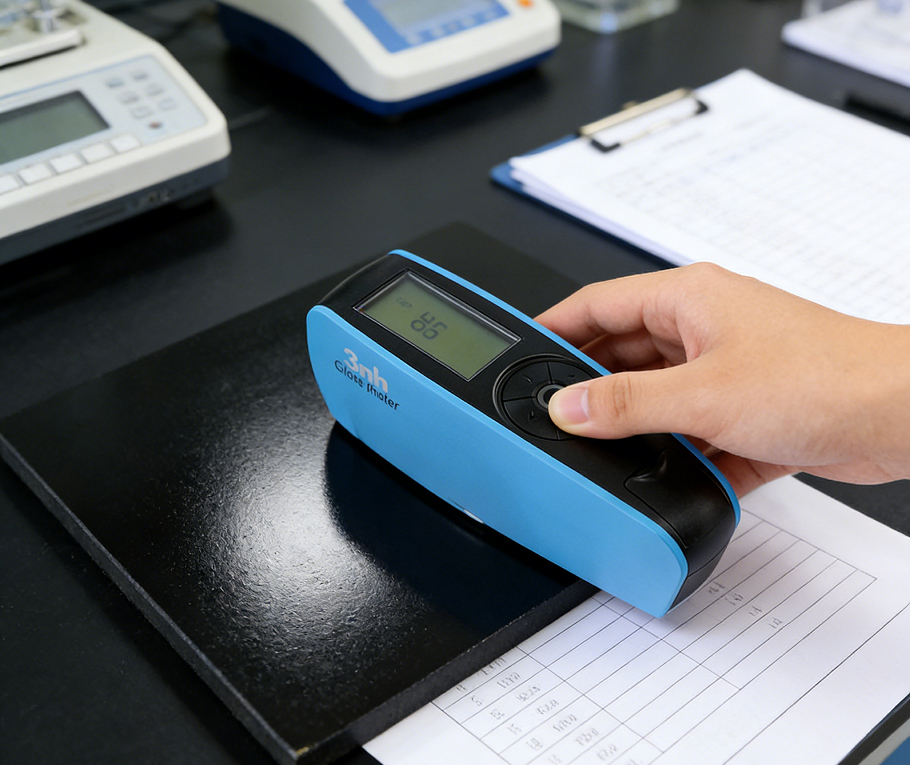

ys60s_gloss_measurement

YG60S 60°Economic Gloss Meter is independently developed by Shenzhen 3nh Technology Co., Ltd with independent intellectual property, manufactured according to international standard ISO2813 and China standard GB/T 9754.  it can meet the second grade requirements of JJG696.

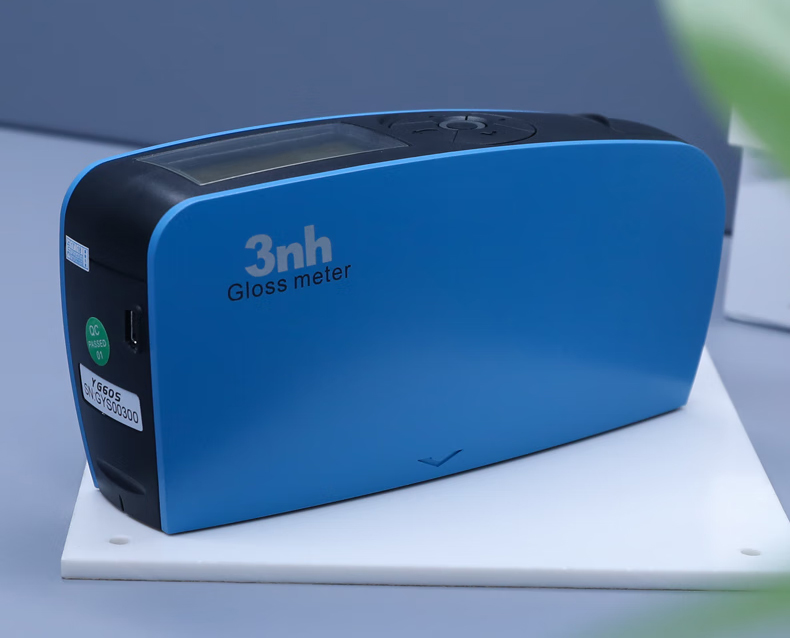

high_quality_gloss_meter_ys60s

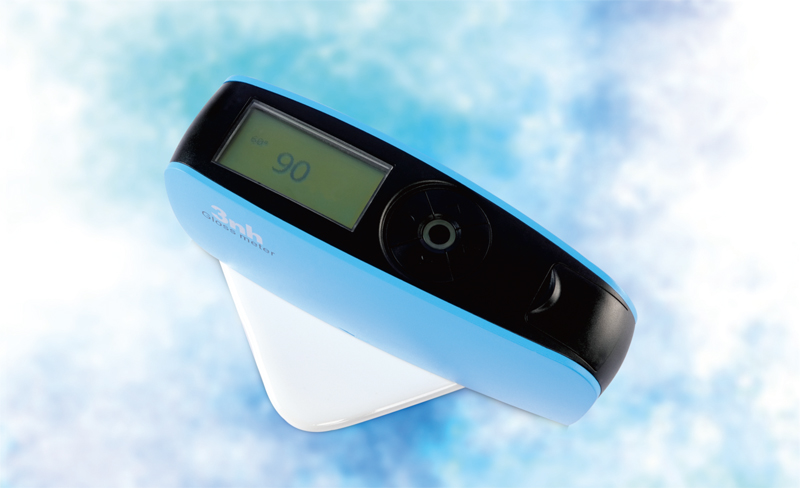

60 degree measuring angle_gloss_meter1


Features:


1. Elegant Design combined with aesthetics and ergonomics;
2. Meet the second grade requirements of JJG696;
3. Auto Power-off within optional 30-120 seconds;
4. Comply to ISO2813, ASTM523, GB/T9754;


Application:


Widely used in the filed of paints, coating, plastics, ink, rubber, printing, paper, glass, handware, ceramic, marble etc. This type of gloss meter with the best performance. The accuracy and reliability of the YG60S micro-gloss has been proven by thousands of customers.

YS60S_APPLICATIONS


Specifications:


ModelYG60S 60°Economic Gloss Meter
Measuring Angle60°
Measuring Area60°: 0-200GU
Division Value1GU
Measuring ModesBasic mode
Measuring Time0.5S
Repeatability0~100GU : ±0.5GU; 100~2000GU : ±0.5%GU
AccurateConform with JJG696 second grade requirements of gloss meter
Auto Power-off Time30s
Long-time Calibration/
LanguageChinese & English
Storage/
Display2.3 inch white and black screen
Size160*52*84mm
WeightAbout 300g
Power Supply1pc dry-cell battery(can measure 10000 times) or use USB Charge
InterfaceUSB
PC Software/
Operation Temperature Range0-40℃(32-104° F)
Storage Temperature Range-20-50℃(-4-122° F)
Humidity Range< 85% RH, without condensation

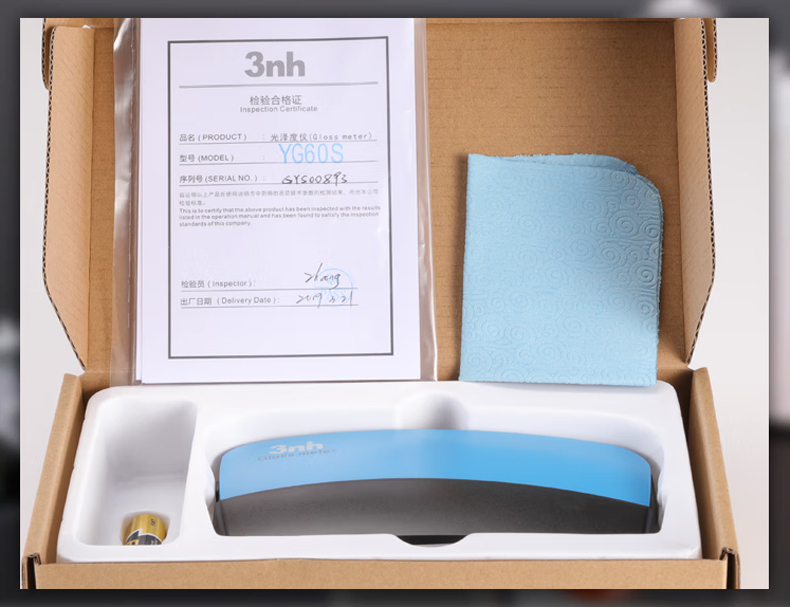

Standard AccessoriesUser manual, calibration plate
Optional AccessoriesMiniature printer
Notification: the technical parameter is only for reference



Our Valued Clients

FAQs About YG60S Gloss meter

Gloss level is the extent of reflectance of light on a surface. It measures the shininess or dullness of a finish, from flat or matte to high gloss. It is important in aesthetic, functional, and quality control applications.


Depending on the scale of the manufacturer, its matte, low-sheen finish can be called gloss level 3. Overall, gloss levels in certain standards go between 1 (flat) to 7 (high gloss). Level 3 is considered low-gloss or satin-like.


The gloss scale is normally measured against the scale of 0 to 100 gloss units (GU). The scale is zero at matte and 100 at a mirror. Other very smooth surfaces can be over 100 GU at lower angles, such as 20°.


 A gloss meter measures the amount of light reflected from a surface at a specific angle. It's commonly used to assess surface finishes such as paint, coatings, plastics, and paper for consistency, quality control, and visual appearance evaluation.


A paint gloss meter is used to measure the level of paint gloss, whereby it reflects light at some angles, such as 20°, 60°, or 85° angles, and measures the intensity of that light. To measure surface sheen, the level of gloss is compared to standards that are calibrated and reported in units of gloss (GU).
