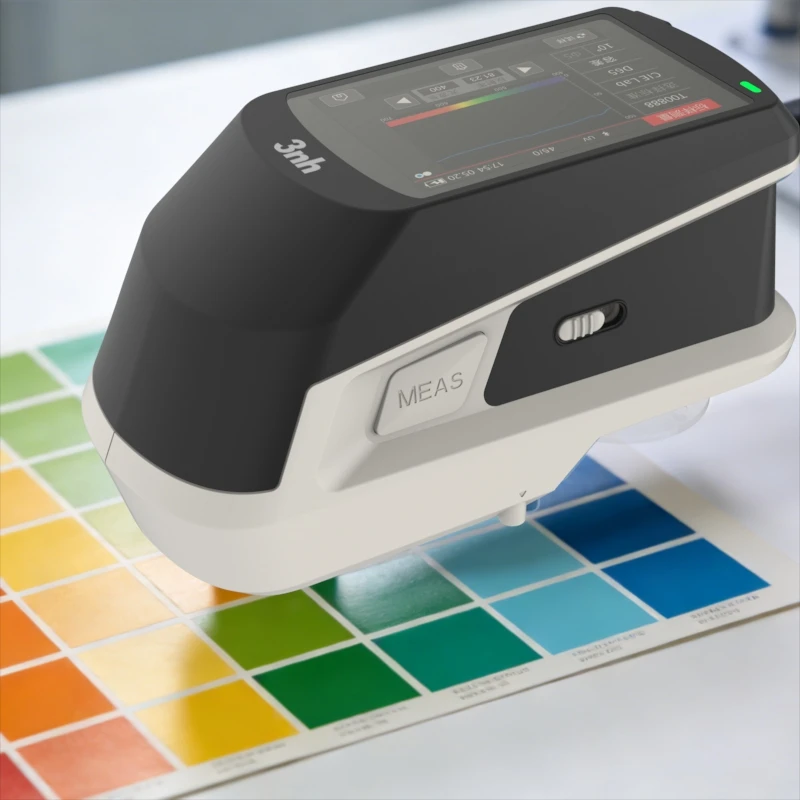

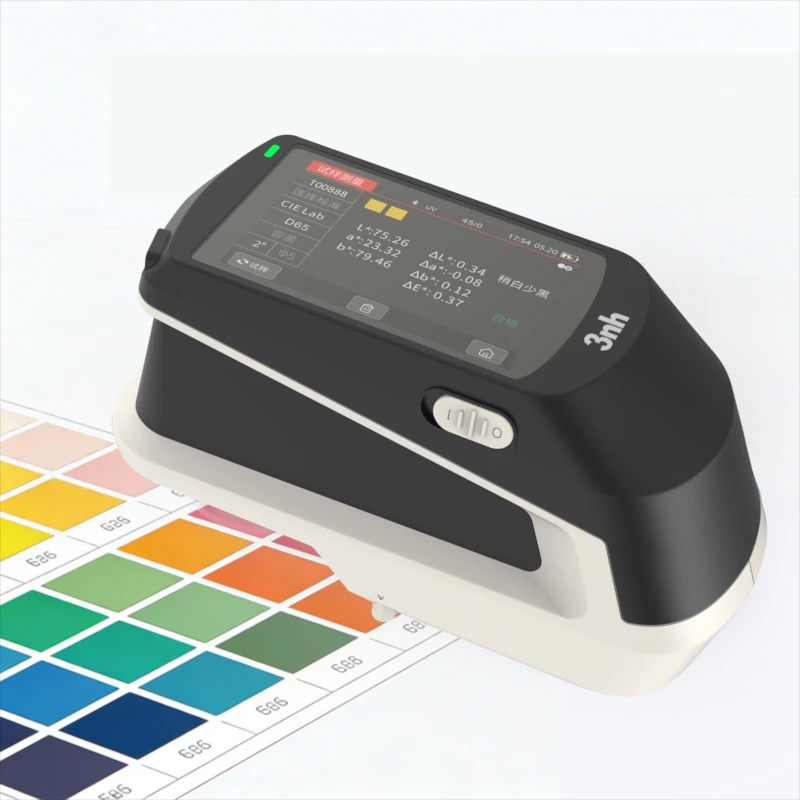

TS-26C Spectrophotometer Machine

Enhanced Laboratory‑Grade Grating Spectrophotometer

TS-26C horizontal spectrophotometer built around industry‑trusted 45/0 circular uniform illumination geometry, it delivers measurement results closely matching human visual perception and minimizes interference from textured, grainy surfaces


Key Highlights

  • Optical Geometry: 45/0 circular uniform illumination geometry;

  • 7 interchangeable apertures (12 mm,11 mm,10 mm,6 mm,5 mm,3 mm,1×3 mm);

  • Rich color spaces & color‑difference formulas;

  • Excellent repeatability: ΔE*ab ≤0.018;

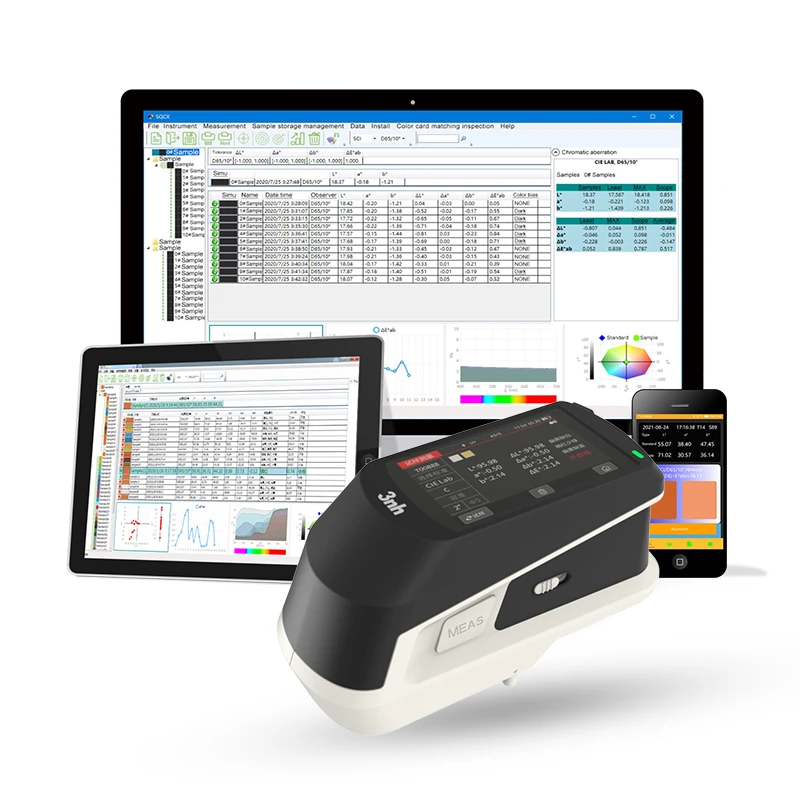

  • full‑featured PC color‑management software supported;

  • Widely applied in plastics, paints & coatings, ink, ceramic, traffic‑safety material laboratory R&D and incoming‑batch QC;

TS-26C Spectrophotometer Machine Instructions Operating Manual TS-26C Spectrophotometer Machine PDF
This TS-26C Spectrophotometer Machine Instrument are Certified with
certify
1 Years Warranty (Additional support period of 3 years)

3nh TS-26C spectrophotometer is an enhanced laboratory-grade spectrophotometer independently developed by 3nh, specifically designed for high-precision color analysis and transmission scenarios. It adopts the internationally recognized 45/0 optical structure and incorporates a high-performance optical system, achieving rapid and accurate measurements within the 400–700nm spectral range. The product is equipped with seven measurement apertures to flexibly adapt to samples of different sizes and shapes, and has the capability to measure fluorescent samples. It also meets the requirements for measuring the luminance factor and chromaticity coordinates of traffic signs, markings, and reflective films. It includes GB 2893 and GB/T 18833 standard colors and supports manually customized polygonal rectangle tolerances, providing professional solutions for color management across various industries.

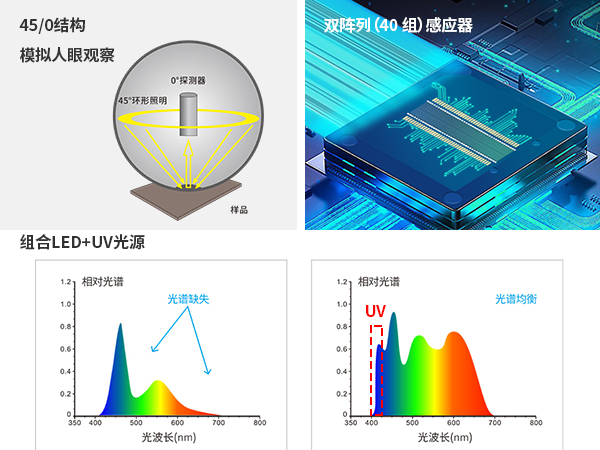

一、Precision Optical Measurement System

Optical geometry: The 45/0 illumination method (45° circular uniform illumination, 0° reception) is adopted, which complies with standards such as CIE No.15, GB/T 3978, and GB 2893 to ensure measurement standardization and data consistency.

Combined full-spectrum LED light source: It employs a combination of 400-700nm full-spectrum LED light source and UV light source, ensuring sufficient spectral distribution within the visible light range, avoiding spectral loss in specific wavelengths, preventing saturation under strong light, enhancing sensitivity under weak light, and allowing for easy measurement of fluorescent samples.

Silicon photodiode dual array (40 groups) sensor: Using larger area silicon photodiode array (40 groups in two rows) sensor effectively solves the problems of strong light saturation and weak light detection, ensuring the instrument's measurement speed and accuracy.

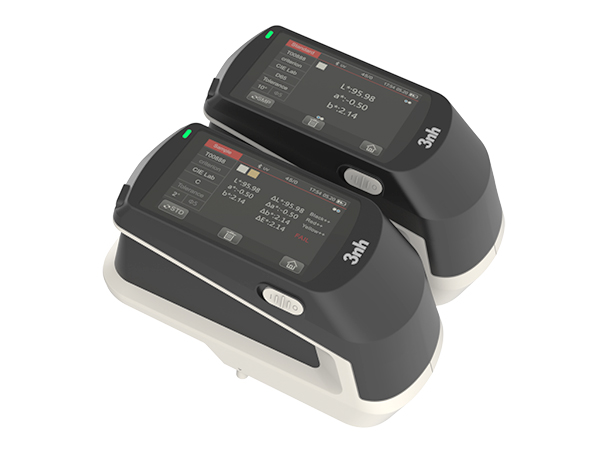

二、High-precision colorimetric control, inter-station difference ≤0.15


Repeatability accuracy：Within ΔE*ab 0.018，The repeatability accuracy of the instrument has reached a level that is difficult for similar products to match.

Inter-instrument Error: Within ΔE*ab 0.15，Ensure the measurement results from multiple devices are highly consistent.

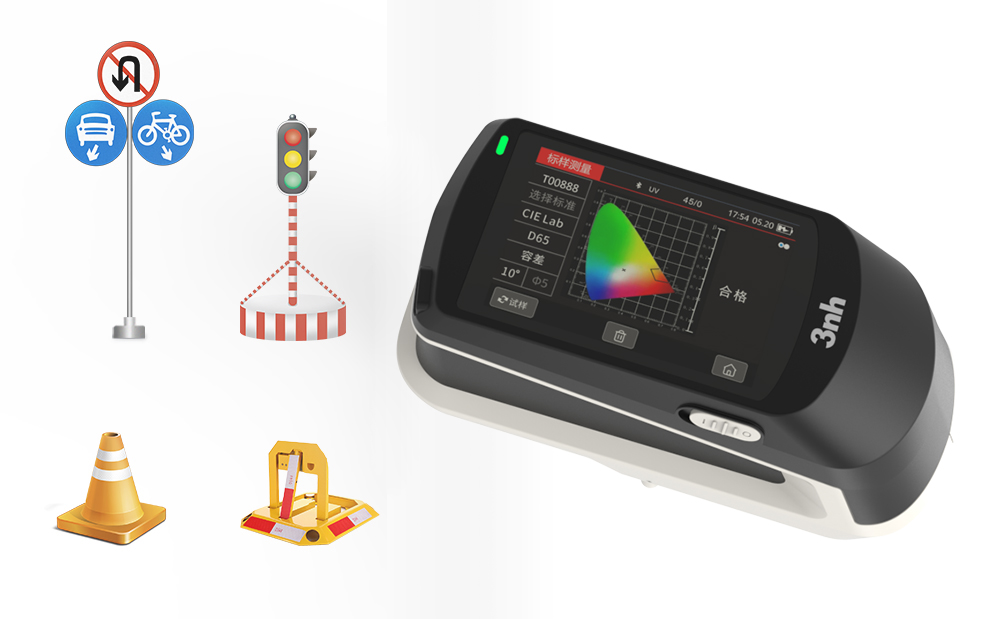

三、Dedicated Measurement Solutions for Traffic Signs /Markings /Reflective Sheets

It supports the measurement of luminance factor and chromaticity coordinates of traffic signs, markings, and reflective films, and is adapted to the strict requirements of the transportation industry for the consistency of road sign colors.

Built-in GB 2893 (safety colors) and GB/T 18833 (road traffic reflective film) standard colors, no need for additional import, and can manually customize polygonal rectangle tolerances to improve industry application efficiency.

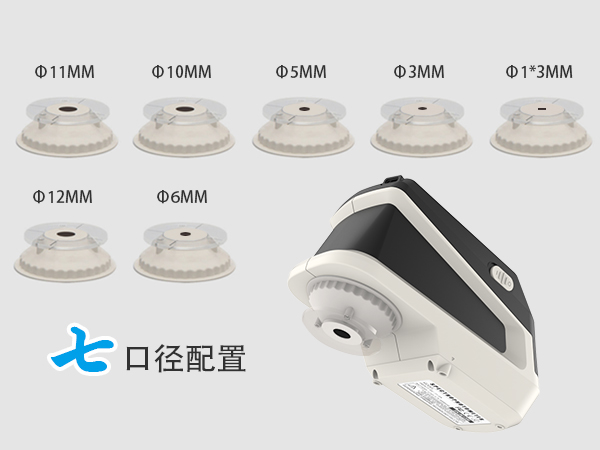

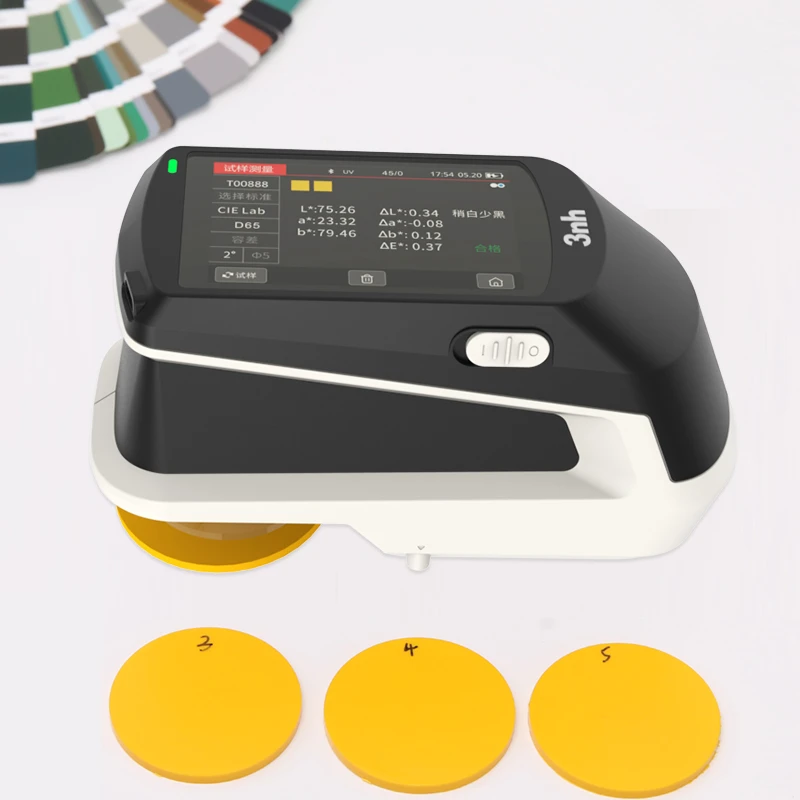

四、Seven-apertures precision, covering full-size samples

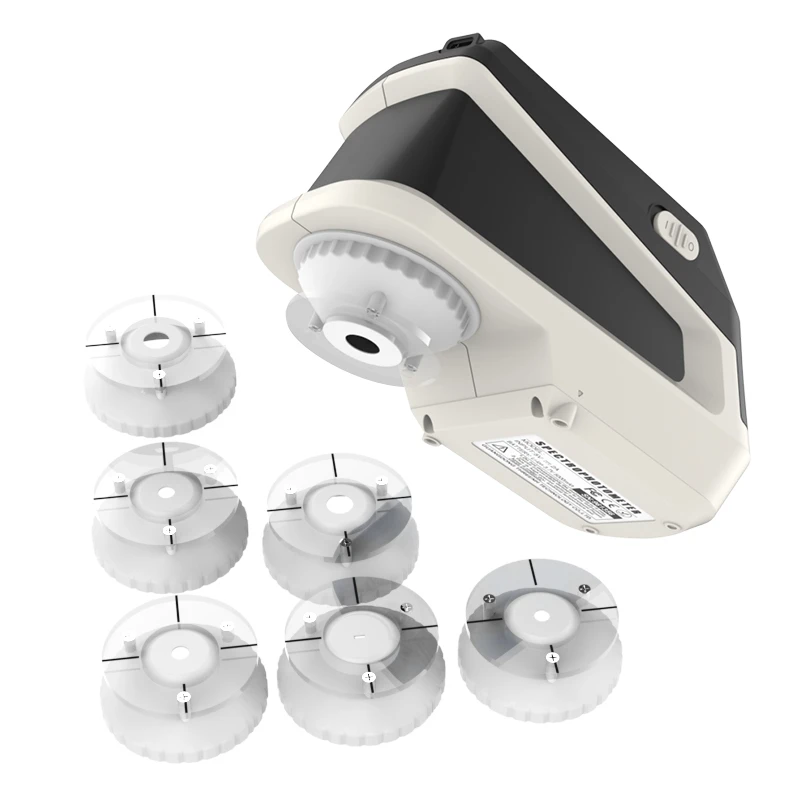

Provides seven measuring apertures (12mm、11mm、10mm、6mm、5mm、3mm、1*3mm platform)，It can be flexibly switched according to the sample size (such as small electronic components or large road signs) to adapt to diverse measurement scenarios.

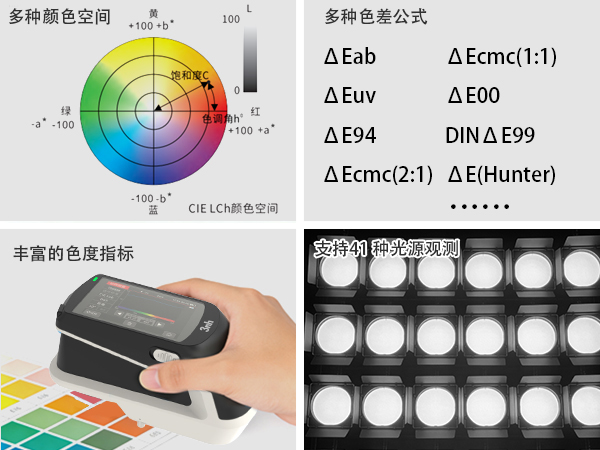

五、Comprehensive colorimetric analysis capability

Configure 10 color spaces: including CIE LAB、XYZ、Yxy、LCh、CIE LUV、s-RGB etc. It meets the color definition and analysis needs of different industries.

Supports 9 color difference formulas: including ΔEab、ΔEuv、ΔE94、ΔEcmc (2:1)、ΔE*00 etc, it can accurately quantify color differences and adapt to color difference judgment standards in different scenarios.

Rich colorimetric index: It supports measurements such as whiteness (WI), yellowness (YI), metamerism index (MI), blackness, and color density (CMYK), as well as staining fastness, color change fastness, force content, and opacity, covering the entire color evaluation process.

Supports observation of 41 light sources: including （D65、A、C、D50 etc，some are achieved through PC software）and 2°/10° view angle，It can simulate visual effects under different environments and meet the needs of color transmission across different scenarios.

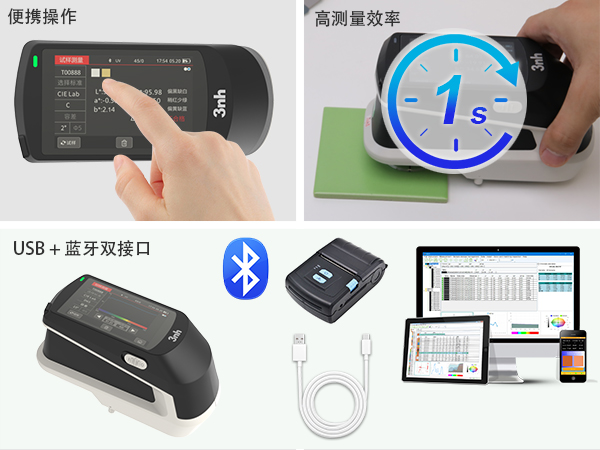

六、Convenient operation and data management

Convenient operation: Equipped with a 3.5-inch TFT true-color capacitive touchscreen, it can intuitively display spectrum/data, colorimetric values, color difference values/comparison charts, and pass/fail judgment results, making it easy to operate.

USB + Bluetooth dual interface：Support USB +Bluetooth，It can connect to computers and printers, and is compatible with Android/iOS/Windows systems and WeChat mini programs, making data transmission and report generation more flexible.

High measurement efficiency：A single measurement takes only about 1 second, and it supports the storage of 1,000 standard samples and 30,000 test samples, meeting the long-term data traceability needs of a large number of samples.

六、操作使用便捷 - 副本.jpg


Have Some Questions?


Need help selecting the right methodology and instruments for your measurement needs? Please complete the following fields and and our color experts will contact you promptly.

Talk to a Color Experts

Spectrocolorimeter


Model

TS-26C

Illumination

45/0(45 ring-shaped illumination, vertical viewing); Comply with CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7

Features

Enhanced spectrophotometer for precise color analysis and transmission in the laboratory;
Used for precise color measurement and quality control in industries such as plastics and electronics, paints and inks, textiles and clothing printing and dyeing, printing, and ceramics; it can also be used for fluorescent sample measurement.
It can be used to measure the luminance factor and chromaticity coordinates of traffic signs, markings, and reflective films. It includes GB 2893 and GB/T 18833 standard colors and allows manual customization of polygonal rectangle tolerances.

Light Source

Combined LED Light, UV Light

Spectral separation device

Flat Grating

Detector

Silicon photodiode array (dual array, 40 groups)

Wavelength Range

400~700nm

Wavelength Pitch

10nm

Half Bandwidth

10nm

Reflectance resolution

0.01%

Reflectance Range

0~200%

Measuring Aperture

7 aperture:12mm platform+11mm platform +10mm platform +6mm platform+5mm platform+3mm platform + 1*3mmplatform

Color Space

CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99,Munsell(C/2)

Color Difference Formula

ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter)

Other Colorimetric Index

WI(ASTM E313，CIE/ISO,AATCC,Hunter)，
YI(ASTM D1925，ASTM 313),
Metamerism Index MI，Blackness (My,dM)，Tint(ASTM E313-00)，Munsell(C/2)，
Staining Fastness, Color Fastness, Color Density CMYK,Opacity（Some functions are realized through PC software）

Observer Angle

2°/10°

Illuminant

D65,A,C,D50,D55,D75,F1,F2,F3,F4，F5，F6,F7,F8,F9，F10,F11,F12,CWF,DLF,TL83,TL84,TPL5,U30，B,U35,NBF,
ID50,ID65,LED-B1,LED-B2 ,LED-B3,LED-B4,LED-B5,LED-BH1 ,LED-RGB1,LED-V1,LED-V2 ,LED-C2,LED-C3,LED-C5,Light source can be customized (a total of 41 kinds of light sources, some of which are realized through the host computer/APP)

Display Data

Spectrogram/Values, Chromaticity Values, Color Difference Values/Graph, Pass/Fail Result, Color Offset

Measurement Time

About 1.5s

Display resolution

0.01

Repeatability

Spectral reflectance: MAV, Standard deviation within 0.07% (400 nm to 700 nm: within 0.2%)
Chromaticity value: MAV, within ΔE*ab 0.018 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)

Inter-instrument Error

MAV,Within ΔE*ab 0.15 (Average for 12 BCRA Series II color tiles)

Measurement mode

Single Measurement, Average Measurement(2-99)

Size(L*W*H)

169X73X87mm

Weight

About 446g

Battery power

Li-ion battery. 10000 measurements within 8 hours

Illuminant Life Span

5 years, more than 3 million times measurements

Display

3.5-inch TFT color LCD, Capacitive Touch Screen

Interface

USB, Bluetooth 5.0

Data memory

Standard 1000 Pcs, Sample 30000 Pcs

Language

Chinese Simplified, Chinese Traditional, English, Russian

Software

Andriod,iOS,Windows,WeChat Mini Program

Calibration

First Grade

Working Environment

Temperature: 0~40℃; Humidity: 0~85% (No Condensation);altitude: less than 2000 m

Storage Environment

Temperature: -20~50℃; Humidity: 0~85% (No Condensation)

Standard Accessory

Power Adapter, USB Cable, Built-in li-ion battery, User Manual, software(download from the website)White and Black Calibration Board, Protective Cover, Measuring Apertures

Optional Accessory

Micro Printer, Powder Test Box, Universal test components, Locating Plate

Note

Technical specifications are for reference only; the actual product sold shall prevail.



Our Valued Clients

  • Client jaquar
  • customer cubic logo
  • Client luminous
  • customer shakti
  • customer tatasky logo
  • Clients honda logo
  • customer pidilite logo
  • partner axa

FAQs About  Portable Spectrophotometers

Always a pre-production sample before mass production; Always final Inspection before shipment;

For premier glass quality grading (color, transmittance, haze, coating uniformity, architectural/auto/optical glass), the top 3nh & industry-leading instruments are:


1. 3nh YS6060 Benchtop (Best Lab Accuracy)

  • d/8° integrating sphere, 360–780nm, UV adjustable

  • Dual mode: reflectance + transmission

  • ΔE*ab ≤ 0.015, IIA ≤ 0.2, haze measurement

  • Multi-apertures (Φ4/8/15/25.4mm)

  • Ideal: colored glass, coated glass, optical glass, lab R&D


2. 3nh TS8560 Benchtop (Ultra-High Precision)

  • d/8° sphere, SCI/SCE, UV control

  • ΔE*ab ≤ 0.01 (repeatability)

  • Large transmission compartment

    Best for: high-end architectural glass, Low-E coated glass



3. 3nh ST70 Portable (Production/Field)

  • d/8° (SCI/SCE), ΔE*ab ≤ 0.02

  • Handheld, fast, non-destructive

    Best for: line checks, incoming glass, on-site grading



4. 3nh NS810 Portable (Cost-Effective)

  • 45/0 geometry, ΔE*ab ≤ 0.04

  • Touchscreen, rugged

  • Best for: solid-color glass, routine QC

Short Recommendation

  • Top lab: YS6060

  • Ultra-precision: TS8560

  • Portable production: ST70

  • Economical QC: NS810

All measure color consistency, transmittance, haze & coating uniformity for glass quality grading.


For professional paint matching (decorative, automotive, industrial, metallic/pearlescent), these are the top-performing spectrophotometers from 3nh — optimized for formulation, batch consistency, metamerism control, and field/shop matching:


1. 3nh YS6060 Premium Benchtop (Best Lab & Formulation)

  • d/8° sphere, SCI/SCE, UV control (360–780nm)

  • ΔE*ab ≤ 0.015, IIA ≤ 0.2 — ultra-precise for R&D

  • Multi-apertures (Φ4/8/15/25.4mm)

  • Transmission + reflection modes

  • Best for: Paint lab formulation, fluorescent pigments, color standardization

2. 3nh TS7700 Portable (Best On-Site / Production)

  • d/8° (SCI/SCE), ΔE*ab ≤ 0.02

  • Large Φ20mm aperture — averages texture/sheen

  • Fast, handheld, rugged

  • Best for: Paint store counters, job-site matching, production QC

3. 3nh MS3008 Multi-Angle (Metallic / Pearlescent Paints)

  • 8-angle measurement (15°/25°/45°/75°/110° + others)Threenh

  • For flip-flop, sparkle, pearlescent, metallic coatings

  • High stability for special-effect finishes

  • Best for: Automotive paint, powder coatings, metallic pigments, High-end industrial coatings, automotive OEM

4. 3nh YS3010 / YS3060 (Mid-Range Portable)

  • d/8°, SCI/SCE, UV adjustable

  • Interchangeable apertures (Φ4/8mm)

  • Bluetooth + USB

  • Best for: General paint store matching, routine QC

Short Best Recommendations

  • Lab formulation / R&D: 3nh YS6060

  • Portable on-site / paint store: 3nh TS7700

  • Metallic / pearlescent paint: 3nh MS3008

  • Entry-level portable: 3nh YS3010


All deliver stable spectral data, minimal metamerism, and perfect batch-to-batch consistency — critical for paint matching.


Colorimetry is a method that applies color intensity to ascertain the chemical concentrations. It is founded on Beer-Lambert Law, whereby the absorbance at a given wavelength is proportional to the concentration. It is popular in environmental and biochemical testing.

A spectrophotometer and colorimeter are certain instruments used by scientists to measure color by quantifying reflected or transmitted light. The results are presented in color spaces, such as L*a*b*, RGB, or XYZ. This enables the accuracy of comparison and tracking of the changes in color in chemical or material research.

Related Portable Spectrophotometers You May Also Like

TS7036 Precision Spectrocolorimeter

Measuring Equipment , Spectrocolorimeter

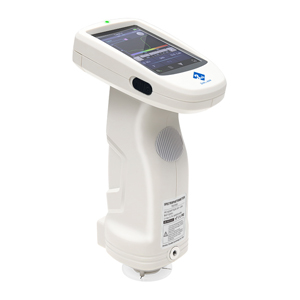

TS7700 Grating Spectrophotometer
