TS-25C Spectrophotometer

Accurately Captures the Colours

This revolutionary handheld color‑measurement tool from 3NH accurately captures the colour of surfaces and diverse materials, and delivers precise matches against any of thousands of colour standards stored in the instrument’s built‑in electronic colour‑card library.


Key Highlights

  • Optical Geometry: 45/0 circular uniform illumination geometry;

  • 5 interchangeable apertures (11 mm,10 mm,5 mm,3 mm,1×3 mm);

  • Rich color spaces & color‑difference formulas;

  • Very good repeatability: ΔE*ab ≤0.02;

  • full‑featured PC color‑management software supported;

  • Widely applied in plastics, paints & coatings, ink, ceramic, traffic‑safety material laboratory R&D and incoming‑batch QC;

TS-25C Spectrophotometer Instructions Operating Manual TS-25C Spectrophotometer PDF
This TS-25C Spectrophotometer Instrument are Certified with
certify
1 Years Warranty (Additional support period of 3 years)

3nh TS-25C spectrophotometer is a high-precision color management instrument for laboratories. With "accurate measurement + multi-scenario adaptation" as its core market positioning, it provides color analysis solutions for multiple industries. The TS-25C features a 45/0 optical structure and grating spectral technology to ensure measurement standardization and accuracy; it is equipped with 5 switchable measurement apertures to flexibly adapt to samples of different sizes; it also supports specialized detection of fluorescent samples, as well as measurement of luminance factor and chromaticity coordinates of traffic signs, markings, and reflective films. Built-in GB 2893 and GB/T 18833 standard colors, with manually customizable polygonal rectangle tolerances, it is used for color measurement and quality control needs in industries such as plastics and electronics, paints and inks, textiles and clothing printing and dyeing, printing, and ceramics, meeting the requirements of laboratory-level accurate color analysis and cross-scenario transmission.

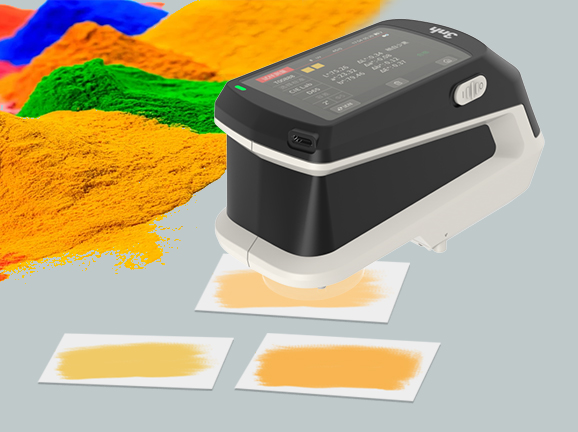

一、Fluorescent sample measurement, accurately capturing special colors

Using a 400-700nm full-spectrum LED light source + UV light source, it ensures a sufficient spectral distribution in the visible light range, avoids spectral gaps in specific wavelengths, does not saturate under strong light, is more sensitive under weak light, and can easily measure fluorescent samples.

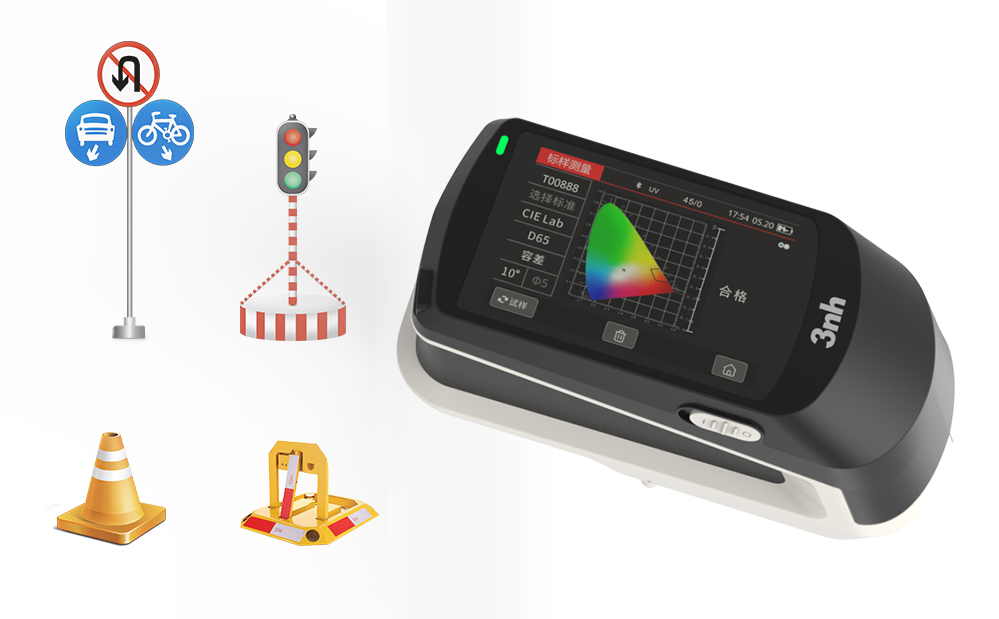

二、Traffic sign solutions that comply with national standards

Built-in GB 2893 and GB/T 18833 standard color libraries, it can directly measure luminance factor and chromaticity coordinates, and supports polygon/rectangle tolerance settings, making it suitable for compliance testing of safety color marks for traffic signs, reflective films, etc

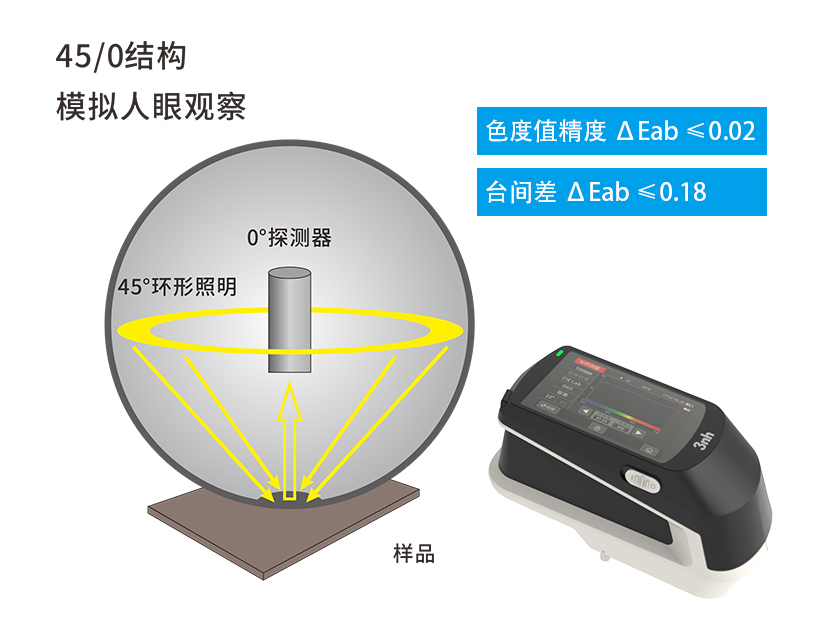

三、High-precision optical design ensures measurement accuracy.

Professional optics geometrical : 45/0 (45 ring-shaped illumination, vertical viewing) geometrical optics, conforms with CIE No.15、ISO7724-1、ASTM E1164 and so on international standards, High data authority

High precision and stability: Chromaticity value accuracy ΔEab ≤0.02, inter-device error ΔEab ≤0.18, ensuring data reliability and consistency across multiple devices.



四、Multi-light source and multi-scene adaptation

Supports 41 types of observation light sources: It supports 41 types of observation light sources (D65, A, CWF, LED series, etc.) to cover measurement needs under different light source conditions.

Configure 9 color spaces: It supports 9 color space data, including CIE LAB, XYZ, Yxy, LCh, CIE LUV, s-RGB, HunterLab, DIN Lab99, and Munsell (C/2), eliminating the need for multiple measurements and improving quality control efficiency.。

Supports 10 color difference formulas: It has 10 built-in color difference formulas, including ΔEab, ΔEuv, ΔE94, ΔEcmc(2:1), ΔEcmc(1:1), and ΔE00, to meet the color difference evaluation standards of different industries and customers.

Rich colorimetric indicators: It supports multiple colorimetric indicators such as whiteness (WI), yellowness (YI), metamerism index (MI), blackness, color density (CMYK), opacity, staining fastness, and color change fastness, enabling full-dimensional color analysis.



五、Suitable for all industries, one machine for multiple uses

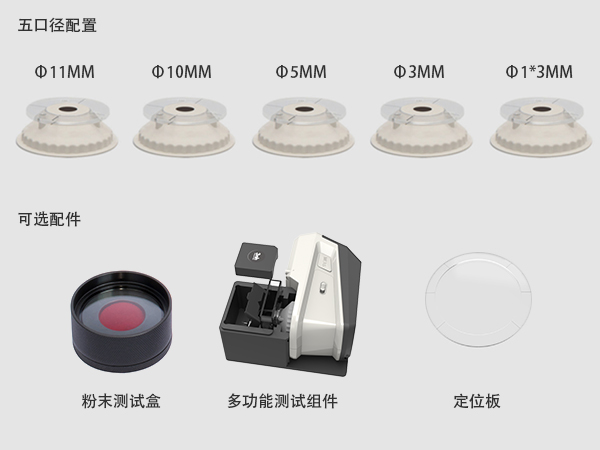

Multi-morphological sample compatibility: Equipped with five measuring apertures (11mm, 10mm, 5mm, 3mm, and 1*3mm platforms), and combined with optional powder test kits, multi-functional test components, and positioning plates, it can measure samples in different forms such as solids, powders, liquids, and pastes.

Application coverage across all industries: It is widely applicable to industries such as plastics and electronics, paints and inks, textiles and clothing printing and dyeing, printing, ceramics, traffic signs, and fluorescent materials, providing high-precision solutions for color quality management, production control, and scientific research and testing.



3nh: Your partner for reliable color measurement technology

3nh delivers reliable, precise color measurement instruments and professional solutions. As your trusted partner, we support industries with stable spectrophotometers, color difference meters and light boxes for consistent color control.


Have Some Questions?


Need help selecting the right methodology and instruments for your measurement needs? Please complete the following fields and and our color experts will contact you promptly.

Talk to a Color Experts

Spectrocolorimeter

Model

TS-25C

Illumination/Observation system

45/0(45 ring-shaped illumination, vertical viewing); Comply with CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7

Features

Enhanced spectrophotometer for precise color analysis and transmission in the laboratory;
Used for precise color measurement and quality control in industries such as plastics and electronics, paints and inks, textiles and clothing printing and dyeing, printing, and ceramics; it can also be used for fluorescent sample measurement.
It can be used to measure the luminance factor and chromaticity coordinates of traffic signs, markings, and reflective films. It includes GB 2893 and GB/T 18833 standard colors and allows manual customization of polygonal rectangle tolerances.

Light Source

Combined LED Light, UV Light

Spectral separation device

Flat Grating

Detector

Silicon photodiode array (dual array, 40 groups)

Wavelength Range

400~700nm

Wavelength Pitch

10nm

Half Bandwidth

10nm

Reflectance resolution

0.01%

Reflectance Range

0~200%

Measuring Aperture

5 aperture:11mm platform+10mm platform+5mm platform +3mm platform +1*3mm platform

Color Space

CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99,Munsell(C/2)

Color Difference Formula

ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter)

Other Colorimetric Index

WI(ASTM E313，CIE/ISO,AATCC,Hunter)，
YI(ASTM D1925，ASTM 313),
Metamerism Index MI，Blackness (My,dM)，Tint(ASTM E313-00)，Munsell(C/2)，
Staining Fastness, Color Fastness, Color Density CMYK,Opacity（Some functions are realized through PC software）

Observer Angle

2°/10°

Illuminant

D65,A,C,D50,D55,D75,F1,F2,F3,F4，F5，F6,F7,F8,F9，F10,F11,F12,CWF,DLF,TL83,TL84,TPL5,U30，B,U35,NBF,
ID50,ID65,LED-B1,LED-B2 ,LED-B3,LED-B4,LED-B5,LED-BH1 ,LED-RGB1,LED-V1,LED-V2 ,LED-C2,LED-C3,LED-C5,Light source can be customized (a total of 41 kinds of light sources, some of which are realized through the host computer/APP)

Display Data

Spectrogram/Values, Chromaticity Values, Color Difference Values/Graph, Pass/Fail Result, Color Offset

Measurement Time

About 1.5s

Display resolution

0.01

Repeatability

Spectral reflectance: MAV, Standard deviation within 0.08% (400 nm to 700 nm: within 0.18%)
Chromaticity value: MAV, within ΔE*ab 0.02 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)

Inter-instrument Error

MAV,Within ΔE*ab 0.18 (Average for 12 BCRA Series II color tiles)

Measurement mode

Single Measurement, Average Measurement(2-99)

Size(L*W*H)

169X73X87mm

Weight

About 446g

Battery power

Li-ion battery. 5000 measurements within 8 hours

Illuminant Life Span

5 years, more than 3 million times measurements

Display

3.5-inch TFT color LCD, Capacitive Touch Screen

Interface

USB, Bluetooth 5.0

Data memory

Standard 1000 Pcs, Sample 30000 Pcs

Language

Chinese Simplified, Chinese Traditional, English, Russian

Software

Andriod,iOS,Windows,WeChat Mini Program

Working Environment

Temperature: 0~40℃; Humidity: 0~85% (No Condensation);altitude: less than 2000 m

Storage Environment

Temperature: -20~50℃; Humidity: 0~85% (No Condensation)

Standard Accessory

Power Adapter, USB Cable, Built-in li-ion battery, User Manual, software(download from the website)White and Black Calibration Board, Protective Cover, Measuring Apertures

Optional Accessory

Micro Printer, Powder Test Box, Universal test components, Locating Plate

Note

Technical specifications are for reference only; the actual product sold shall prevail.



Our Valued Clients

  • philips
  • customer century laminate
  • vogels logo vector
  • customer cipla
  • 3nh customer bridgestone
  • orif Client logo
  • vtech logo vector
  • studds logo

FAQs About  Portable Spectrophotometers

Who are we? Threenh Technology: 22-Year Professional Color Measurement Solution Provider

Threenh Technology is a Chinese professional Measurement Instrument manufacturer with 22 years of industry experience, specializing in the field of color measurement and surface gloss detection. Integrating research and development, design, production, marketing, and sales, the company takes technological innovation as its core and is committed to providing global customers with high-precision and intelligent testing instruments as well as professional solutions.


The Ideal Accurate and User - Friendly Spectrophotometer for Your Needs

This Spectrophotometer device measures the reflectivity，absorbance, transmittance, and fluorescence of light passing through samples, providing invaluable data for a wide range of applications, provide unrivaled accuracy for reliable results.

Selecting an appropriate spectrophotometer offers significant advantages for precision color analysis and quality control. When choosing an accurate and user - friendly spectrophotometer, consider factors such as wavelength range, sensitivity, sample handling options, and available software features. By investing in the right spectrophotometer, you can streamline your analytical processes, obtain more accurate results, and enhance the overall efficiency of your laboratory or industrial operations.

 Choosing the right model—whether portable, benchtop, or inline—aligns technology with specific industry needs, ensuring long-term reliability and optimized color management.

Always a pre-production sample before mass production; Always final Inspection before shipment;

Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.

For wallpaper color consistency & quality control (including solid-color, printed, textured, and embossed wallpapers), these 3nh spectrophotometers deliver optimal performance:


1. TS8560 Benchtop (Lab & R&D – Best Accuracy)

  • d/8° integrating sphere, SCI/SCE dual mode

  • ΔE*ab ≤ 0.01 (repeatability), IIA ≤ 0.1

  • Multi-apertures (Φ3/8/15/25mm) — ideal for large patterned wallpapers

  • UV control (for optical brighteners in paper)

  • Best for: Lab formulation, color standardization, batch-to-batch consistency

  • TS8560 Benchtop instrument


2. TS7700 Portable (Production & Field)

  • d/8° (SCI/SCE), ΔE*ab ≤ 0.02

  • Handheld, fast, non-destructive

  • Large aperture (Φ20mm) averages out texture/pattern unevenness

  • Best for: Production line checks, warehouse incoming inspection, on-site matching

  • TS7700 Portable spectrophotometer instrument

3. PS2080 Portable (Textured/Patterned Wallpapers)

  • d/8°, interchangeable apertures (Φ4/8mm + 1×3mm)

  • High stability for rough/embossed surfaces

  • UV included for fluorescent inks/papers

  • Best for: Complex printed, textured, or metallic-effect wallpapers

  • PS2080 Portable spectrophotometer

4. NS800 (Cost-Effective Routine QC)

  • 45/0 geometry, ΔE*ab ≤ 0.04

  • Touchscreen, easy operation

  • Best for: Uniform solid-color wallpapers, basic production QC

  • NS800 Hand Held Spectrophotometer

Short Recommendation

  • Top lab precision: TS8560

  • Best portable production: TS7700

  • Best for textured/patterned: PS2080

  • Economical routine QC: NS800

All ensure stable, repeatable color measurement for wallpaper rolls, panels, and printed patterns.
