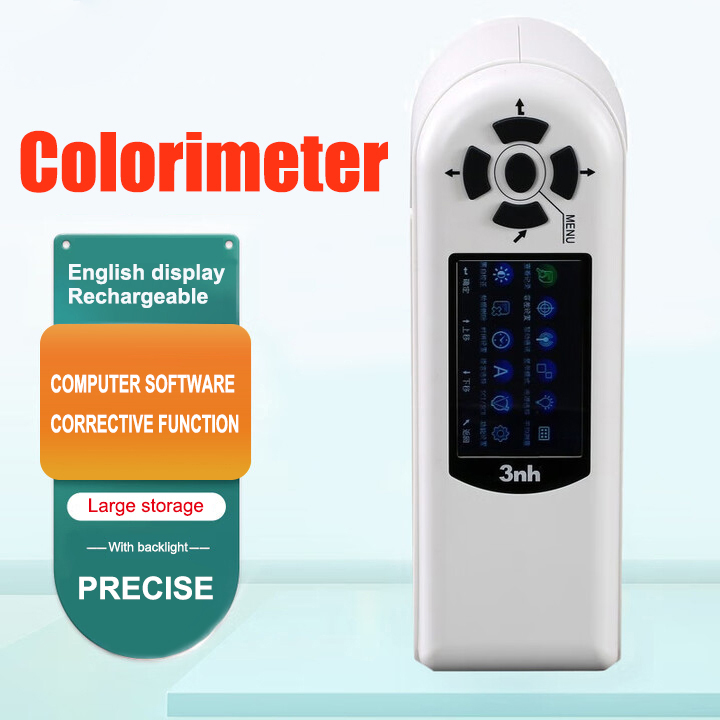

NH310 Portable Colorimeter

Perfect Partner for Color Measurement NH310

NH 310 series portable computer colorimeter adopts the core multi-channel color sensor of international imported brand, more stable lC platform and efficient and accurate algorithm to provide users with accurate and fast color management and application.


Key Highlights

  • 8°/ d optical geometry

  • Automatic black and white calibration function when power on;

  • CIELab, CIEXYZ, CIERGB, CIEL*u*v*, CIEL*C*h Color Space

  • Φ4mm and Φ8mm aperture;

  • 2.8-inch TFT screen for easy operation

  • Reliable repeatability (ΔEab ≤0.06) and Inter-instrument agreement (ΔEab ≤0.4)

  • Large storage capacity,  Apprx. 20,000 data;

  • PC-side software realizes more function expansion

NH310 Portable Colorimeter Instructions Operating Manual NH310 Portable Colorimeter PDF
This NH310 Instrument are Certified with
certify
1 Years Warranty (Additional support period of 3 years)

Product Comparison

High-End Brand of China Colorimeter

NH310 is a mainstream brand colorimeter introduced by 3nh which has synthesized the advantages of ten more traditional imported colorimetersand has experienced ten thousands tests and applied many innovative technologies. Accurate, Stable, Exquisite and Affordable!

your color management expert nr310

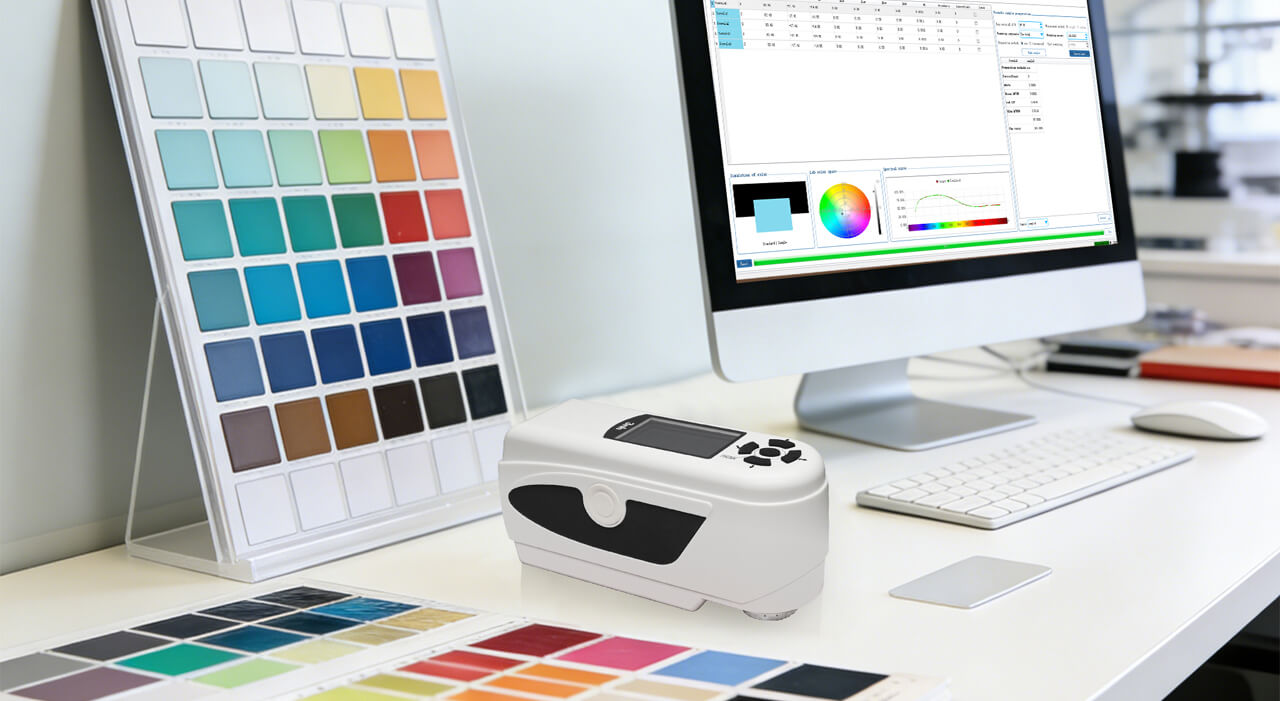

The Preferred Solution for Color Quality Control Management

NH310 high-quality portable colorimeter has adopted multi-channel color sensors of international brands, more stable IC platform as well as efficient and accurate algorithms to provide users with accurate and fast color management and application. NH310 is also designed with ergonomics and humanized operation and it has applied for a number of patents. NH310 is a multifunctional colorimeter with high quality and competitive price. 3nh insists on independent research whose technology innovation is unique in color management field. NH310 is the most convenient colorimeter for users.

nh310_color_management_solutions


NH310 High-Quality Portable Colorimeter

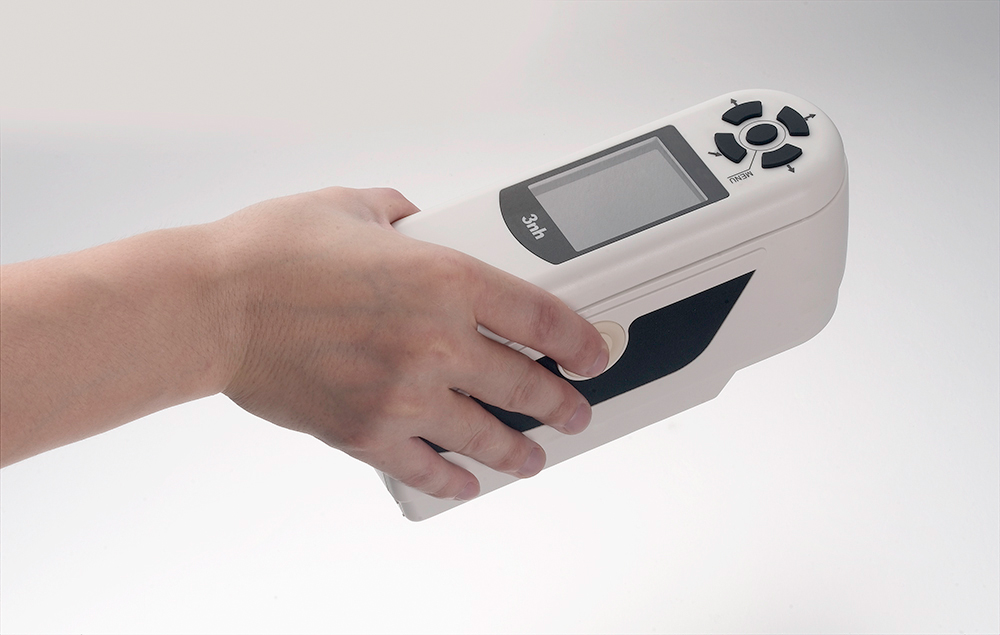

Leading Humanity Design and Convenient Operation


One-touch access to measurement interface
Structure design in line with ergonomics
East-to-use operating interface




Stable Measurement Performance


The repeatability △E is 0.08.

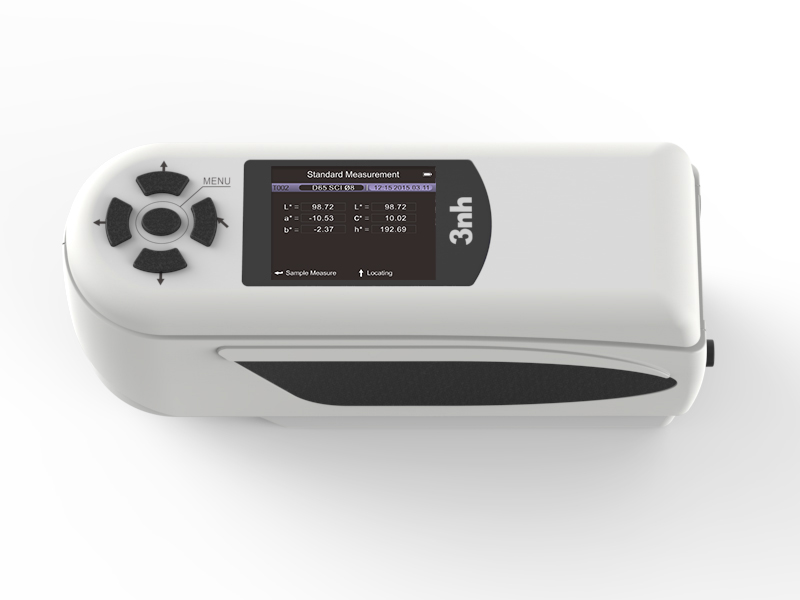

Portable structure design which is more conductive to keeping the instrument stable when using.

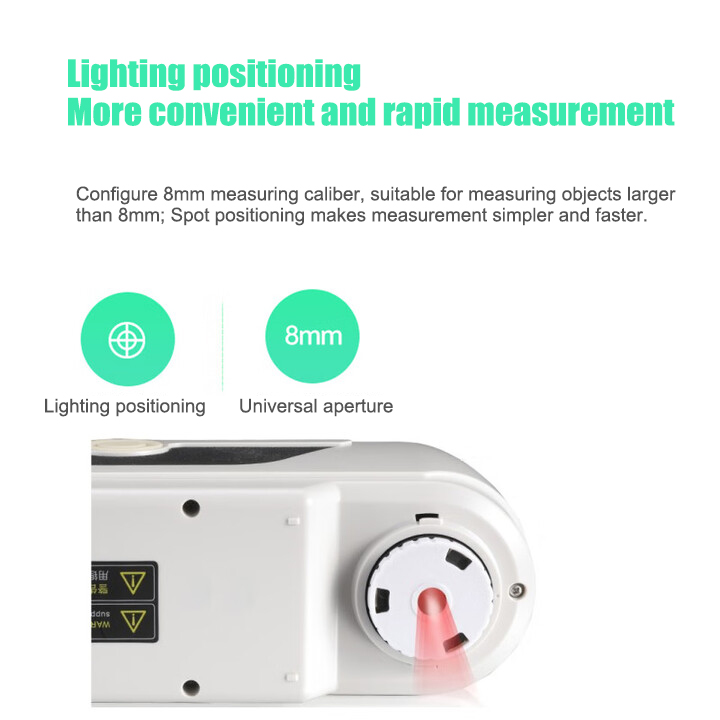

Convenient and Fast Locating

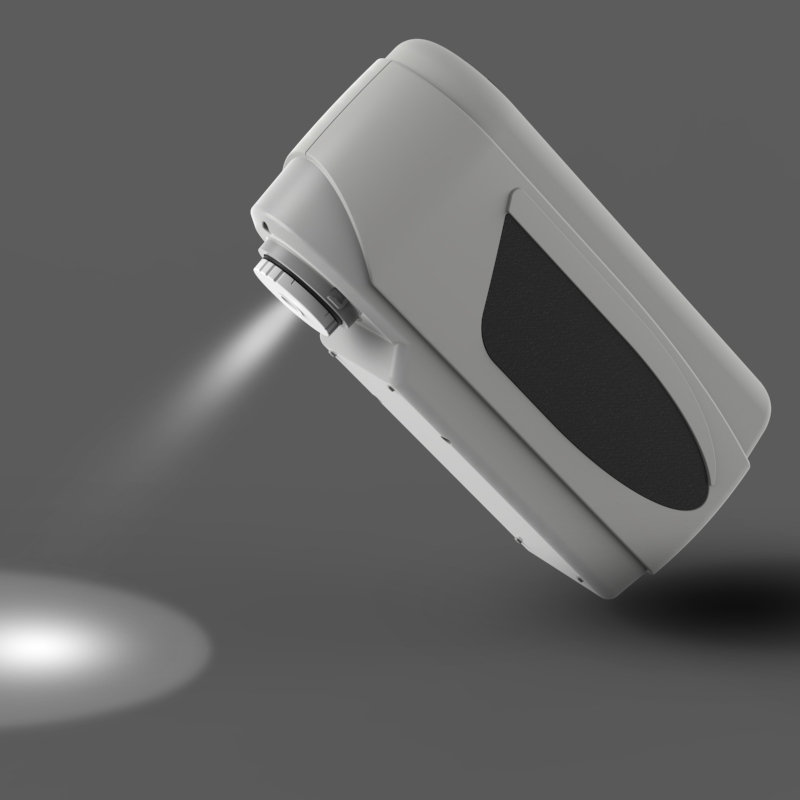

Illumination locating is a fast, simple and convenient locating which created by 3nh

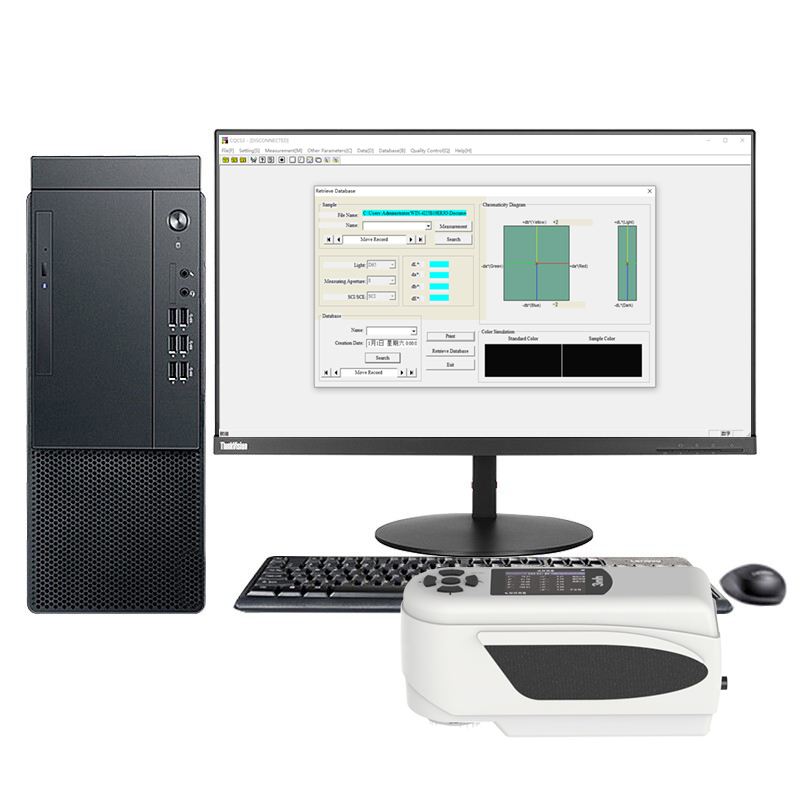

PC Software—Realize More Function Expansion

3nh has the intellectual property of PC software. The corresponding software serial number and password protection are configured in 3nh colorimeter.
Be able to perform color difference analysis, color difference cumulative analysis, chromaticity index, color sample database management, simulating object color, etc.


Explore Custom Engineering




Advanced Power Management Design

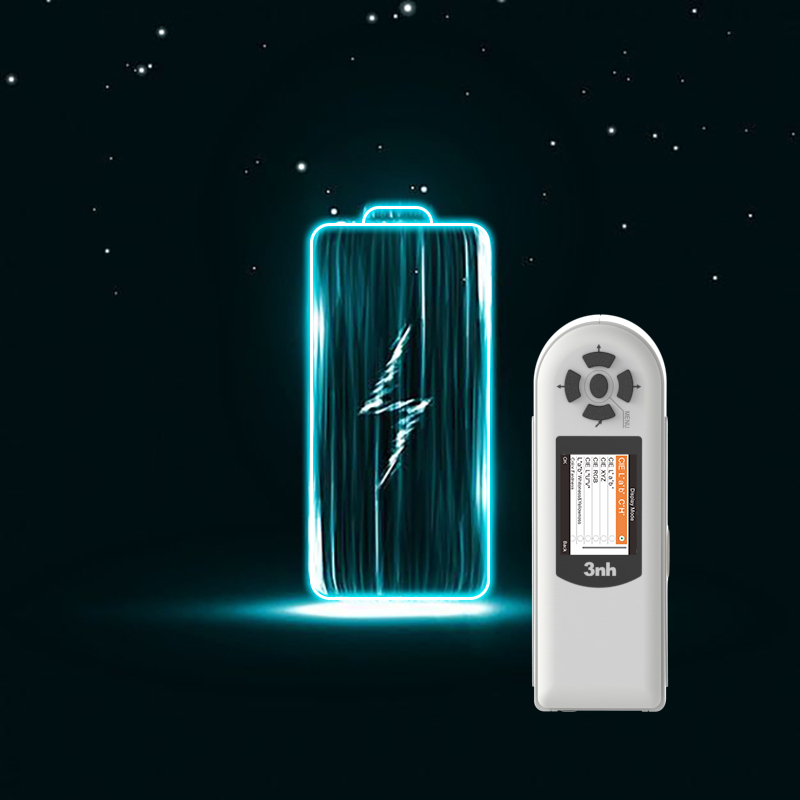

3nh is the first enterprise using high capacity Li-ion battery in colorimeter.
3nh Li-ion battery can be repeatedly charged which will save cost. Meanwhile, it can measure more than 3000 times on one charge to ensure the stability of long time measurement.


National Patent and Innovative Technology


No.1 Camera locating and illumination location (NH310 has new functions of double locating.)


No. 2 Built-in white plate; Automatic calibration at startup (for NH310)


No. 3 Extended aperture (optional), available for measuring concave surface

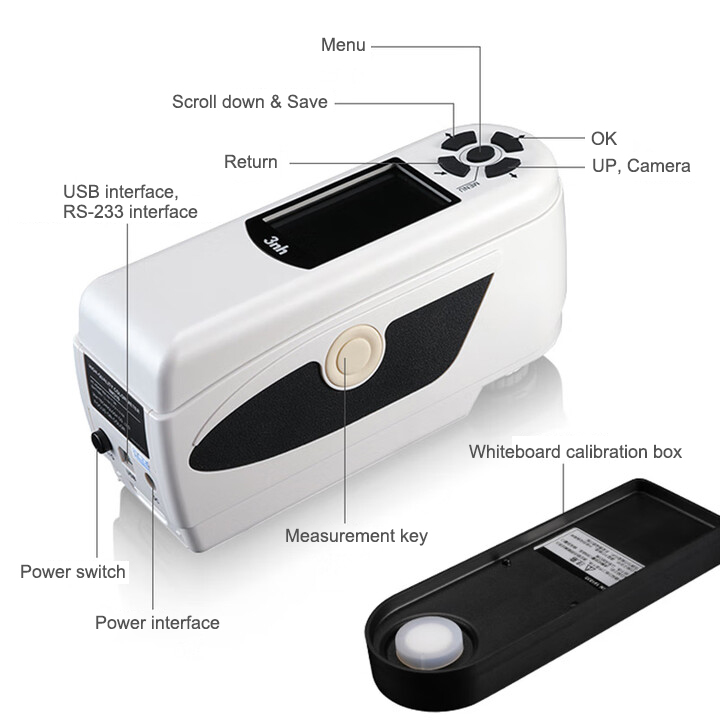

Schematic diagram of nr310 appearance structure

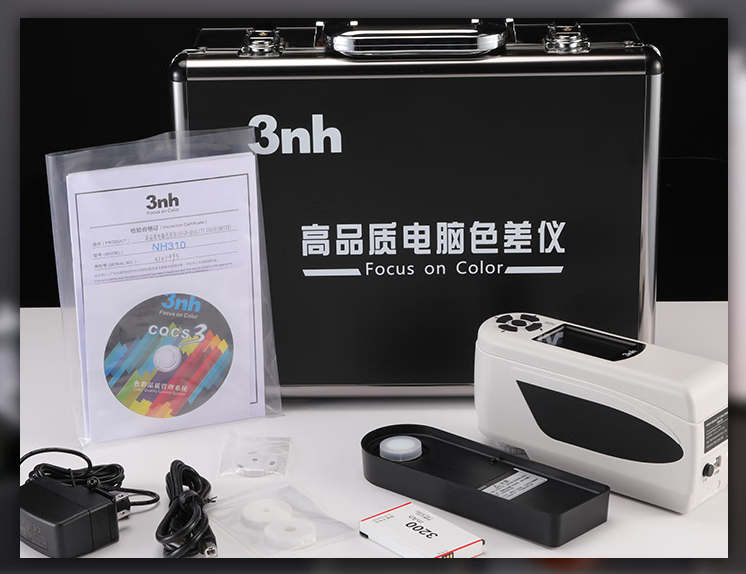

nr310 Product packaging diagram

NH310 colorimeter demonstrating videos


This video shows how to use the device for various applications such as measuring powders, liquids, textiles, and plastic parts.

Operation guides: how to start the instrument, calibration, measurement procedures for different sample types, how to switch between different color spaces and light sources, and how to use the double locating (camera and illumination) and aperture functions.

Contact Experts to Learn More About the NH310




NH310 Clorimeter for Various Fields


Plastics Industry

Used for color quality control of plastic raw materials and plastic products, ensuring color consistency between batches.


Coatings Industry

Accurate measurement of color parameters in coatings and paints ensures stable product quality.


Textile Printing and Dyeing

Used for color measurement and color difference control of textiles and fabrics, improving product qualification rate.


Food Industry

Measuring the color parameters of food to assess its freshness and quality grade.


cosmetic

Controlling the color consistency of cosmetics ensures stable product appearance quality

Building materials.jpg

Building materials industry

Used for color quality control of building materials such as ceramic tiles, stone, and coatings.

NH Series Colorimeter Specifications


NH300NH310
Illuminating/Viewing Geometry8/d8/d
Measuring ApertureΦ8mmΦ8mm/Φ4mm
DetectorSilicon photoelectric diodeSilicon photoelectric diode
Color SpaceCIE LAB,LCh,XYZCIE LAB,XYZ,LCh,CIE RGB，CIE LUV. Yellowness, whiteness, color fastness, color fastness
Color Difference Formula△E*abΔE*ab,ΔE(h),ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00
Light SourceD65D65 D50 A
Light Source DeviceLED blue light excitationLED blue light excitation
Errors Between Each Equipment≤0.40ΔE*ab≤0.40ΔE*ab
Storage100pcs standards 20000pcs samples100pcs standards 20000pcs samples
RepeatabilityStandard deviation within ΔE*ab 0.07 Average of 30 measurements of standard white plate

Standard deviation within ΔE*ab 0.06

Average of 30 measurements of standard white plate
Weight500g500g
Dimension205×70×100 mm205×70×100 mm
Power sourceRechargeable lithium-ion battery 3.7V@3200mAhRechargeable lithium-ion battery 3.7V@3200mAh
Lamp Life5 years, more than 1.6 million measurements5 years, more than 1.6 million measurements
Charging Time2 hours (first time 8 hours--100% electricity)2 hours (first time 8 hours--100% electricity)
Measuring Times Before Rechargingmore than 3000 timesmore than 3000 times
Operating Temperature/Humidity Range-10~40℃, relative humidity 0~85% with no condensation-10~40℃, relative humidity 0~85% with no condensation
Data InterfaceUSBUSB
Extended Aperture (optional)-Φ8mm extended aperture, available for measuring concave surface
Printer (optional)Miniature thermal printerMiniature thermal printer


Instrument Software Installation

1. Mobile APP installation

The mobile APP support Android operating system version 7.0 or higher and iPhone supports iOS 7.0 or higher version. It can be installed in the following ways:

● Scan the QR code on the  Spectrocolorimeter with a mobile browser or WeChat, follow the prompts to download and install.

● Click on the link 3NH APP to install the APP.

● Search for "3NH" (not case sensitive) in the APP Store/Google Play to install the application.

● If you need color matching software for color matching, you can download our Pecolor software blow


Color Matching Cloud For IPhone Download



Color Matching Cloud For Android Download




2. PC software installation

Connect to the computer via USB, you can use the PC software of the colorimeter. (PC software only supports Windows operating system)

● It can be installed in the following ways: Download "Product support | Colorimeter" to the local and run it directly after decompression.

SQCX English Version Download



(for TS Series,YL Series,ST Series,CR Series,YS Series,PS Series,NR+ Series,NH+ Series )


Portable Colorimeters NH Series Instruction manual


bb06afa32e826b47b819f08a2965de01 (1).jpg




Terms and conditions

Technical Support

Our China based Technical Support team is expertly trained on all our instruments along with all supported color software. This level of experience provides you an exceptional customer experience when assisting you with any technical issue you might be experiencing during setup or while operational.

  • Service is complimentary to all our existing clients.

  • The omnichannel communication format includes a customer portal, email, phone or chat.

Extended Warranty up to 5 years is available

In or out of warranty, it does not matter, 3nh customers receive support throughout the lifecycle of their instruments.

Shipping & Delivery

In stock – delivery within 1-2 Days

Backordered – delivery within 3-6 Days

Customized colorimeters (Color Difference Formula, Whiteness, Lightness， Light Source and etc) – delivery within 10-15 Days


Need Help? Contact Our Solutions Specialist



Our Valued Clients

  • customer pidilite
  • PHILIPS
  • customer pg
  • customer cello
  • our customer crompton
  • CAMPUS
  • customer cipla
  • customer apollo

FAQs About NH310 Colorimeter

When evaluating the accuracy of a colorimeter, repeatability is a key parameter.

The repeatability standard deviation ΔE*ab of 3nh colorimeters is within 0.03 (measured under the following conditions: after preheating and calibration, measure the white calibration tile 30 times at 3-second intervals and take the average). This figure is superior to all other similar color measurement instruments.

Each of our instruments undergoes rigorous factory inspection and calibration before delivery. In addition, 3nh colorimeters are guaranteed to pass the metrological certification issued by official metrology institutes.

Threenh Technology colorimeters provide a color deviation prompt function according to the Lab value, which can provide a reference for color matching. The handheld colorimeter can only indicate blacker, whiter, redder, greener, yellower or bluer, but it cannot provide accurate color formulas. Only with the help of a spectrophotometer and professional color matching software can fully realized automated color matching.

A visual colorimeter is a type of colorimeter that uses the human eye to compare the color depth of a sample with that of a standard solution for semi-quantitative or quantitative analysis of substances. This method is commonly used for quick, rough evaluations in industries such as petroleum, transparent liquids, varnishes, chemicals and printing, as well as for visual color grading in quality control. Its working principle is to compare the sample with a standard and provide visual color measurement results, rather than relying on electronic sensors.

Visual Colorimeters vs. Photoelectric Colorimeters

Visual colorimeters rely on human eye observation, whereas photoelectric colorimeters use sensors to deliver higher precision, complete the measurement automatically through electronic circuits, less subjective color measurement and faster results. They are generally more suitable for rapid, on-line or portable color difference measurement.

Working principle of a photoelectric colorimeter

A light source emits light at specific wavelengths, which interacts with the object surface through reflection and transmission. The light is reflected or absorbed by the sample, and the reflected light or remaining transmitted light is received by a photoelectric sensor (photocell or photodiode). The instrument converts the light intensity signal into an electrical signal, thereby measuring the LAB color values of the sample.

3nh Photoelectric Colorimeter – A Trusted Brand in the Color Measurement Industry

Featuring ultra-high precision, user-friendly interface, light positioning function, high-capacity lithium-ion battery, and multiple optional measurement angles.



Threenh Technology with excellent after sale service, Generally, Our warranty is one years(Additional support period of 3 years). Within the warranty period, we can offer technique support and parts to parts change, necessarily, our engineers may go to your place for better support. Our instrument have professional After-sales Dept. lf you have any technical problem or question with our goods welcome to contact us.

D/8°and 45°/0°are two kinds of illumination geometry with different optical geometry design. D/8°illumination geometry is more widely used for the color comparison and measurement of high-gloss materials; 45°/0°illumination geometry is mainly used in printing and packaging industries.
