YS4560 Plus Spectrophotometer

Professional-Grade Color Measurement YS4560 Spectrophotometerr

YS4560 Plus Spectrophotometer uses 45/0 geometric optical structure in accordance with CIE No. 15 and adopts concave grating spectrometry to accurately measure sample reflectance and various colorimetric data; Equipped with Φ8mm and Φ4mm dual measuring apertures, used for traffic signs and accurate color measurement and quality control in various industries. It has a separate UV source for fluorescence sample


Key Highlights

  • Optional aperture 4mm/8mm

  • 3.5-inch TFT color LCD,Capacitive Touch Screen, concave grating, 256 Iimage Element Double Arrays CMOS Image Sensor

  • Large capacity storage space, over 30,000 measurement data

  • Two standard observer angles, a variety of illuminant, a variety of color indexes

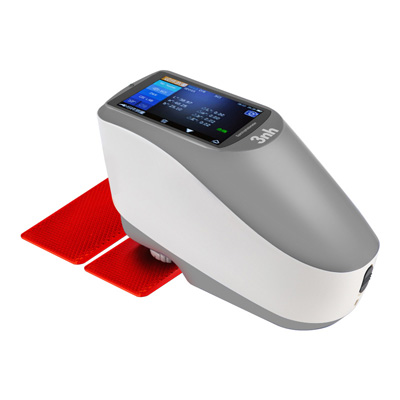

  • specific traffic sign gamut, one button to realize the measurement of traffic road signs, marking lines, reflective film brightness factor and chromaticity coordinates;

  • Color management software

YS4560 Plus Spectrophotometer Instructions Operating Manual YS4560 Plus Spectrophotometer PDF
This YS4560 Instrument are Certified with
certify
1 Years Warranty (Additional support period of 3 years)

YS4560 Plus Introductions

The YS4560 Plus Spectro colorimeter is a cutting-edge instrument engineered for precise color measurement in various industries such as printing, coating, textiles, plastics, and automotive. With its advanced spectrophotometric technology, the YS4560 Plus delivers accurate and reliable color data, ensuring consistent color reproduction across different materials and surfaces.

YS4560 Plus Spectrophotometer uses 45/0 (45 degree ring illumination, 0 degree reception) geometric optical structure in accordance with CIE No. 15 and adopts concave grating spectrometry to accurately measure sample reflectance and various colorimetric data; The instrument is equipped with Φ8, Φ4mm double measuring aperture, used for traffic signs and accurate color measurement and quality control in various industries. It has a separate UV source for fluorescence sample measurements. Its user-friendly interface and intuitive software make it easy to operate, allowing professionals to efficiently measure and analyze color samples. Equipped with a wide range of measurement capabilities, including CIE Lab, LCH, and Delta E, this spectrophotometer provides comprehensive color data for quality control and color management applications. With its robust construction and ergonomic design, the YS4560 Plus is a versatile and indispensable tool for professionals seeking precise color measurement solutions.


Product Features of YS4560 Plus Spectrophotometer

1.Beautiful appearance and perfect combination with ergonomic structure design;

2.45/0 geometrical optics, conforms with CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724/1,ASTM E1164,DIN5033 Teil7，GB 2893、GB/T 18833;

3.Adopt high-life and low-power combined LED light source, including UV/excluding UV;

4.Optional aperture 4mm/8mm,adapt to more samples to be tested;

5. Measure sample spectra, accurate Lab data , can be used in color matching and accurate color transmission;

6.High electronic hardware configuration: 3.5-inch TFT color LCD,Capacitive Touch Screen, concave grating, 256 Iimage Element Double Arrays CMOS Image Sensor;

7.USB port, widely useful;

8.Super stain-resistant and stable standard white calibration plate;

9.Large capacity storage space, over 30,000 measurement data;

10.Two standard observer angles, a variety of illuminant, a variety of color indexes, conforms with a variety of standard colorimetric data, meet a variety of customers' demand for color measurement;

11.PC software has a powerful function extension.

12.Built-in standard polygon tolerance setting and specific traffic sign gamut, one button to realize the measurement of traffic road signs, marking lines, reflective film brightness factor and chromaticity coordinates;

Request a Spectrophotometer Quote

If you have any inquiries, recommendations, or simply wish to connect with us, we’d love to hear from you! Please don’t hesitate to reach out to us. If you have a specific inquiry for an color test equipment you can start from

Specification of Portable Color Spectrophotometer YS4560


ModelYS4560 Plus 45/0 Spectrophotometer
Illumination/Observation system45/0(45 ring-shaped illumination, vertical viewing);
Comply with CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7,GB 2893、GB/T 18833
FeaturesHigh accruacy spectrophotometer is used for accurate analysis and transmission of laboratory color.Apply in paints, inks, textiles, garments, printing and dyeing, printing etc industries for color transfer and quality control, also for Fluorescence sample color measurement.
It is used to measure the brightness factor and color coordinates of traffic signs, markings and reflective films. It contains GB 2893 and GB/T 18833 standard colors. It can customize the rectangular tolerance of polygons manually.
Integrating Sphere SizeΦ48mm
Light SourceCombined LED Light, UV Light
Spectral separation deviceConcave Grating
Detector256 Image Element Double Array CMOS Image Sensor
Wavelength Range400~700nm
Wavelength Pitch10nm
Half Bandwidth10nm
Reflectance Range0~200%
Measuring ApertureMAV:Φ8mm/Φ10mm；SAV:Φ4mm/Φ5mm
Color SpaceCIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99 Munsell(C/2)
Color Difference FormulaΔE*ab,ΔE*uv,ΔE*94 ,ΔE*cmc(2:1),ΔE*cmc(1:1) ,ΔE*00, DINΔE99, ΔE(Hunter)
Other Colorimetric IndexSpectrum Reflectance Rate, WI(ASTM E313-00,ASTM E313-73,CIE/ISO,AATCC,Hunter,TaubeBergerStensby), YI(ASTM D1925,ASTM E313-00,ASTM E313-73) Metamerism Index Mt， Staining Fastness, Color Fastness, Strength (dye strength, tinting strength), Opacity 8-degree Gloss, 555 Index，Blackness（My,dM）, Color Density CMYK(A,T,E,M), Tint(ASTM E313-00)，Munsell（Some functions are realized through the computer）
Observer Angle2°/10°
IlluminantD65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4，F5，F6,F7(DLF),F8,F9，F10(TPL5),F11(TL84),F12(TL83/U30),B,U35,NBF, ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2,LED-C2,LED-C3,LED-C5, Light source can be customized(a total of 41 kinds of light sources, some of which are realized through the host computer/APP)
Display DataSpectrogram/Values, Chromaticity Values, Color Difference Values/Graph, Pass/Fail Result, Color Offset
Measurement TimeAbout 1.5s
RepeatabilitySpectral reflectance: MAV,Standard deviation within 0.08% (400 nm to 700 nm: within 0.18%)

Chromaticity value:within ΔE*ab 0.03 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument ErrorWithin ΔE*ab 0.15(Average for 12 BCRA Series II color tiles)
Measurement modeSingle Measurement, Average Measurement(2-99)
Size(L*W*H)184*77*105mm
WeightAbout 600g
Power sourceLi-ion battery. 5000 measurements within 8 hours
Illuminant Life Span5 years, more than 3 million times measurements
Display3.5-inch TFT color LCD, Capacitive Touch Screen
InterfaceUSB, Bluetooth 5.0
Data memoryStandard 1000 Pcs, Sample 30000 Pcs
LanguageChinese Simplified, Chinese Traditional, English, French, Portuguese, Russian, Spanish, Italian, German
Working EnvironmentTemperature: 0~40℃; Humidity: 0~85% (No Condensation);altitude: less than 2000 m
Storage Environment Temperature: -20~50℃; Humidity: 0~85% (No Condensation)
Standard AccessoryPower Adapter, USB Cable, Built-in li-ion battery, User Manual, software(download from the website)White and Black Calibration Board, Protective Cover.
Optional AccessoryMicro Printer, Powder Test Box, Universal test components, Locating Plate
Notes: The specifications are subject to change without notice.




Our Valued Clients

  • customer pidilite logo
  • customer cipla
  • partner axa
  • Client lakhani
  • orif Client logo
  • Clients gsk logo
  • customer tatamotor
  • philips

FAQs About YS4560 Portable Spectrophotometers

When detecting color differences, the first factors to consider when selecting a light source include its stability, directionality, lifespan, and the effectiveness of the ultimately obtained spectral curve. The illuminant of a colorimeter is a fixed bulb, such as a tungsten lamp，LED light or a long-life xenon lamp. However, for the same color sample, the results displayed by the instrument vary under different light sources. This is because different light sources cause different absorption and reflection of light on the sample, leading to differences in how both the human eye and the instrument perceive the color.

In general, the D65 light source is used in the application of coil steel inks for construction. The D65 light source is equivalent to average daylight. Most coil steel inks for construction are used outdoors, and sunlight is regarded as the standard light source in outdoor environments. For household appliance coil steel inks, due to their usage characteristics, they are mostly used indoors. Therefore, the A standard light source is adopted for color measurement of samples based on indoor lighting conditions. The A light source is a carefully specified tungsten light source. Other light sources, such as fluorescent light sources, can be used in many types of applications. For example, some textile factories use fluorescent light sources. Therefore, a reasonable light source should be selected as the mutually recognized measurement method based on actual usage conditions and user requirements. Once agreed upon by both parties, color measurement must be conducted under the same conditions. This helps reduce unnecessary systematic errors and human errors, achieving the optimal consistency in color measurement.

The 3nh high-precision spectrophotometric colorimeter adopts a combined LED light source with long lifespan and low power consumption, which includes UV (ultraviolet) and UV-excluded options. This design can meet the color difference detection needs of different users and supports the selection of multiple light source modes.

To answer this question, you first need to clarify your specific needs:

  • Is it for simple color quality control (QC)?

  • To coordinate with supply chain color management?

  • To monitor on-line color stability?

  • Do you require computer color matching or production color correction?

  • What is your budget?

  • Systematic supervision and evaluation of color performance in dyed products?

If you aren’t fully clear about your requirements at the initial stage, our color management engineers are ready to communicate with you. We will recommend solutions tailored to your needs. When conditions permit, we can provide prototype demonstrations and trial testing to ensure the instrument meets your practical application requirements.

For premier ink quality control (CMYK, spot colors, printing density, formulation & press-side QC), these 3nh spectrophotometers / spectrodensitometers stand above the rest:


1. YD5050 / YD5010 (Best for Printing & Ink Press QC)

  • 45/0 ring illumination, ISO 5-4 / ISO 13655 (M0/M1/M2/M3)

  • Measures density (Status T/E/A/I), dot gain, trap, print contrast

  • ΔE*ab ≤ 0.03, density ≤ 0.01D

  • Small apertures (Φ2/4/8mm) for fine print & ink dots

  • Ideal: packaging, label, gravure, flexo, CMYK/spot color control

    YD5050


2. TS8560 Benchtop (Lab Formulation & Highest Accuracy)

  • d/8° sphere, SCI/SCE, UV control

  • ΔE*ab ≤ 0.01 (repeatability), IIA ≤ 0.1

  • Multi-apertures (Φ3/8/15/25mm)

  • Best for: R&D, ink formulation, batch consistency, fluorescent inks

    TS8560_Benchtop_colorimeter


3. TS7700 Portable (Production & Field Matching)

  • d/8° (SCI/SCE), ΔE*ab ≤ 0.02

  • Fast, handheld, large Φ20mm aperture

  • Best for: press-side checks, warehouse incoming ink, on-site matching

    TS7700_Portable_colorimeter
    3nh TS7700

4. YS6060 Benchtop (High-End Lab & Transmissive Inks)

  • 360–780nm, UV adjustable, dual CMOS

  • Reflection & transmission modes

  • Multi-aperture (Φ4/8/15/25.4mm)

  • Best for: high-precision lab R&D, transparent/fluorescent inks

    YS6060_Benchtop_colorimeter


Short Recommendation

  • Best press-side / print QC: YD5050

  • Top lab formulation: TS8560

  • Best portable production: TS7700

  • High-end lab R&D: YS6060

All ensure ultra-precise color, density & consistency for offset, flexo, gravure, screen-printing & packaging inks.


A spectrophotometer and colorimeter are certain instruments used by scientists to measure color by quantifying reflected or transmitted light. The results are presented in color spaces, such as L*a*b*, RGB, or XYZ. This enables the accuracy of comparison and tracking of the changes in color in chemical or material research.

Threenh Technology with excellent after sale service, Generally, Our Spectrophotometer instrument warranty is one years(Additional support period of 3 years). Within the warranty period, we can offer technique support and parts to parts change, necessarily, our engineers may go to your place for better support. Our instrument have professional After-sales Dept, if you have any technical problem or question with our goods welcome to contact us.
