8 Angle Color Spectrophotometer MS3008

Precision, Ease of use and Mobility MS3008

The New MS3008 Multi-angle Spectrophotometer brings the latest technology in spectros to the workshops, adopts Industrial-grade MCU with 8 measuring angles, which can provide accurate and consistent color measurement for metalllics, pearlescents and other complex special effect finished products. It is mainly used to measure the color difference of surface paint affected by different viewing angles and conditions. Optimize color accuracy with Multi-angle spectrophotometers and a comprehensive management platform for precise, reliable results.


Key Highlights

  • 8 measurement angles

  • 3.5-inch LCD Capacitive Touch Screen

  • 256 Image Element Double Array CMOS Image Sensor

  • Full spectrum LED light source

  • Excellent agreement between instruments ΔE*<0.18

  • Φ12mm Measuring Aperture

  • With Threenh QC measurement and analysis software

8 Angle Color Spectrophotometer MS3008 Instructions Operating Manual 8 Angle Color Spectrophotometer MS3008 PDF
This MS3008 Instrument are Certified with
certify
1 Years Warranty (Additional support period of 3 years)

Consistent, Reliable Color Matching Technology


This third-generation device provides high accuracy color measurements guaranteed to deliver added confidence in match rating and surface effect information. MS3008 Multi-angle color spectrophotometer adopts Industrial-grade MCU with 8 measuring angles, which can provide accurate and consistent color measurement for metalllics, pearlescents and other complex special effect finished products. The smooth operating system and superior performance of the optical system allow the MS3008 multi-angle spectrometer to provide repeatability and reproducibility of Sparkle Grade(SG),Diffuse coarseness(DC) and Color Variation(CV) measurement.

3nh Multi-angle spectrophotometer MS3008 is used to measure the color difference for the surface paint which is affected by different viewing angles and viewing conditions. It can not only measure multi-angle color difference, but also measure and characterize special finishes through 8 measuring angles. Even in the curved surface, it also has high measuring accuracy and stability. As a precise and compact spherical spectrophotometer for accurately measuring the color of car surfaces anytime, anywhere.

Technical characteristics

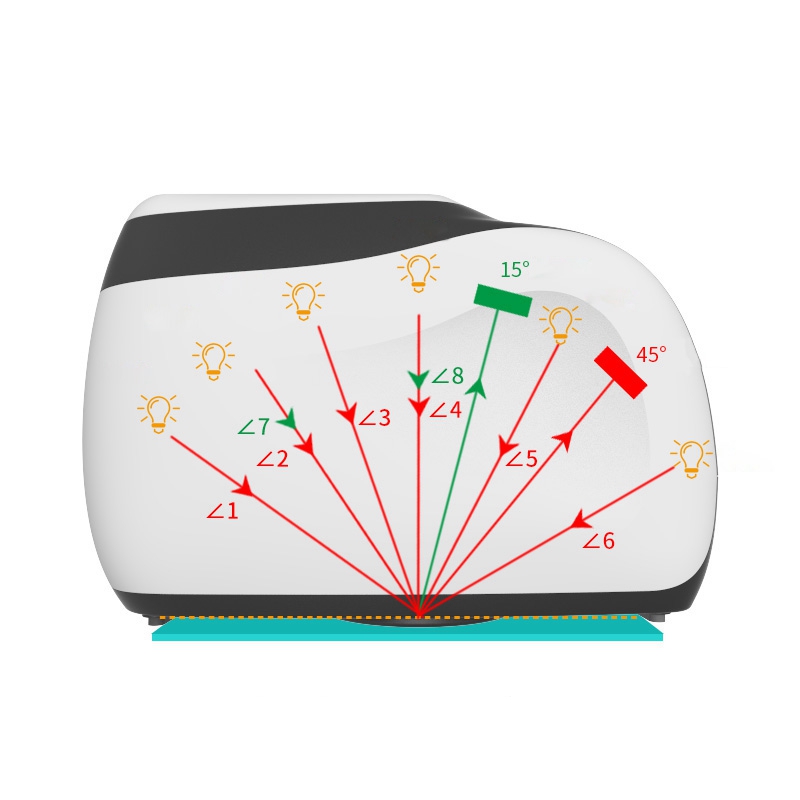

Multi-angle measurement

Adopt 6 illumination sources, 2 receivers to measure 8 measurement angles at the same time

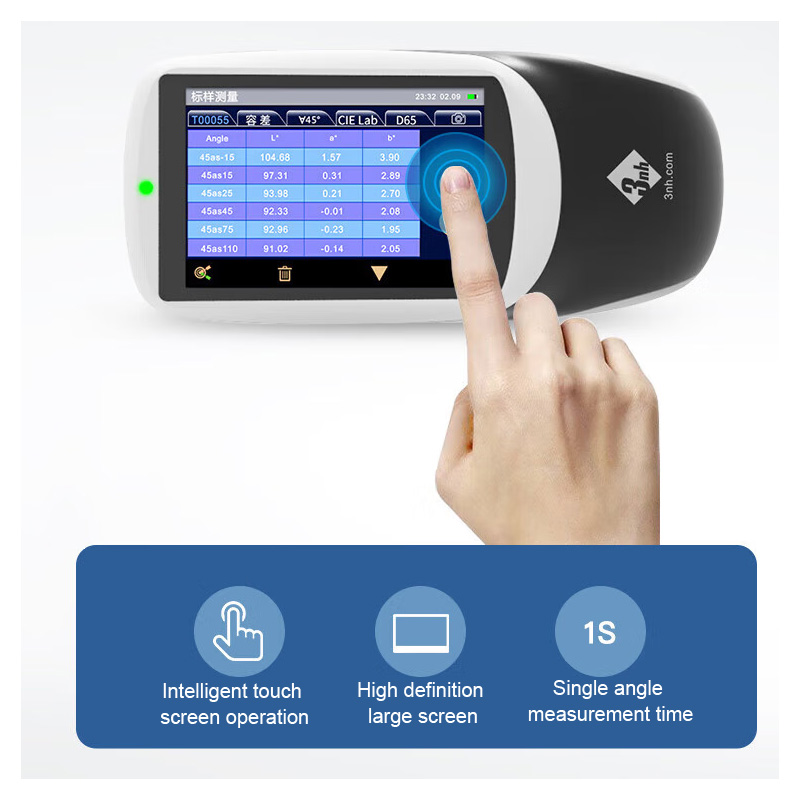

industrial grade hd touch screen ms3008

More intuitive display

Touch screen can display all Angle measurement results, more intuitive view of the comprehensive data.

Effect measurement discrimination function


Quickly distinguish the sample Sparkle Grade(SG)，Diffuse coarseness(DC) and Color Variation(CV), simple and effective quality inspection.

Implement simple and effective quality inspection on the glitter intensity, color sparkle intensity, and particle size of metallic colors, pearlescent colors, and other special-effect colors.

Connect With A Color Expert Now!

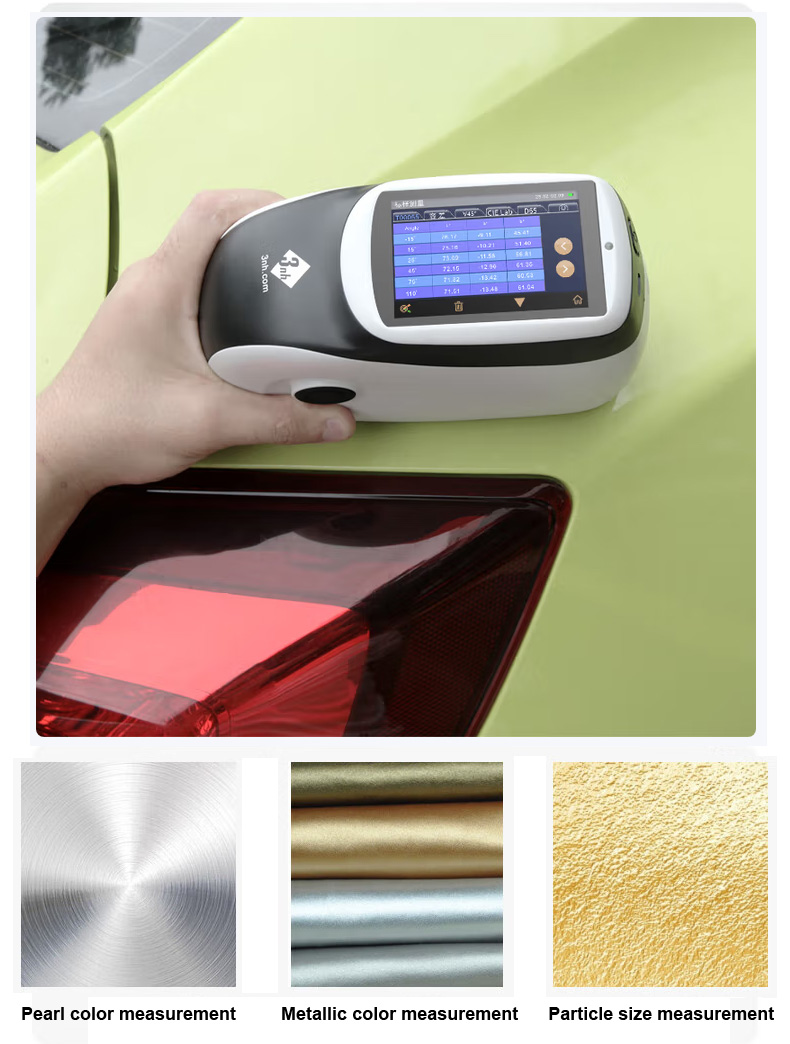

3NH Special surface effect color measurement MS3008

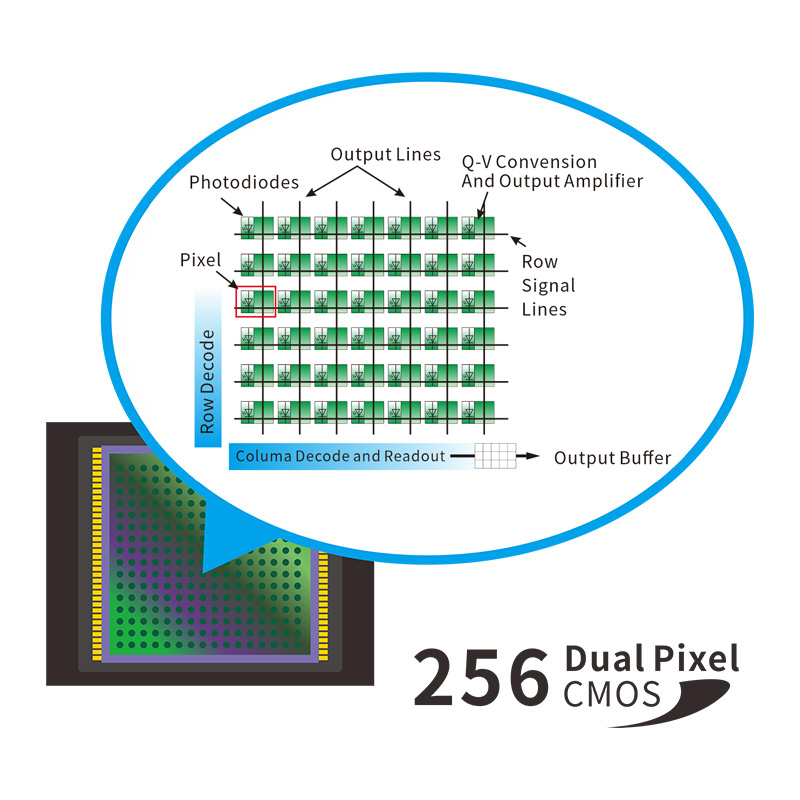

256 Image Element Double Array CMOS Image Sensor

The higher optical resolution ensures the measuring speed, accuracy, stability and consistency of the instrument. The core technology makes it as the same platform with international standards and complete compatibility.

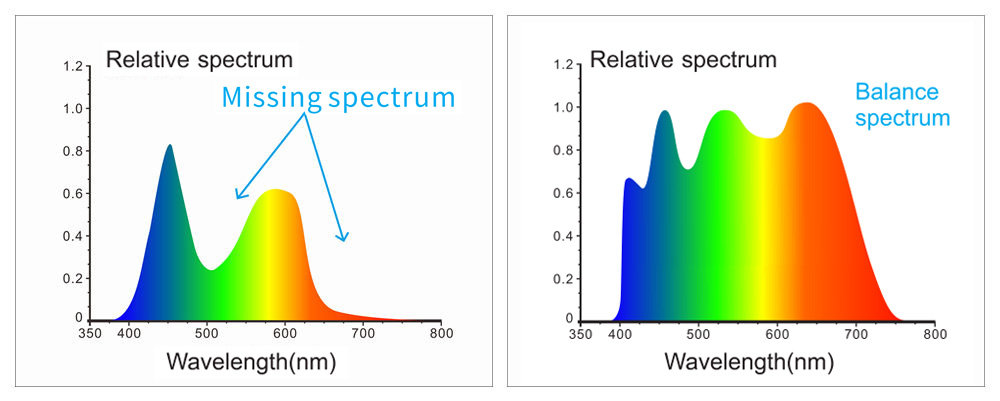

Adopt Full spectrum LED light source with blue enhancement

The Full spectrum LED light source with blue enhancement ensures sufficient spectral distribution in the visible light range, avoids the spectral loss of LED in a specific band, and ensures the accuracy of instrument measurement results and low cost maintenance.

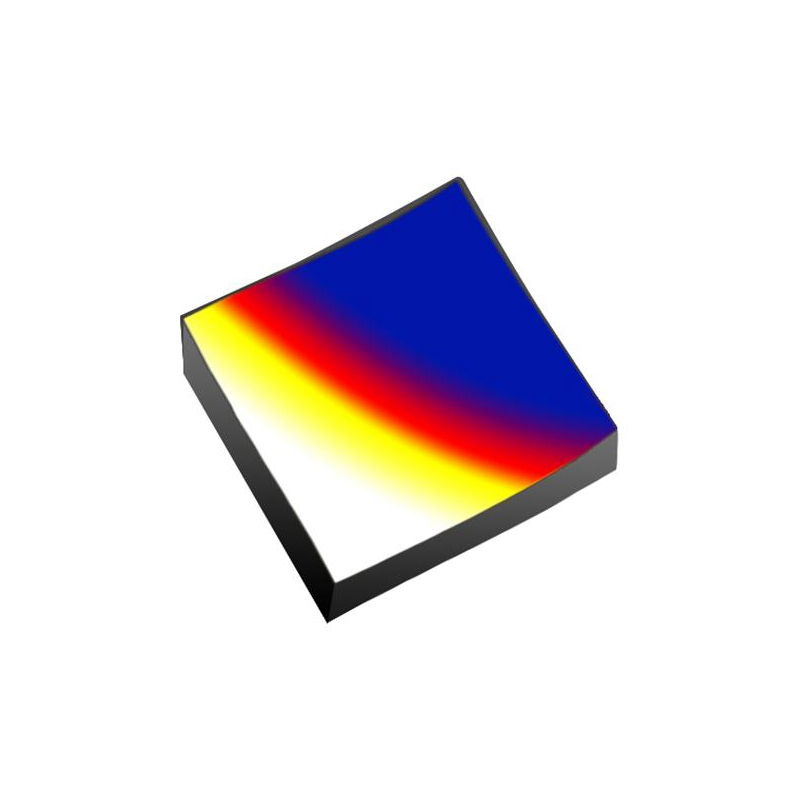

Concave grating spectrophotometric technology

Using concave grating spectrophotometric technology, with higher resolution, makes color measurement more accurate.

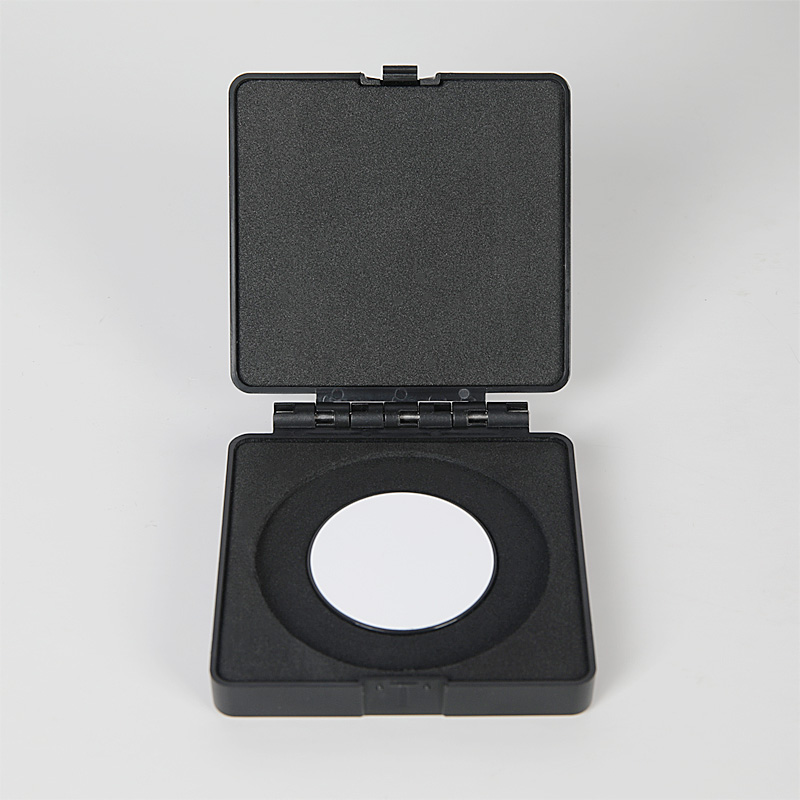

Professional-grade white board

Professional-grade white board, high hardness in the surface, stable optical performance






Higher quality

Industrial grade real-time processing MCU, Bluetooth 5.0 transferring more stable and reliable.

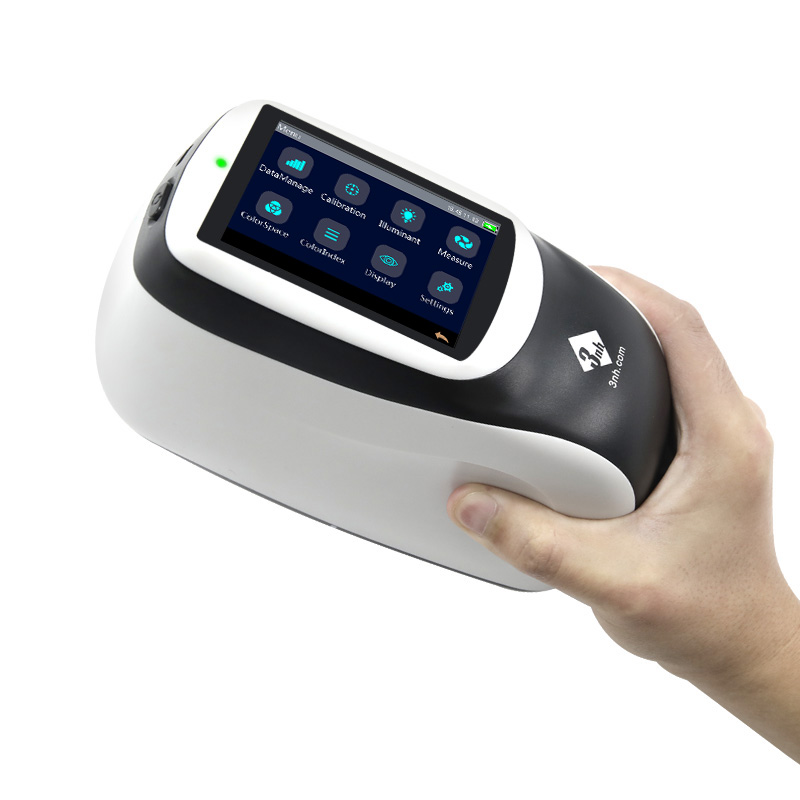

Ergonomics Novel and fashionable appearance design

The instrument appearance design is easy to operate, and the hand holding position and the measurement button are well-designed, which can meet different holding habits, smooth and fine surface, from the high-precision appearance treatment process.

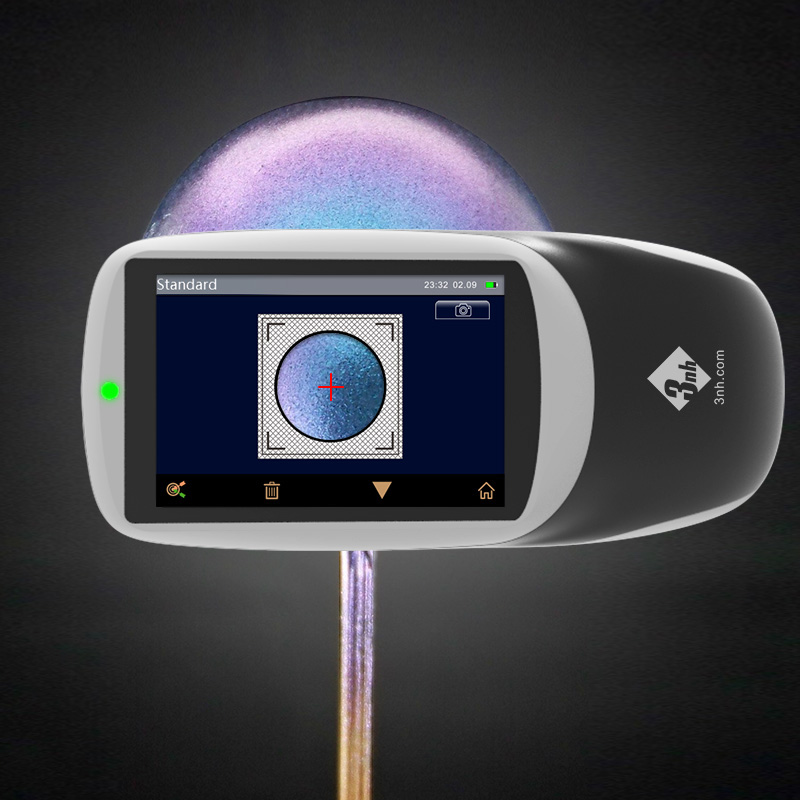

Color camera preview, can clearly observe the measured area

Built-in color camera positioning, can accurately judge the object measured position, and improve the measurement efficiency and accuracy.

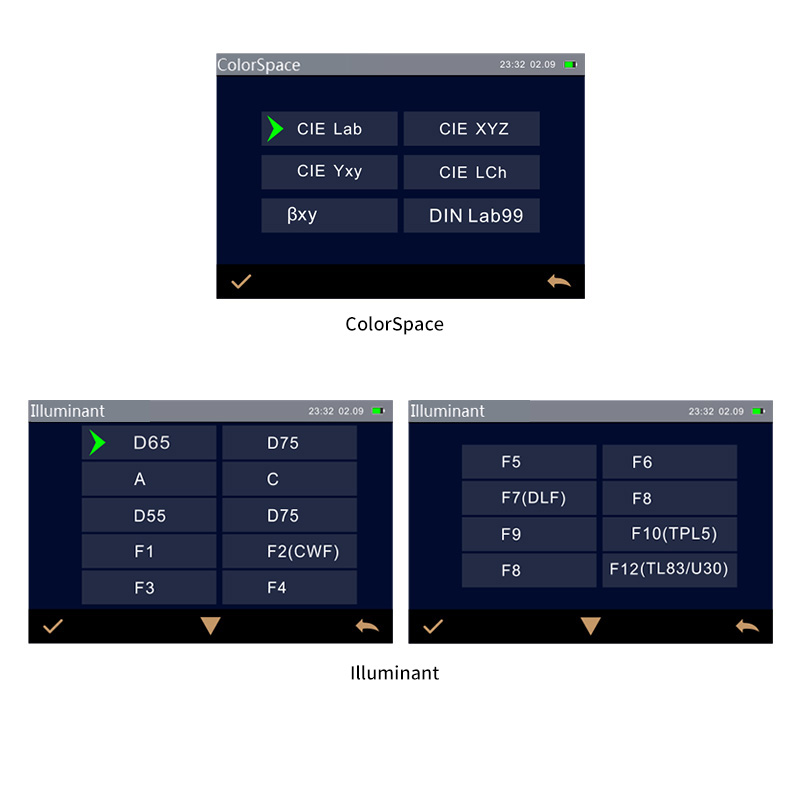

Multiple color measurement space, multiple observation light sources

Offer CIE LAB,XYZ,Yxy,LCh,β XY,DIN Lab99 color space, And D65, A, C, D50, D55, D75, F1, F2 (CWF), F3, F4 and F5, F6 and F7 (DLF), F8, F9, F10 (TPL5), and F11 (TL84), F12 (TL83/U30) A variety of light source, which can meet the special measurement demand under different measurement conditions.

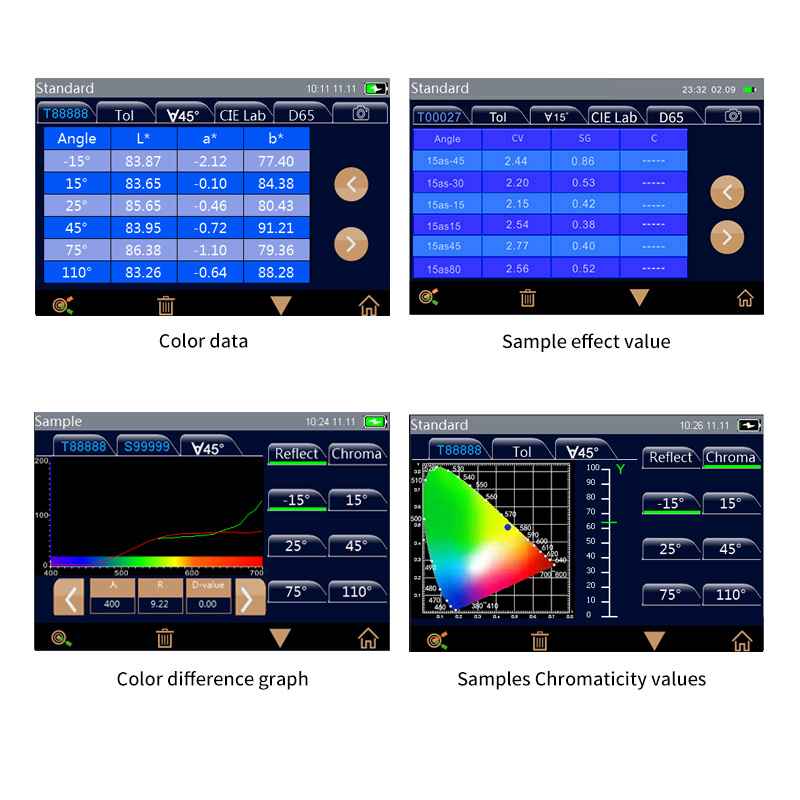

Easily analyze data

The screen can intuitively display spectrum/data, sample chromaticity value, color difference value/figure, pass/fail results, color simulation, sample effect value, effect difference value and other data, convenient to view while also greatly improve the user's work efficiency.




MS3008 Technical parameters


ModelMS3008
Measurement Geometry8 measurement angles (6 illumination sources, 2 receivers)
Measure Angle45° Receiver：
45as-15°,45as15°,45as25°, 45as45°,45as75°,45as110°
15°Receiver：
15as-45°,15as-15°
Conform to the standards：ASTM D 2244,E 308,E 1164,E 2194, E2539,DIN 5033,5036,6174,6175-1,6175-2;ISO 7724, 11664-4
SAE J 1545
ApplicationProvide accurate and consistent color measurement for metallic, pearlescent and other complex special effect color products
Light SourceFull spectrum LED light source with blue enhancement
Lamp Life5 years, 3 million times measurements
Spectrophotometric ModeConcave Grating
Sensor256 Image Element Double Array CMOS Image Sensor
Wavelength Range400nm-700nm
Wavelength Interval10nm
Measurement Range0~600%
Semiband Width10nm
Measuring ApertureIllumination size Φ23mm / Measuring spot 9X12mm (Customized: Illumination size Φ10mm / Measuring spot 6X8mm)
Color SpaceCIE LAB,XYZ,Yxy,LCh,βxy,DIN Lab99
Color Difference FormulaΔE*ab,ΔE*94,ΔE*cmc(2:1), ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE DIN6175,color difference formulas of multiple car brands
Other Colorimetric IndexFlop Index
Observer Angle2°/10°
IlluminantD65,A,C,D50,D55,D75, F1,F2(CWF),F3,F4,F5,F6 ,F7(DLF),F8,F9,F10(TPL5), F11(TL84),F12(TL83/U30)
DisplaySpectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset, Color simulation, Sample effect value, Effect difference value
Measuring Time(not including the effective color measuring time)
RepeatabilitySpectral reflectance: Standard deviation within 0.08%
Chromaticity value: ΔE*ab 0.03 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
ReproducibilityΔE*<0.10,avg on the gray tile of BCRA tile set
ΔE*<0.25,avg on the color BCRA tile set
Inter-instrument Error0.18ΔE*00(avg on reference Series II BCRA tile set)
Effect ParametersSparkle Grade(SG),Diffuse coarseness(DC) and Color Variation(CV)
Effect Measurement6 angles Sparkle Grade(SG),Color Variation(CV):15as-45°,15as-30°,15as-15°,15as15°,15as45°,15as80°
15d Diffuse coarseness(DC)


Effect RepeatabilitySparkle Grade(SG) Short-term repeatability: 0.12% (10 times standard deviations) (When a color plate is measured 10 times at 10 second intervals after white calibration)
Diffuse coarseness(DC) Short-term repeatability:e0.09% (10 times standard deviations) (When a color plate is measured 10 times at 10 second intervals after white calibration)
Effect ReproducibilitySparkle Grade(SG) Reproducibility: 1.9% (10 times standard deviations)
(avg on reference Series II BCRA tile set)
Diffuse coarseness(DC) Reproducibility: 1.4% (10 times standard deviations)(avg on reference Series II BCRA tile set)
Trigger modeButton trigger, software trigger
Measuring ModeSingle measurement, average measurement (1-99), continuous measurement (1-99)
Locating ModeColor camera preview
DimensionL*W*H=195X83X128mm
WeightAbout 1Kg
Powerlithium-ion battery, 3.7V,5000mAh, Continuous test 6000 times within 8 hours of full charge
Display3.5-inch TFT color LCD, Capacitive Touch Screen
InterfaceUSB, Bluetooth 5.0
Data Storage1000 pcs Standards,4000 pcs Samples
LanguageSimplified Chinese, Traditional Chinese, English
Operating Environment10℃ to 50℃, humidity does not exceed 85%, no condensation
Storage Environment-20℃ to 50℃, humidity does not exceed 85%, no condensation
CalibrationBuilt-in white board parameters, external white board, black light trap, color board
Calibration Interval4 hours,8 hours,24 hours,Startup calibration
Standard accessoriesPower Adapter, USB Cable, User Guide,PC Software(download from the official website), Calibration Board, black light trap,Protective cap, wristband
Optional AccessoryMicro-printer
NotesTechnical parameters are for reference only, subject to actual sales products.


Our Valued Clients

  • tata motors
  • bosch
  • ford
  • astemo
  • aisin
  • belrise industries
  • valeo
  • suzuki

FAQs About MS3008 Multi-angle spectrophotometer

Many people might answer "with the human eye", but this is actually not comprehensive. The human eye cannot accurately distinguish the colors of similar objects. Furthermore, everyone's perception of color varies. Therefore, people have developed color measurement tools based on the CIE color system.

Currently, there are two main types of commonly used colorimeters, as follows:

Colorimeter - It is an ideal choice for quality control (QC) on production lines, used to detect color differences.

Spectrophotometer - It is suitable for the development of color characteristics and color analysis in laboratories.

Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification.


For a proper color evaluation, ensure cleanliness, use standardized observation conditions, eliminate stray light, and periodically change the lamps.


A colorimeter sends light through a solution and measures the amount that is absorbed. It computes the absorbance by comparing the intensity of light before and after passing through. The greater the concentration of the color, the greater is the absorption of the light. It is also possible to quantify the color of the solution.


To keep the light box calibrated and to ensure accurate and steady lighting, clean the inside, replace the lamps when needed, check the calibration and record the hours use

The concentration of colored compounds in a solution is determined by the use of a colorimeter test. It can be used to measure the quality of the product. The colorimeter test determines the presence of contamination or observes chemical reactions by measuring the extent to which a solution absorbs light at a given wavelength.
