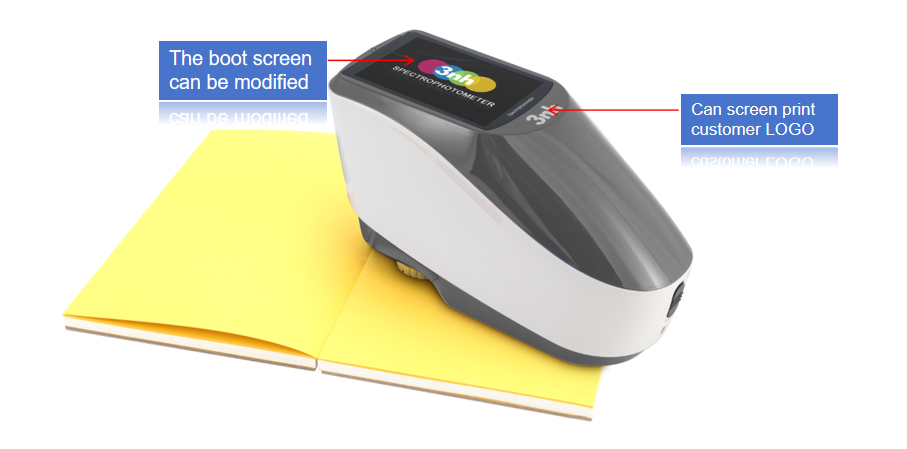

Spectrodensitometer YD5010

Control Density Across Every Production Batch

3nh YD5010 Grating Spectrophotometer Densitometer with 45/0(45 ring-shaped illumination, 0 degree viewing angle), comply to standard ISO 5-4,CIE No.15. It is suitable for using in ink printing, in Film Processing, Textile Printing and Dyeing, Plastic Electronics and Other Industries for Color Measurement and Quality Control. Automate Color Density Control: Smart Grating Spectrodensitometer for High-Volume Production.


Key Highlights

  • 45/0 geometrical optics structure, comply with CIE

  • Reflectance spectrum, CMYK density and Lab

  • 3.5-inch TFT true-color screen, capacitive touch screen, concave grating

  • Ergonomic structure design

  • Φ2/4/8mm Optional apertures

  • Pinting plants process control and quality control

Spectrodensitometer YD5010 Instructions Operating Manual Spectrodensitometer YD5010 PDF
This Spectrodensitometer YD5010 Instrument are Certified with
certify
1 Years Warranty (Additional support period of 3 years)

3nh launched new model YD5010 Grating Spectrophotometer Densitometer with 45/0(45 ring-shaped illumination, 0 degree viewing angle), comply to standard  ISO 5-4,CIE No.15. It is suitable for using in ink printing, in Film Processing, Textile Printing and Dyeing, Plastic Electronics and Other Industries for Color Measurement and Quality Control;especially suitable for the measurement and quality control of optical density and dot enlargement in ink printing; and it is able to customize single aperture Φ2mm，Φ4mm，Φ8mm.

Under the 45/0 geometric optical illumination and the testing conditions of M O, M 1，M 2 , M 3 stipulated by ISO 13655 standard, the instrument can accurately measure the reflectance data of samples. Under multiple color spaces, it can accurately measure various printing density indexes, color difference formulas and color indexes, and can meet the user's regular testing of various parameters.


Product Features



1.Perfect combination of the beautiful appearance and the ergonomic structure design;

2.Combined LED light sources with long life and low power consumption, including UV light;

3.Optional apertures: Φ2/4/8mm, adapt to more samples;

4. Accurately measure reflectance spectrum, CMYK density and Lab value of the sample, Accurate color density measurement to ensure consistent print quality;

5.High-configuration electronic hardware: 3.5-inch TFT true-color screen, capacitive touch screen, concave grating, 256-pixel dual-array CMOS image sensor, etc.;

6.Two standard observer angles: 2/10, multiple light source modes and color systems;

7.USB mode is widely useful;

8.Large-capacity storage space, over 10,000 test data;

9.Especially suitable for process control and quality control of printing plants;

10. PC software has powerful function expansion.

  Model YD5010 Measurement Geometry 45/0(45 ring-shaped illumination, 0 degree viewing angle); ISO 5-4,CIE No.15 Features Common spectrophotometer densitometer, apply in ink printing, in Film Processing, Textile Printing and Dyeing, Plastic Electronics and Other Industries for Color Measurement and Quality Control;especially suitable for the measurement and quality control of optical density and dot enlargement in ink printing;able to customize single aperture Φ2mm,Φ4mm,Φ8mm. Light Source Combined LED Light, UV Light Spectral separation device Concave Grating Detector 256 Image Element Double Array CMOS Image Sensor Wavelength Range 400~700nm Wavelength Pitch 10nm Half Bandwidth 10nm Measurement Conditions Compliance with ISO 13655 measurement conditions; M0 (CIE Light Soure A) M1 (CIE Light Soure D50) M2 (Excluding UV light source) M3 (M2+Polarized light filter) Density Standards ISO Status A, E, I, T Density index Density value, density difference, dot area, dot enlargement, overprint, printing characteristics, printing contrast, tone error and gray level Measurement aperture Customized one aperture：Φ2mm,Φ4mm,Φ8mm optional Color Spaces CIE LAB,XYZ,Yxy,LCh Color Difference Formula ΔE*ab,ΔE*94,ΔE*00 Other Colorimetric Index / Observer Angle 2°/10° Illuminants A,C,D50,D55,D65,D75,F2,F7,F11,F12 Measurement Time About 1.5s Repeatability Density: Within 0.01 D Chromaticity value:within ΔE*ab 0.04 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) Except M3 Inter-instrument Error Within ΔE*ab 0.2 (Average for 12 BCRA Series II color tiles) Except M3 Measurement mode Single Measurement, Average Measurement(2-99) Size(L*W*H) 184*77*105mm Weight About 600g Power source Li-ion battery. 5000 measurements within 8 hours Illuminant Life Span 5 years, more than 3 million times measurements Display 3.5-inch TFT color LCD, Capacitive Touch Screen Interface USB, Data memory 10000 pcs Language Simplified Chinese, English, Traditional Chinese Working Environment Temperature: 0~40℃; Humidity: 0~85% (No Condensation);altitude: less than 2000 m Storage Environment Temperature: -20~50℃; Humidity: 0~85% (No Condensation)） Standard Accessory Power Adapter, USB Cable, Built-in li-ion battery, User Manual, software(download from the website),White and Black Calibration Board, Protective Cover,Polarization filter box,Locating Plate Optional Accessory Micro Printer Notes: The specifications are subject to change without notice

Can't find what you want? Contact us!

Color measurement instruments+ software + support = all-round carefree, ThreeNH will take care of your request in a competent and friendly manner from the initial inquiry to the purchase and beyond. You benefit from short response times, customized solutions, high-quality advice from our experienced application engineers and unique support by phone, web-based or on site.

Talk to a Experienced Application Engineer





ModelYD5010
Measurement Geometry45/0(45 ring-shaped illumination, 0 degree viewing angle); ISO 5-4,CIE No.15
FeaturesCommon spectrophotometer densitometer, apply in ink printing, in Film Processing, Textile Printing and Dyeing, Plastic Electronics and Other Industries for Color Measurement and Quality Control;especially suitable for the measurement and quality control of optical density and dot enlargement in ink printing;able to customize single aperture Φ2mm,Φ4mm,Φ8mm.
Light SourceCombined LED Light, UV Light
Spectral separation deviceConcave Grating
Detector256 Image Element Double Array CMOS Image Sensor
Wavelength Range400~700nm
Wavelength Pitch10nm
Half Bandwidth10nm
Measurement ConditionsCompliance with ISO 13655 measurement conditions;
M0 (CIE Light Soure A)
M1 (CIE Light Soure D50)
M2 (Excluding UV light source)
M3 (M2+Polarized light filter)
Density StandardsISO Status A, E, I, T
Density indexDensity value, density difference, dot area, dot enlargement, overprint, printing characteristics, printing contrast, tone error and gray level
Measurement apertureCustomized one aperture：Φ2mm,Φ4mm,Φ8mm optional
Color SpacesCIE LAB,XYZ,Yxy,LCh
Color Difference FormulaΔE*ab,ΔE*94,ΔE*00
Other Colorimetric Index/
Observer Angle2°/10°
IlluminantsA,C,D50,D55,D65,D75,F2,F7,F11,F12
Measurement TimeAbout 1.5s
RepeatabilityDensity: Within 0.01 D

Chromaticity value:within ΔE*ab 0.04 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) Except M3
Inter-instrument ErrorWithin ΔE*ab 0.2 (Average for 12 BCRA Series II color tiles) Except M3
Measurement modeSingle Measurement, Average Measurement(2-99)
Size(L*W*H)184*77*105mm
WeightAbout 600g
Power sourceLi-ion battery. 5000 measurements within 8 hours
Illuminant Life Span5 years, more than 3 million times measurements
Display3.5-inch TFT color LCD, Capacitive Touch Screen
InterfaceUSB,
Data memory10000 pcs
Language
Simplified Chinese, English, Traditional Chinese
Working EnvironmentTemperature: 0~40℃; Humidity: 0~85% (No Condensation);altitude: less than 2000 m
Storage EnvironmentTemperature: -20~50℃; Humidity: 0~85% (No Condensation)）
Standard AccessoryPower Adapter, USB Cable, Built-in li-ion battery, User Manual, software(download from the website),White and Black Calibration Board, Protective Cover,Polarization filter box,Locating Plate
Optional AccessoryMicro Printer
Notes: The specifications are subject to change without notice.



Our Valued Clients

  • Toyo Ink Malaysia Coloring ink
  • Sun Chemical Inks, Pigments
  • fujifilm sericol inks
  • Gail Print Paper Bags Packaging
  • hunbergroup chemicals ink company
  • Sakata INX company
  • Dynamic packaging company
  • Marico

FAQs About  Spectrodensitometer

Gloss level is not given out in percentage but in gloss units (GU). In practice, however, 100 GU is considered 100 percent reflective. To contrast visually, the 20-40 GU is a low-gloss surface, and 85 or more is almost 100 percent mirror-like reflection.


Compared to an analog model, digital gauges not only provide more accuracy, but also allow for greater repeatability and are easier to work with. Advanced digital gauges allow for features such as data storage and automatic calibration and statistical analysis. For these reasons, digital gauges are the preferred choice for professional applications.


The Ideal Accurate and User - Friendly Spectrophotometer for Your Needs

This Spectrophotometer device measures the reflectivity，absorbance, transmittance, and fluorescence of light passing through samples, providing invaluable data for a wide range of applications, provide unrivaled accuracy for reliable results.

Selecting an appropriate spectrophotometer offers significant advantages for precision color analysis and quality control. When choosing an accurate and user - friendly spectrophotometer, consider factors such as wavelength range, sensitivity, sample handling options, and available software features. By investing in the right spectrophotometer, you can streamline your analytical processes, obtain more accurate results, and enhance the overall efficiency of your laboratory or industrial operations.

 Choosing the right model—whether portable, benchtop, or inline—aligns technology with specific industry needs, ensuring long-term reliability and optimized color management.

a. Connect colorimeter to the PC with USB cable.

b. Turn on the colorimeter to enter main menu. Select "Comm" and press "Enter" key to start communication.

c. Right click on "My Computer" on the desktop. Click "Manage" -> "Device Manager" -> "Ports", you can see similar display as "SCI USB2Serial (COM6)".

d. Click "Settings->Communication Parameters" in CQCS3 software interface. Select the corresponding port in "Serial Port".

For wallpaper color consistency & quality control (including solid-color, printed, textured, and embossed wallpapers), these 3nh spectrophotometers deliver optimal performance:


1. TS8560 Benchtop (Lab & R&D – Best Accuracy)

  • d/8° integrating sphere, SCI/SCE dual mode

  • ΔE*ab ≤ 0.01 (repeatability), IIA ≤ 0.1

  • Multi-apertures (Φ3/8/15/25mm) — ideal for large patterned wallpapers

  • UV control (for optical brighteners in paper)

  • Best for: Lab formulation, color standardization, batch-to-batch consistency

  • TS8560 Benchtop instrument


2. TS7700 Portable (Production & Field)

  • d/8° (SCI/SCE), ΔE*ab ≤ 0.02

  • Handheld, fast, non-destructive

  • Large aperture (Φ20mm) averages out texture/pattern unevenness

  • Best for: Production line checks, warehouse incoming inspection, on-site matching

  • TS7700 Portable spectrophotometer instrument

3. PS2080 Portable (Textured/Patterned Wallpapers)

  • d/8°, interchangeable apertures (Φ4/8mm + 1×3mm)

  • High stability for rough/embossed surfaces

  • UV included for fluorescent inks/papers

  • Best for: Complex printed, textured, or metallic-effect wallpapers

  • PS2080 Portable spectrophotometer

4. NS800 (Cost-Effective Routine QC)

  • 45/0 geometry, ΔE*ab ≤ 0.04

  • Touchscreen, easy operation

  • Best for: Uniform solid-color wallpapers, basic production QC

  • NS800 Hand Held Spectrophotometer

Short Recommendation

  • Top lab precision: TS8560

  • Best portable production: TS7700

  • Best for textured/patterned: PS2080

  • Economical routine QC: NS800

All ensure stable, repeatable color measurement for wallpaper rolls, panels, and printed patterns.


Spectrophotometers can only measure haze if it has haze measuring capabilities, as many measure color and transmittance.
