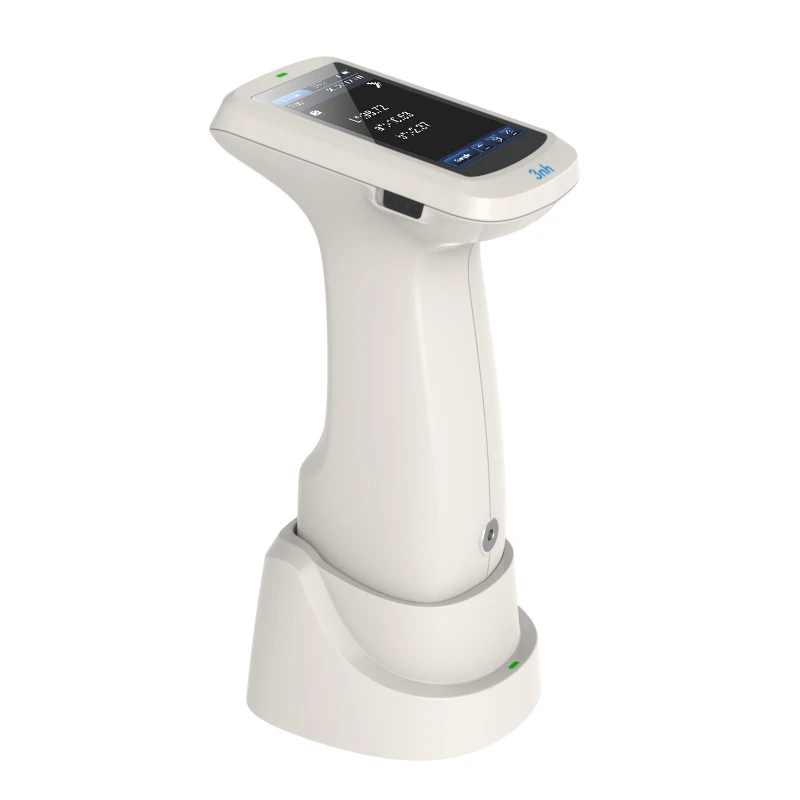

PS410 Spectrophotometer

PS410 Spectrophotometer Instructions Operating Manual PS410 Spectrophotometer PDF
This PS410 Spectrophotometer Instrument are Certified with
certify
1 Years Warranty (Additional support period of 3 years)

The 3nh PS410 is a mid-range spectrophotometer balancing flexibility and practicality. It features a 6-aperture multi-configuration design suitable for samples of various sizes, and is equipped with SCI/SCE dual-mode measurement to reduce interference from surface textures.It is widely used for batch quality control in plastics & electronics, printing, ceramics and other industries.

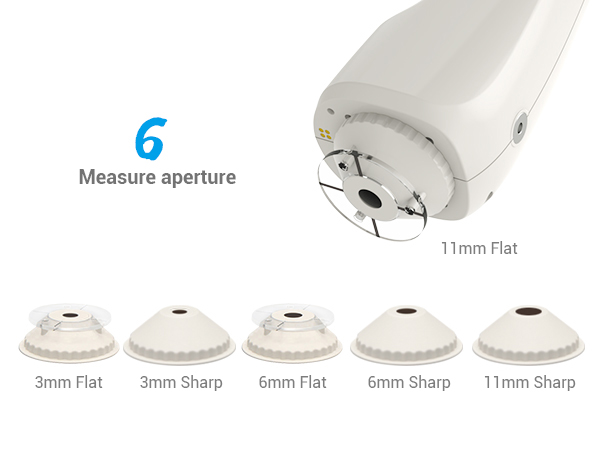

1. Full-Scene Adaptability with 6 Apertures

Equipped with 6 measurement apertures: 3mm, 6mm, 11mm (flat + pointed tip for each), ideal for samples from micro-sized parts to regular workpieces of various shapes.

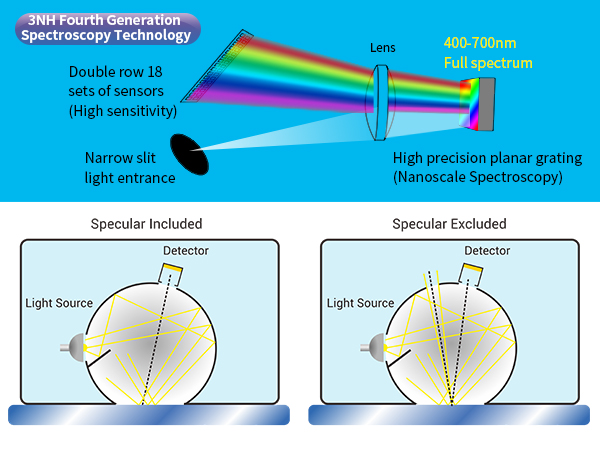

2. High-Precision Measurement

D/8 SCI/SCE Technology: Supports separate and simultaneous SCI/SCE measurement in approx. 1 second, reducing texture interference and capturing true color.

Full-Spectrum LED Light Source: Uniform spectrum from 400-700 nm, eliminating spectral missing errors.

High-Performance Hardware: Dual-array silicon photodiode sensor (dual-row 18 groups) + Φ40 mm large integrating sphere + nano-integrated optical elements for accurate color acquisition.

Dual Optical Path + Proprietary Algorithm: Strong anti-interference performance.Repeatability: ΔEab ≤ 0.025Inter-instrument agreement: ΔEab ≤ 0.4Ensures stable data across multiple instruments for precise color matching and transmission.

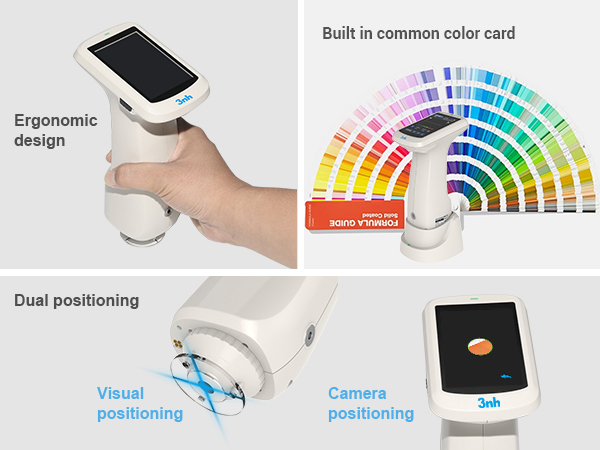

3. Efficient & User-Friendly Operation

Positioning Stabilizer: Accurately locks the measurement area and avoids deviation.

Built-in HD Camera: Real-time viewing for precise targeting, greatly improving batch inspection efficiency.

Contact Auto-Calibration: Intelligent calibration base maintains stable performance with minimal manual operation.

Smart Color Card Matching: Quickly matches color codes to save time in production color verification.

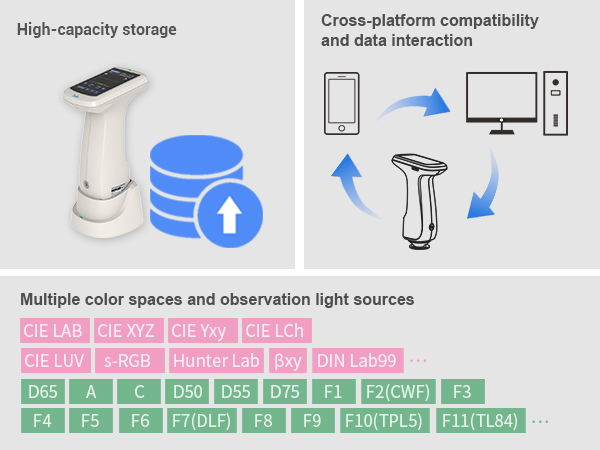

4. Enterprise-Grade Data Management

Comprehensive Color Indices: Supports 30+ light sources and 40+ measurement indexes, including spectral data, color values, color difference, color simulation, etc.

Large Storage: 500 standard samples and 10,000 test samples.

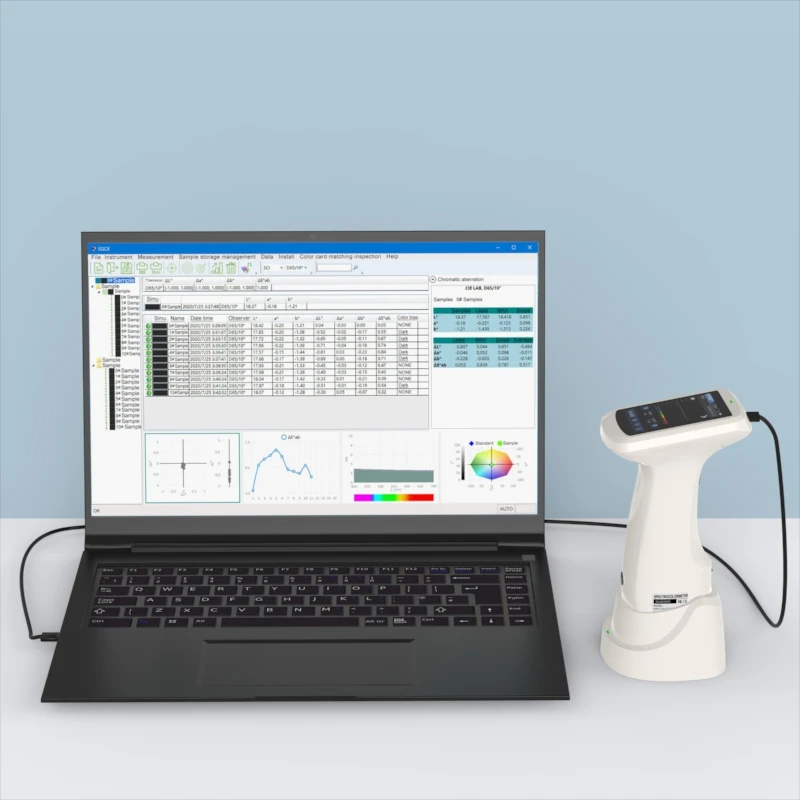

Multi-Device Connectivity: USB, Bluetooth; compatible with Android, iOS, Windows, WeChat Mini Program, HarmonyOS for data sharing, remote management and quality traceability.




Model PS410 Spectrophotometer
Illumination D/8 (Diffuse / 8°), SCI/SCE, complying with CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7
Features Dual silicon photodiode array; built-in electronic color card. For color quality control in plastics, electronics, paint, ink, textile, printing, ceramics, etc.
Light Source Combined full-spectrum LED
Integrating Sphere Φ40mm
Spectroscopy Nano-integrated spectral device
Sensor Silicon photodiode array (dual-row 18 groups)
Wavelength Range 400-700nm
Measurement Apertures 6 apertures: 3mm flat + 3mm tip + 6mm flat + 6mm tip + 11mm flat + 11mm tip
Measurement Mode SCI & SCE simultaneous measurement
Color Spaces CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99
Color Difference Formulas ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00,DINΔE99,ΔE(Hunter)
Other Indices Spectral Reflectance, WI, YI, Metamerism Index MI, Color Fastness, Strength, Opacity, 555 Tone, Munsell, Blackness, Color Density CMYK, Tint
Observer 2°/10°
Light Sources D65,A,B,C,D50,D55, D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF), F8,F9,F10(TPL5),F11(TL84), F12(TL83/U30),U35,NBF,ID50,ID65 ,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5, LED-BH1,LED-RGB1,LED-V1,LED-V2
Display Spectrum, color data, ΔE, pass/fail, color simulation, color tendency
Measurement Time Approx. 1 s
Repeatability ΔE*ab ≤ 0.025; Reflectance SD ≤ 0.1% (400-700 nm ≤ 0.2%)
Inter-Instrument Agreement MAV/SCI,ΔE*ab ≤ 0.4 (BCRA Series II 12 tiles)
Display Precision 0.01
Reflectance Range 0-200%
Reflectance Resolution 0.01%
Measuring Mode Single, Average (2-99 times)
Positioning Stabilizer + Camera positioning
Calibration Contact white calibration
Dimensions 120*75*207mm
Weight 367 g (excl. calibration base)
Battery 3.7 V 3200 mAh Li-ion, up to 8000 measurements in 8 hours
Light Source Life >1.2 million measurements in 10 years
Screen 3.5-inch TFT capacitive touch
Interface USB,Bluetooth
Storage 500 standards, 10,000 samples; APP/PC cloud storage
Software Android, iOS, Windows, WeChat Mini Program, HarmonyOS
Language Simplified Chinese, English, Traditional Chinese
Operating Environment 0-40°C, 0-85%RH (non-condensing), altitude <2000 m
Storage Environment -20-50°C, 0-85%RH (non-condensing)
Accuracy Class 1 metrology certified
Standard Accessories Power adapter, USB cable, manual, QC software, white calibration box, protective cover, wrist strap, apertures
Optional Accessories Mini printer, powder test kit
Note Specifications subject to change without prior notice



Our Valued Clients

  • infieon
  • Vilnius University
  • university mississippi
  • Lubrizol
  • laboratoire de chimie bacterienne
  • Griffith UNIVERSITY
  • BASF Plastic Company
  • University of Connecticut

FAQs About  Spectrocolorimeter

Colorimeters have fixed wavelength filters and LEDs; it is less precise and simpler. Monochromators are applied to spectrophotometers, which scan a spectrum of wavelengths. Giving more detailed spectral information. Spectrophotometers are more sensitive and flexible in complicated analyses.


The various colors can be measured by the way a surface reflects, absorbs, or transmits light at different wavelengths. These responses may be measured using instruments such as colorimeters or spectrophotometers to give numeric values in a standardized color space such as L *a*b*.


A Spectrophotometer color measuring device objectively determines the color of a surface. It is used wherever accurate color matching, reproducibility or deviation control is needed – for example in quality assurance, product development or incoming goods inspection.

Spectrophotometer color measuring devices primarily perform three key tasks:

Capture color information: They detect light reflected, transmitted, or emitted by a sample using optical sensors.
Quantify color data: They convert the captured optical signals into standardized numerical values, such as RGB, CMYK, or CIELAB coordinates.
Compare color consistency: They compare the measured color data of a sample against a target or standard to assess color accuracy and uniformity.


A colorimeter measures the amount of light and the wavelength that is absorbed by a solution. It is a sign that colored compounds are present and the level of their concentration. It is applied in the laboratory and industry to check the concentrations of chemicals, the color of products, and purity.


A colorimeter is used to measure the intensity of color of a solution by measuring its absorbance at selected wavelengths of light. It is widely applied in chemistry, food, pharmaceuticals, and quality control to determine concentration, track color changes, or product uniformity.
