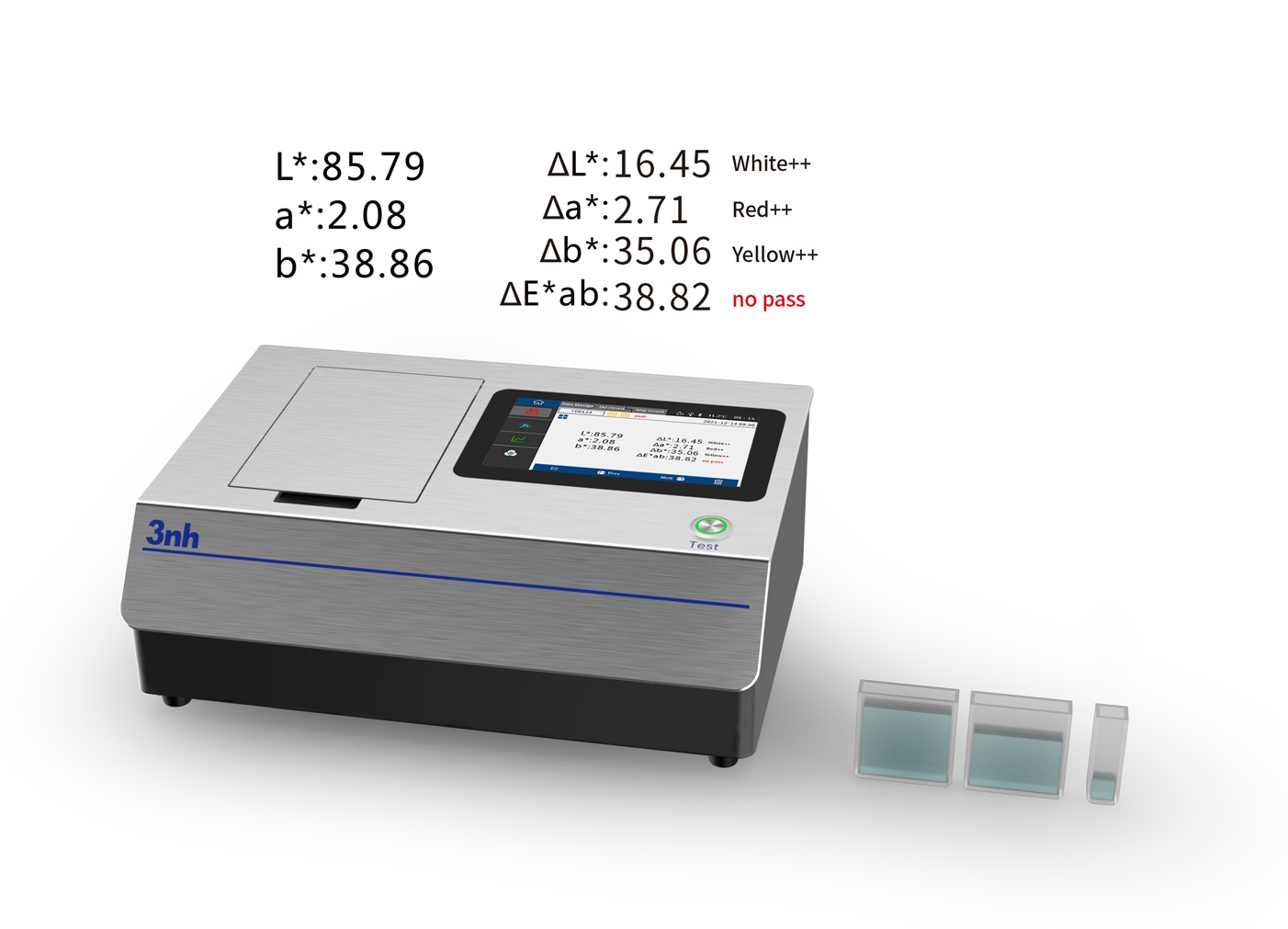

TS4020 Liquid Spectrophotometer

Professional Liquid Spectrophotometer Instrument

3nh liquid spectrophotometer is a professional instrument designed for analyzing liquid samples' optical properties. It accurately measures parameters like absorbance, transmittance, and color values across a broad wavelength range, based on the Lambert-Beer law.


Key Highlights

  • User-friendly Operation

  • Multiple Measurement Modes

  • Inter - instrument Error Control (ΔE * AB≤0.2)

  • Chromaticity value: within ΔE*ab 0.01

  • Reliable data support for quality control and research

  • Application in chemical analysis, pharmaceutical testing, food safety, and environmental monitoring

TS4020 Liquid Spectrophotometer Instructions Operating Manual TS4020 Liquid Spectrophotometer PDF
This TS4020 Instrument are Certified with
certify
1 Years Warranty (Additional support period of 3 years)

This practical benchtop liquid spectrophotometer with sleek design by 3nh offers precise and reliable measurements: with the proven spectrophotometry principle, the TS4020 provides color measurement and quality control of pharmaceutical products, chemicals, and petrochemicals.

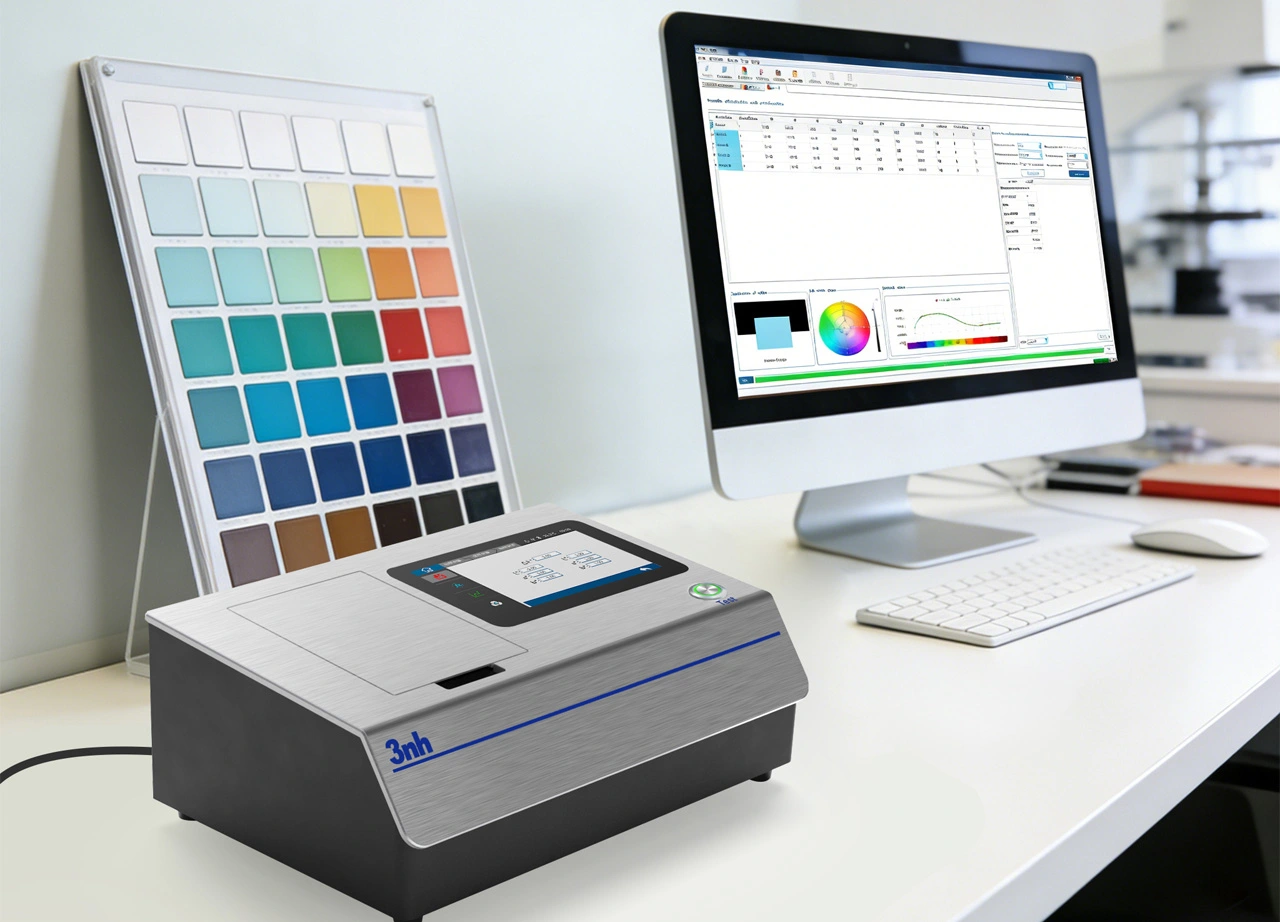

3nh TS4020 liquid spectrophotometer for color measurement



The TS4020 liquid spectrophotometer is a high-precision color analysis tool designed specifically for liquid chromaticity measurement using innovative core technology by 3nh. Adopting a D/0 optical structure, equipped with a full band LED light source and high-performance testing system, it provides a variety of chromaticity indicators, including transmittance, chromaticity, color difference, platinum cobalt index, Gardner, Saybolt index, petroleum color code, pharmacopoeia chromaticity, etc. It supports micro transmission measurement and has fast measurement speed. Widely used for chromaticity measurement needs in fields such as chemical industry, food and beverage, petrochemical industry, pharmaceutical industry, etc.




Instrument Features of TS4020 Liquid spectrophotometer:

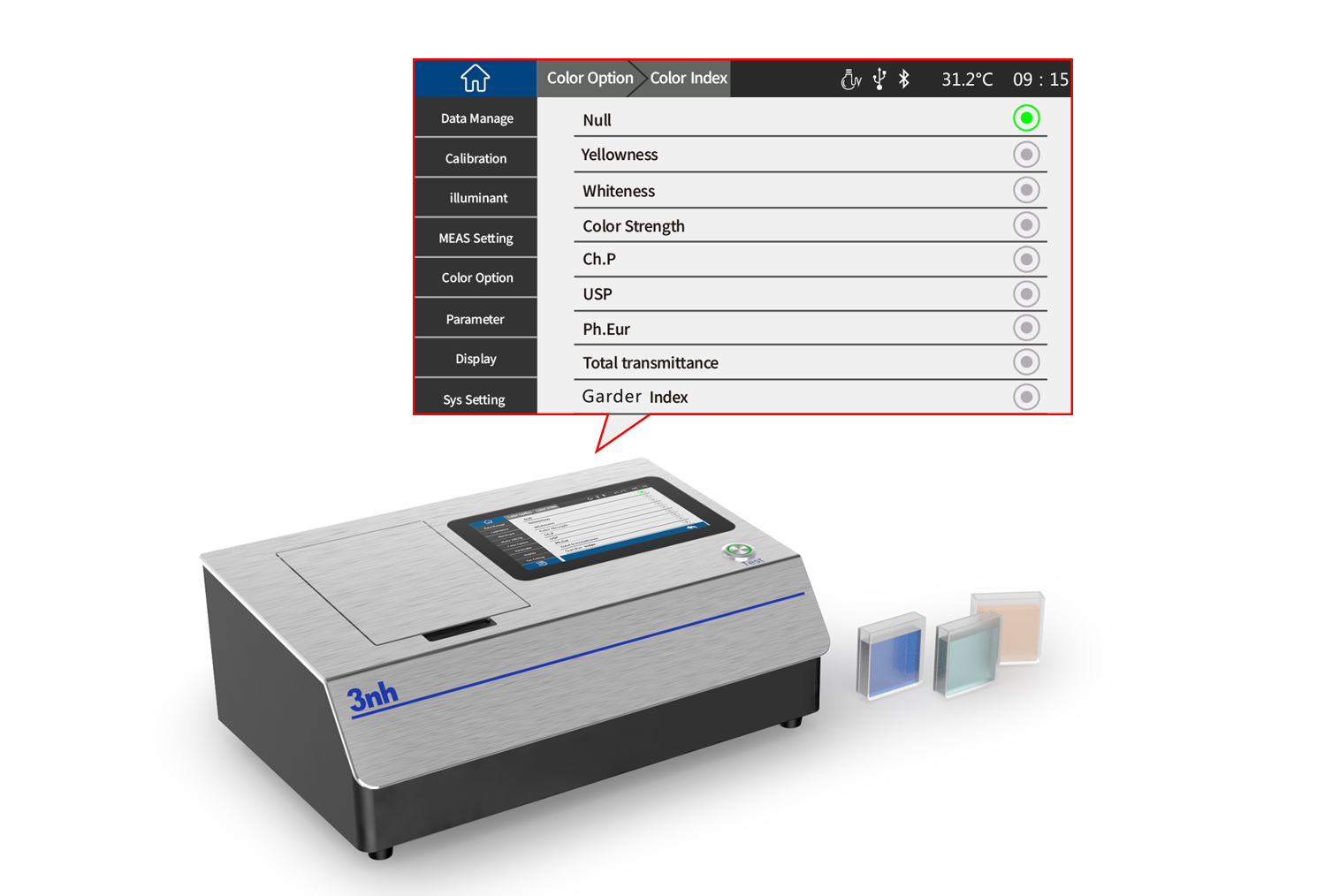

Rich chromaticity indicators

In addition to commonly used color indicators, we can also provide color indicators such as transmittance, petroleum color code (ASTM D1500), platinum cobalt index, Gardner index, Saybolt index, pharmacopoeia (Chinese Pharmacopoeia, European Pharmacopoeia, United States Pharmacopoeia), EBC (beer color), ICUMSA Color (sugar color), etc., to meet the diverse industry needs.

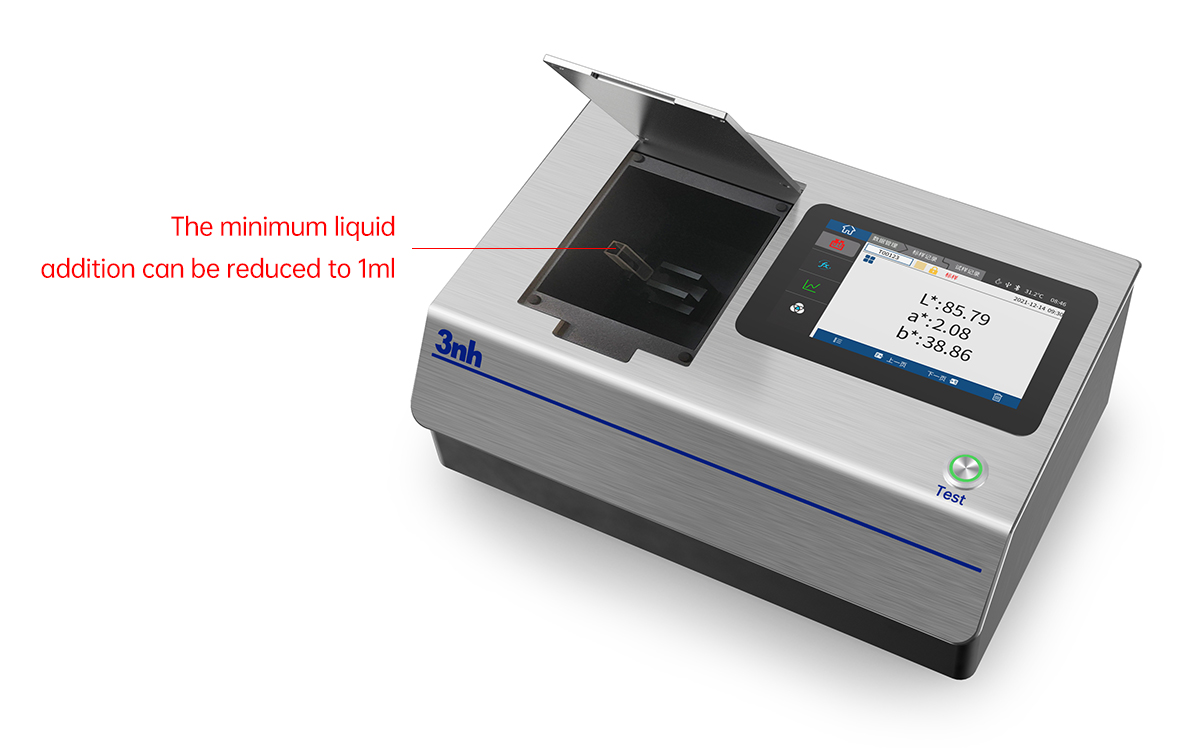

Support micro transmission measurement

By adopting more precise optical design, the transmission direction of light can be accurately controlled, and the minimum liquid addition can be reduced to 1ml, achieving micro transmission measurement.

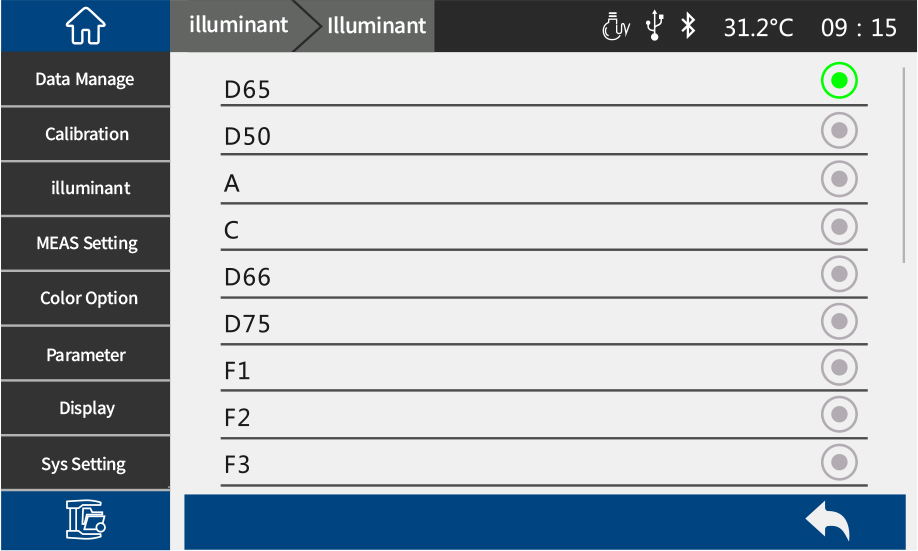

Multivariate light source simulation


Built in a series of standard light sources recognized by the International Commission on Illumination to ensure accurate color measurement of your product under different light sources.

4_ Multivariate light source simulation.jpg


Excellent repeatability and inter errors

The repeatability spectral transmittance is within 0.05%, the chromaticity value is within 0.01, and the inter errors is within 0.2, ensuring high consistency of measurement results between multiple devices and providing quality control support for large-scale production.

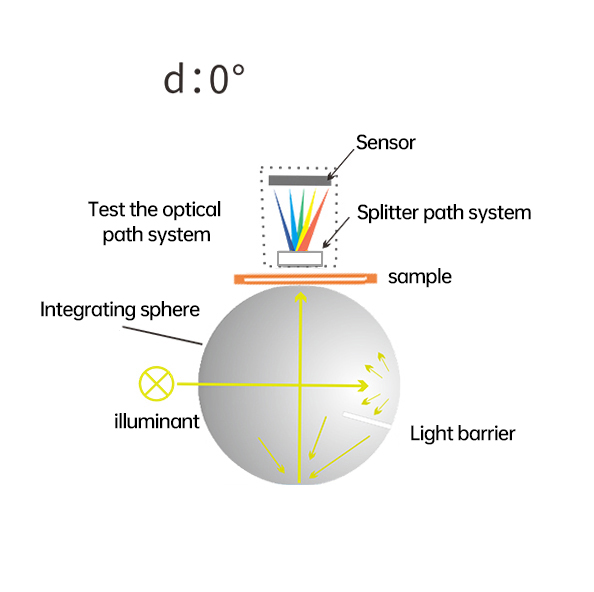

D/0 Geometric Optical Structure


D/0 geometric optical structure can provide more comprehensive chromatic analysis, ensuring that your product meets quality standards: ASTM D1003/1044, CIE No.15, GB/T 3978,GB 2893,GB/T 18833,ASTM E308, DIN5033 Teil7





TS4020_6_ D0_Geometric_Optical_Structure.jpg

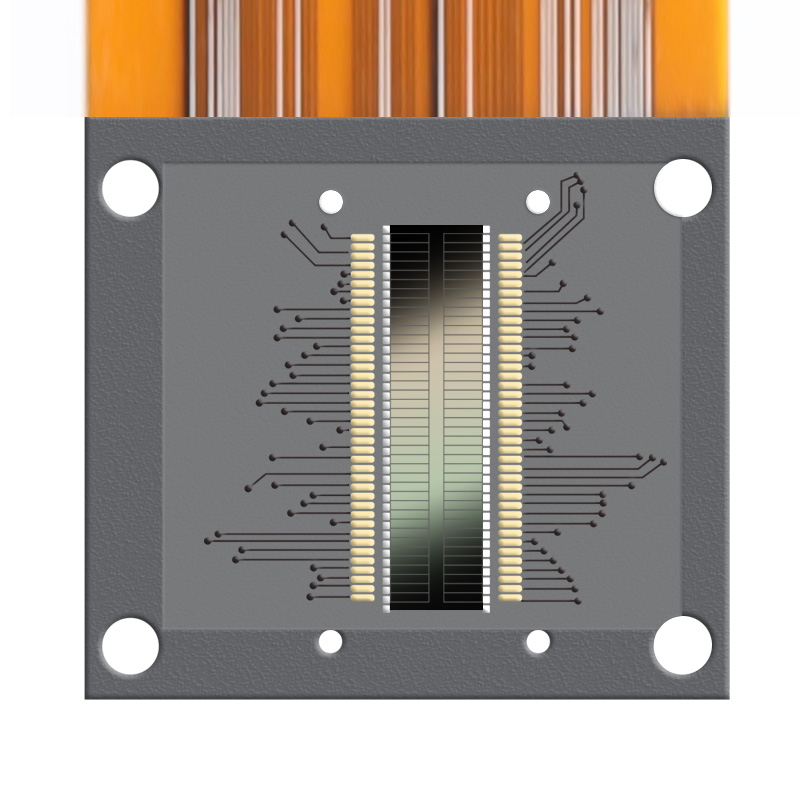

High performance dual array sensors


Equipped with high-performance silicon photodiode dual 40 array sensors, it can ensure measurement speed and accuracy, and improve work efficiency.




TS4020_8_ High_performance_dual_array_sensors.jpg

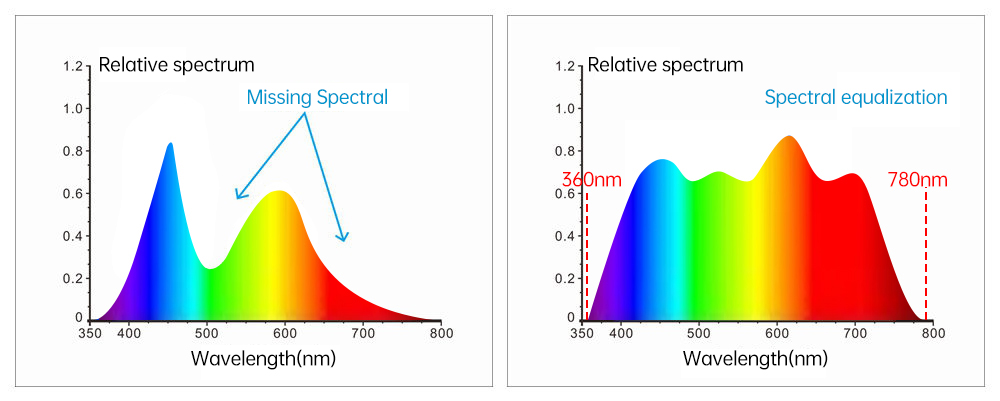

Combination full spectrum LED light source

The use of a combined full spectrum LED light source as the illumination source covers the wavelength range of 360-780nm, ensuring high stability of the test.

ts4020_7_ Combination_full_spectrum_LED_light_source.jpg

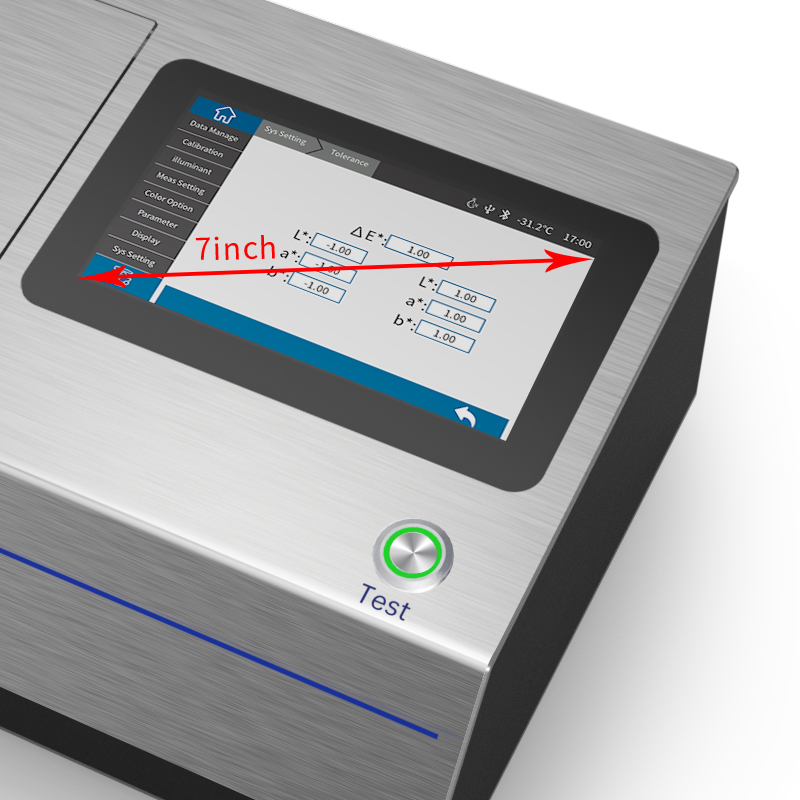

Powerful display and interaction capabilities

Equipped with a 7-inch true color capacitive touch screen and large screen navigation operation, it can display various chromaticity indicators such as spectra, color difference values/graphs, color simulation, and color offset, and achieve fast and accurate color analysis and judgment.

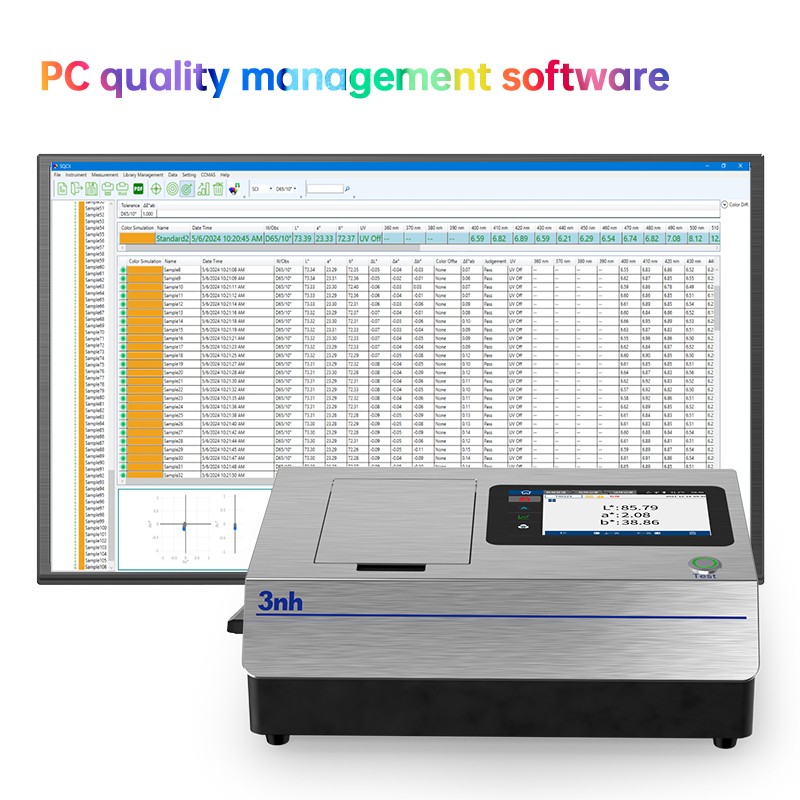

PC quality management software

Provide powerful analysis software, suitable for quality management in various industries, generate test reports based on user test results, and facilitate customer customization and management work.



Talk to a Color Solution Specialist



Specifications of TS4020 Liquid spectrophotometer:


ModelTS4020 Liquid spectrophotometer
IlluminationTransmission: D/0 (diffuse illumination, 0° Viewing); Approximately CIE15 stipulates 0/0 (parallel light illumination/0 degree reception); Comply with standards: ASTM D1003/1044, CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ASTM E308, DIN5033 Teil7
CharacteristicThe national standard pharmacopoeia color measurement, glass processing, plastic processing, film, display screen processing, packaging industry, liquid medicine analysis and other industries are widely used in color analysis and transmittance testing, supporting trace transmittance measurement.
Integrating sphere sizeΦ 40 mm
Light sourceCombined full spectrum LED light source
Spectral methodPlat grating spectrometer
SensorSilicon photodiode array (dual row 40 groups)
Wavelength range360 ~780 nm
Wavelength interval10nm
Half bandwidth5nm
Transmittance range0~200%
Measuring apertureTransmission: Φ 10 mm
Color SpaceCIE LAB, XYZ, Yxy, LCh, CIE LUV, Musell, s-RGB, HunterLab, βxy, DIN Lab99 ,CMYK ( the above parts are realized by the host computer)
Color difference formulaΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter),ΔE*CH
Other color indexesTransmittance T, WI (ASTM E313, CIE/ISO, AATCC, Hunter, Taube, Berger, Stensby), YI (ASTM D1925, ASTM E313), TI (ASTM E313, CIE/ISO), Metamerism index Mt, Staining Fastness,Color fastness,absorbance, APHA / Hazen / Pt-Co (Platinum-Cobalt Index), Gardner Index, Iron-Cobalt Index, Saybolt (Saybolt Index), ASTM D1500 color scale, Pharmacopoeia (Chinese Pharmacopoeia, European Pharmacopoeia, United States Pharmacopoeia), EBC (beer color), ICUMSA Color (sugar color)
Observer Angle2°/10°
IlluminantD65,A,C,D50,D55,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,DLF,TL83,TL84,TPL5,U30,B,U35,NBF,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2,LED-C2,LED-C3,LED-C5 (a total of 41 light sources, the above part is realized by the host computer)
Displayed DataSpectrum/values, sample chromaticity value, color difference value/graph, chromaticity diagram, color simulation, pass/fail results, color offset
Measuring timeFast mode: about 0.8s
RepeatabilitySpectral transmittance: standard deviation within 0.05% ( 400 ~ 700nm : within 0.04%); Chromaticity value: within ΔE*ab 0.01 (after preheating correction, measured at intervals of 5S);
Inter-instrument ErrorΔE*ab within 0.2 (average value of 5 standard transmission color plates measured by the original manufacturer)
SizeLength x width x height = 370 x 300 x 200 mm
WeightAbout 9.6kg
Power supply modePowered by DC 24V/3A power adapter
Illuminant Life SpanMore than 3 million measurements in 5 years
DisplayTFT true color 7-inch, capacitive touch screen
InterfaceUSB, print serial port , Bluetooth
Data Storage1000 Standards, 10000 test samples
Audit trailSupport
Special FeaturesIntelligent zero calibration
LanguageSimplified Chinese, Traditional Chinese, English
Operating temperature range0~40°C (32~104°F)
Storage temperature range-20~50°C (-4~122°F)
Standard accessoriesPower adapter, manual, quality management software (download from official website), data cable, transmission blackboard, transmission test fixture assembly, 10mm cuvette, 50mm cuvette, micropore (4mm) transmission test fixture assembly
Optional accessoriesMicro printer, 30mm cuvette, 100mm cuvette
Note:The technical parameters are for reference only, please refer to the actual products sold.



Our Valued Clients

  • Clients gsk logo
  • customer shakti
  • cello logo
  • customer cubic logo
  • customer cipla
  • partner axa
  • vogels logo vector
  • customer nesling logo

FAQs About TS4020 Benchtop Spectrophotometers

SCI&SCE are two method in the color measurement. SCI means Specular Component Include,SCE means Specular Component Exclude.

Under the method of SCE, only test diffuse refection and exclude specular reflection. In that way, the test result is similar to object color was observed by human eyes.

Under the method SCI, both the diffuse refection and specular reflection will be included. In that way, the value about the color is more objective. It will not effect by the environment condition.

When we choose the instrument, those elements should be taking into consideration.


Colorimetry is a method that applies color intensity to ascertain the chemical concentrations. It is founded on Beer-Lambert Law, whereby the absorbance at a given wavelength is proportional to the concentration. It is popular in environmental and biochemical testing.

A benchtop spectrophotometer is not universally better—it outperforms portable units in precision and lab testing, while portable models win for on-site flexibility. Which one is better depends entirely on your testing scenarios, accuracy requirements and workflow.


Benchtop Spectrophotometer Advantages

  • Higher measurement accuracy & repeatability, excellent inter-instrument agreement

  • Supports full-spectrum analysis, more geometric optical designs

  • Larger testing aperture, compatible with curved, textured and bulk samples

  • Ideal for laboratory QC, R&D, formula matching and standard color calibration

  • Stable performance, less affected by external light and environment


Portable Spectrophotometer Advantages

  • Compact, lightweight, test anywhere anytime (production line, warehouse, on-site inspection)

  • Fast one-click measurement, no fixed power and lab space required

  • Perfect for incoming material inspection, on-line production spot check, field color comparison

  • Lower cost and easier to operate for frontline workers


Which One Should You Choose?


Choose benchtop if you need:

Lab R&D, high-precision color grading, standard sample database establishment, strict quality control for cosmetics, plastics, textiles and food.


Choose portable if you need:

On-site rapid detection, production line mobile sampling, outdoor and on-location color measurement.


Threenh Technology with excellent after sale service, Generally, Our Spectrophotometer instrument warranty is one years(Additional support period of 3 years). Within the warranty period, we can offer technique support and parts to parts change, necessarily, our engineers may go to your place for better support. Our instrument have professional After-sales Dept, if you have any technical problem or question with our goods welcome to contact us.

For premier ink quality control (CMYK, spot colors, printing density, formulation & press-side QC), these 3nh spectrophotometers / spectrodensitometers stand above the rest:


1. YD5050 / YD5010 (Best for Printing & Ink Press QC)

  • 45/0 ring illumination, ISO 5-4 / ISO 13655 (M0/M1/M2/M3)

  • Measures density (Status T/E/A/I), dot gain, trap, print contrast

  • ΔE*ab ≤ 0.03, density ≤ 0.01D

  • Small apertures (Φ2/4/8mm) for fine print & ink dots

  • Ideal: packaging, label, gravure, flexo, CMYK/spot color control

    YD5050


2. TS8560 Benchtop (Lab Formulation & Highest Accuracy)

  • d/8° sphere, SCI/SCE, UV control

  • ΔE*ab ≤ 0.01 (repeatability), IIA ≤ 0.1

  • Multi-apertures (Φ3/8/15/25mm)

  • Best for: R&D, ink formulation, batch consistency, fluorescent inks

    TS8560_Benchtop_colorimeter


3. TS7700 Portable (Production & Field Matching)

  • d/8° (SCI/SCE), ΔE*ab ≤ 0.02

  • Fast, handheld, large Φ20mm aperture

  • Best for: press-side checks, warehouse incoming ink, on-site matching

    TS7700_Portable_colorimeter
    3nh TS7700

4. YS6060 Benchtop (High-End Lab & Transmissive Inks)

  • 360–780nm, UV adjustable, dual CMOS

  • Reflection & transmission modes

  • Multi-aperture (Φ4/8/15/25.4mm)

  • Best for: high-precision lab R&D, transparent/fluorescent inks

    YS6060_Benchtop_colorimeter


Short Recommendation

  • Best press-side / print QC: YD5050

  • Top lab formulation: TS8560

  • Best portable production: TS7700

  • High-end lab R&D: YS6060

All ensure ultra-precise color, density & consistency for offset, flexo, gravure, screen-printing & packaging inks.
