YS4510 Plus 45/0 spectrophotometer

Hand-held 45/0 High-precision Spectrophotometer

YS4510 Plus 45/0 spectrophotometer is characterized by wide wavelength range, powerful functions, high sensitivity, ease of use, simple structure and acceptable appearance, especially the application of 3.5inch large-screen LCD, 45/0 geometric optical structure, concave grating spectrometry, which makes the instrument uniquely advantageous among the products of the same grade. Equipped with Φ8mm and Φ4mm dual measuring apertures, used for traffic signs and accurate color measurement and quality control in various industries.


Key Highlights

  • Optional aperture 2mm/4mm/8mm

  • 3.5-inch TFT color LCD,Capacitive Touch Screen

  • Sample 20000 Pcs Data memory

  • SCI and SCE

  • Repeatability ΔE*ab 0.05; Inter-instrument Error ΔE*ab 0.2

  • Color management software

YS4510 Plus 45/0 spectrophotometer Instructions Operating Manual YS4510 Plus 45/0 spectrophotometer PDF
This YS4510 Instrument are Certified with
certify
1 Years Warranty (Additional support period of 3 years)

YS4510 Plus spectrophotometer with 45/0 geometrical optics structure( 45 ring-shaped illumination ,vertical viewing),  comply with C I E N o . 1 5. Adopting concave grating light splitting method. accurately measure the reflectivity and various chromaticity data of samples. users can customize the measurement aperture(Φ 8 / Φ 4 / Φ 2 m m) according to the sample measuring demands, meet the industry accurate color measurement and quality control.


PRODUCT FEATURES

1.Perfect combination of beautiful appearance and the human body mechanics structural design;

2.45/0 geometrical optics, conforms with CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724/1,ASTM E1164,DIN5033 Teil7，GB 2893、GB/T 18833;

3.Use long life and low power consumption combined LED light source;

4.Optional aperture2mm/4mm/8mm, support both SCI and SCE at the same time;

5. Measure sample spectra, accurate Lab data , can be used in color matching and accurate color transmission;

6.High electronic hardware configuration: 3.5-inch TFT color LCD,Capacitive Touch Screen, concave grating, 256 Iimage Element Double Arrays CMOS Image Sensor;

7.USB port, widely useful;

8.Super stain-resistant and stable standard white calibration plate;

9.Large capacity storage space, over 20,000 measurement data;

10.Two standard observer angles, a variety of illuminant, a variety of color indexes, conforms with a variety of standard colorimetric data, meet a variety of customers' demand for color measurement;

11.PC software has a powerful function extension.

12.Built - in multi - description of standard samples and specific traffic sign color gamut, especially suitable for traffic sign brightness factor and color performance.

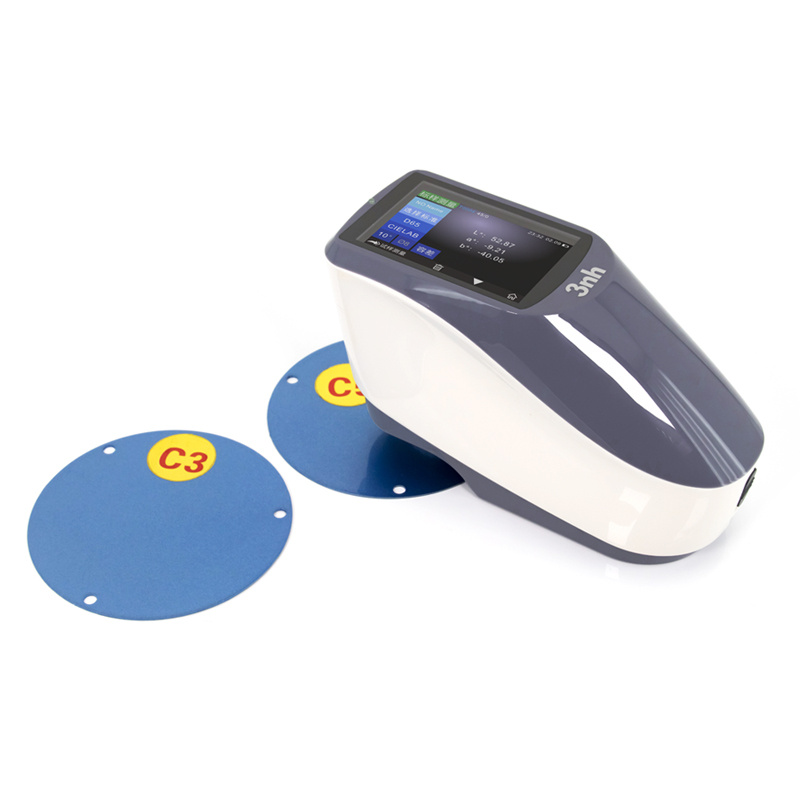

YS4510 Plus spectrophotometer color measurement


Model YS4510 Plus 45/0 Spectrophotometer
Illumination/Observation system 45/0(45 ring-shaped illumination, vertical  viewing);
Comply with CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7,GB 2893、GB/T 18833
Features Common spectrophotometer with customized one aperture, like 8mm aperture and apply in paints, inks, textiles, garments, printing and dyeing, printing etc industries for color transfer and quality control.
Integrating Sphere Size Φ48mm
Light Source Combined LED Light
Spectral separation device Concave Grating
Detector 256 Image Element Double Array CMOS Image Sensor
Wavelength Range 400~700nm
Wavelength Pitch 10nm
Half Bandwidth 10nm
Reflectance Range 0~200%
Measuring Aperture Customized One Aperture：MAV:Φ8mm/Φ10mm；SAV:Φ4mm/Φ5mm；SAV:Φ2mm/Φ3mm；
Color Space CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99 Munsell(C/2)
Color Difference Formula ΔE*ab,ΔE*uv,ΔE*94 ,ΔE*cmc(2:1),ΔE*cmc(1:1) ,ΔE*00, DINΔE99, ΔE(Hunter)
Other Colorimetric Index Spectrum Reflectance Rate, WI(ASTM E313-00,ASTM E313-73,CIE/ISO,AATCC,Hunter,TaubeBergerStensby), YI(ASTM D1925,ASTM E313-00,ASTM E313-73) Metamerism Index Mt， Staining Fastness, Color Fastness, Strength (dye strength, tinting strength), Opacity 8-degree Gloss, 555 Index，Blackness（My,dM）, Color Density CMYK(A,T,E,M), Tint(ASTM E313-00)，Munsell（Some functions are realized through the computer）
Observer Angle 2°/10°
Illuminant D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4，F5，F6,F7(DLF),F8,F9，F10(TPL5),F11(TL84),F12(TL83/U30),B,U35,NBF, ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2,LED-C2,LED-C3,LED-C5, Light source can be customized(a total of 41 kinds of light sources, some of which are realized through the host computer/APP)
Display Data Spectrogram/Values, Chromaticity Values, Color Difference Values/Graph, Pass/Fail Result, Color Offset
Measurement Time About 1.5s
Repeatability Spectral reflectance: MAV,Standard deviation within 0.1% (400 nm to 700 nm: within 0.2%)

Chromaticity value:MAV,within ΔE*ab 0.05( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument Error Within ΔE*ab 0.2 (Average for 12 BCRA Series II color tiles)
Measurement mode Single Measurement, Average Measurement(2-99)
Size(L*W*H) 184*77*105mm
Weight About 600g
Power source Li-ion battery. 5000 measurements within 8 hours
Illuminant Life Span 5 years, more than 3 million times measurements
Display 3.5-inch TFT color LCD, Capacitive Touch Screen
Interface USB,Bluetooth®5.0
Data memory Standard 500 Pcs, Sample 20000 Pcs
Language Chinese Simplified, Chinese Traditional, English, French, Portuguese, Russian, Spanish, Italian, German
Working Environment Temperature: 0~40℃; Humidity: 0~85% (No Condensation);altitude: less than 2000 m
Storage Environment Temperature: -20~50℃; Humidity: 0~85% (No Condensation)
Standard Accessory Power Adapter, USB Cable, Built-in li-ion battery, User Manual, software(download from the website)White and Black Calibration Board, Protective Cover.
Optional Accessory Micro Printer, Powder Test Box, Universal test components, Locating Plate
Notes: The specifications are subject to change without notice.


Our Valued Clients

  • customer cipla
  • vogels logo vector
  • 3NH customer atlas
  • 3nh customer cadbury
  • Client mohani logo
  • Clients honda logo
  • customer swaraj
  • vtech logo vector

FAQs About YS4510 Portable Spectrophotometers

SCI&SCE are two method in the color measurement. SCI means Specular Component Include,SCE means Specular Component Exclude.

Under the method of SCE, only test diffuse refection and exclude specular reflection. In that way, the test result is similar to object color was observed by human eyes.

Under the method SCI, both the diffuse refection and specular reflection will be included. In that way, the value about the color is more objective. It will not effect by the environment condition.

When we choose the instrument, those elements should be taking into consideration.


For premier ink quality control (CMYK, spot colors, printing density, formulation & press-side QC), these 3nh spectrophotometers / spectrodensitometers stand above the rest:


1. YD5050 / YD5010 (Best for Printing & Ink Press QC)

  • 45/0 ring illumination, ISO 5-4 / ISO 13655 (M0/M1/M2/M3)

  • Measures density (Status T/E/A/I), dot gain, trap, print contrast

  • ΔE*ab ≤ 0.03, density ≤ 0.01D

  • Small apertures (Φ2/4/8mm) for fine print & ink dots

  • Ideal: packaging, label, gravure, flexo, CMYK/spot color control

    YD5050


2. TS8560 Benchtop (Lab Formulation & Highest Accuracy)

  • d/8° sphere, SCI/SCE, UV control

  • ΔE*ab ≤ 0.01 (repeatability), IIA ≤ 0.1

  • Multi-apertures (Φ3/8/15/25mm)

  • Best for: R&D, ink formulation, batch consistency, fluorescent inks

    TS8560_Benchtop_colorimeter


3. TS7700 Portable (Production & Field Matching)

  • d/8° (SCI/SCE), ΔE*ab ≤ 0.02

  • Fast, handheld, large Φ20mm aperture

  • Best for: press-side checks, warehouse incoming ink, on-site matching

    TS7700_Portable_colorimeter
    3nh TS7700

4. YS6060 Benchtop (High-End Lab & Transmissive Inks)

  • 360–780nm, UV adjustable, dual CMOS

  • Reflection & transmission modes

  • Multi-aperture (Φ4/8/15/25.4mm)

  • Best for: high-precision lab R&D, transparent/fluorescent inks

    YS6060_Benchtop_colorimeter


Short Recommendation

  • Best press-side / print QC: YD5050

  • Top lab formulation: TS8560

  • Best portable production: TS7700

  • High-end lab R&D: YS6060

All ensure ultra-precise color, density & consistency for offset, flexo, gravure, screen-printing & packaging inks.


A spectrophotometer and colorimeter are certain instruments used by scientists to measure color by quantifying reflected or transmitted light. The results are presented in color spaces, such as L*a*b*, RGB, or XYZ. This enables the accuracy of comparison and tracking of the changes in color in chemical or material research.

Colorimeters is a color measurement device that are used to capture, communicate, and evaluate color. Colorimeters are more affordable, portable, and easier to use, making them a suitable choice for basic color measurement applications, ideal for quick and routine tests.

spectrophotometers offer higher precision and comprehensive data analysis, are better for research, development, and when dealing with complex or highly precise requirements. The biggest difference is in capability and usage. Spectrophotometers are incredibly powerful and can offer more in-depth color measurements than a colorimeter, such as spectral data.

Colorimeters are primarily used for color quality control, while spectrophotometers are used for analysis and formulation. You can choose the appropriate color measurement equipment according to your application needs.


Yes. We can supply OEM and make customized design for any specific application. Our MOQ for OEM and ODM service is 5 pcs for one model. We can not only offer standard machines, but also customized machines. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
